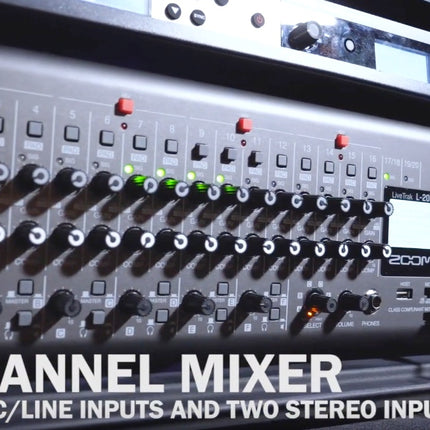

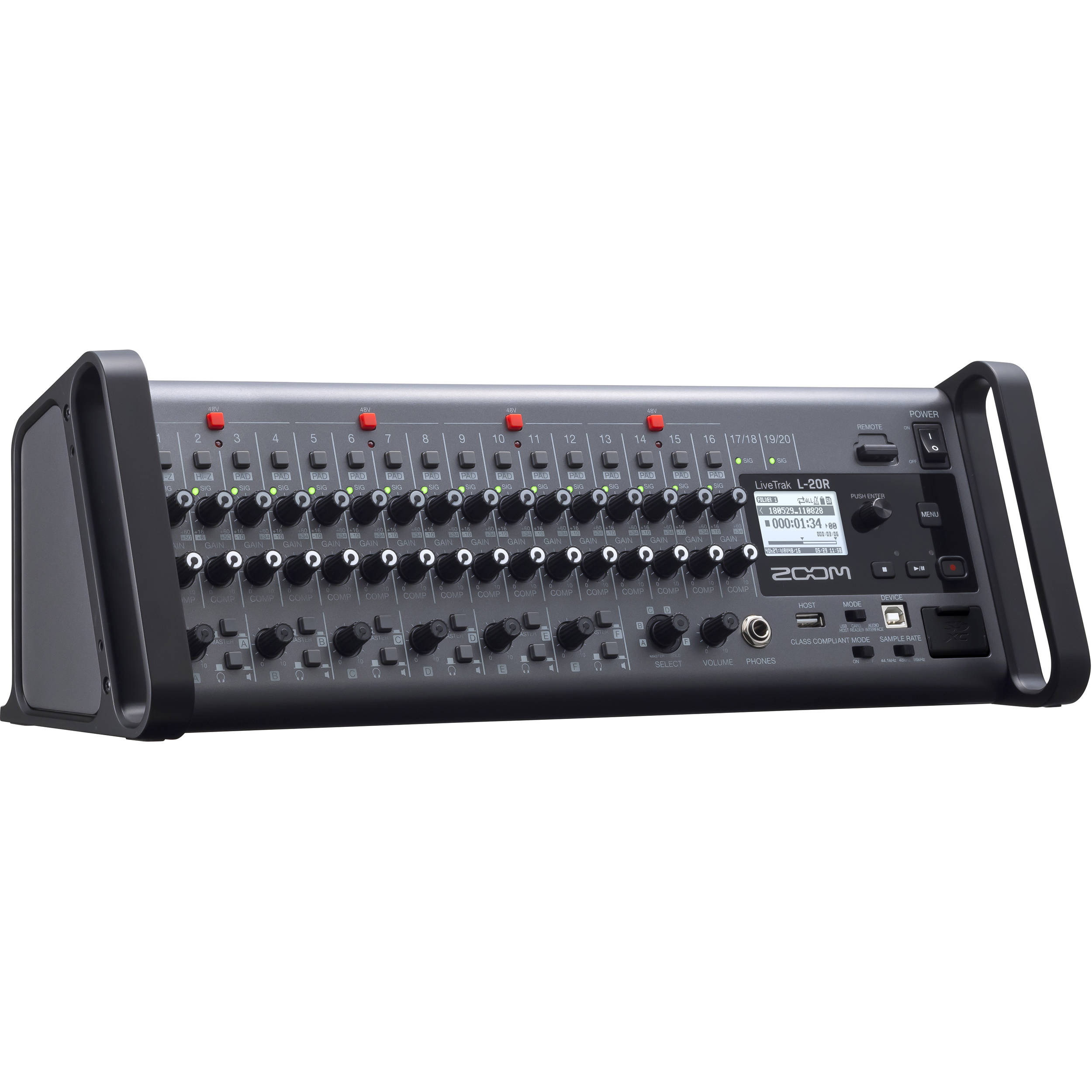

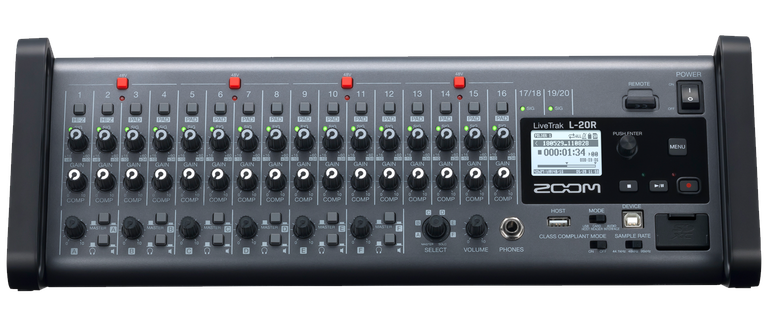

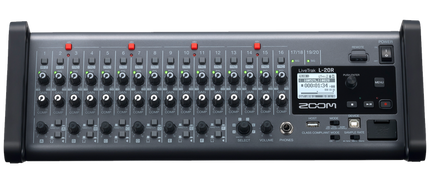

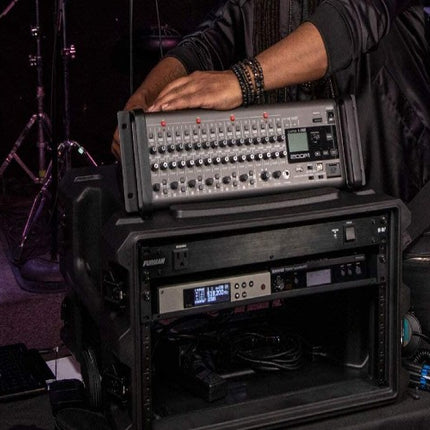

Zoom LiveTrak L20R - 20 Channel Rackmount Digital Mixer / Recorder (L-20R/ L 20R/ L 20/L20)

Description



Whether you want to capture a rehearsal, produce a quick demo, or create a great-sounding concert recording, Zoom’s LiveTrak L-20R makes it easy. It enables you to record up to 22 individual channels directly to an SD card, supplies you with custom headphone mixes for up to six band members, and delivers a polished live mix — complete with studio-quality effects. With the L-20R, you can finish your entire project in-the-box or transfer all 20 discrete tracks to your DAW for editing and mixing. Beyond that, you can use the L-20R as a rock-solid 22-in/4-out USB audio interface for your Mac, PC, or iOS device. What’s more, the LiveTrak L-20R boasts compatibility with Zoom’s Remote Mixer app, allowing an FOH engineer and six musicians to take command of their own mix via iPad.



What's included with the L-20R :

  • LiveTrak L-20R
  • AD-19 AC Adapter
  • BTA-1 Bluetooth Adapter
  • Rack Ears
  • Quick Guide





FEATURES

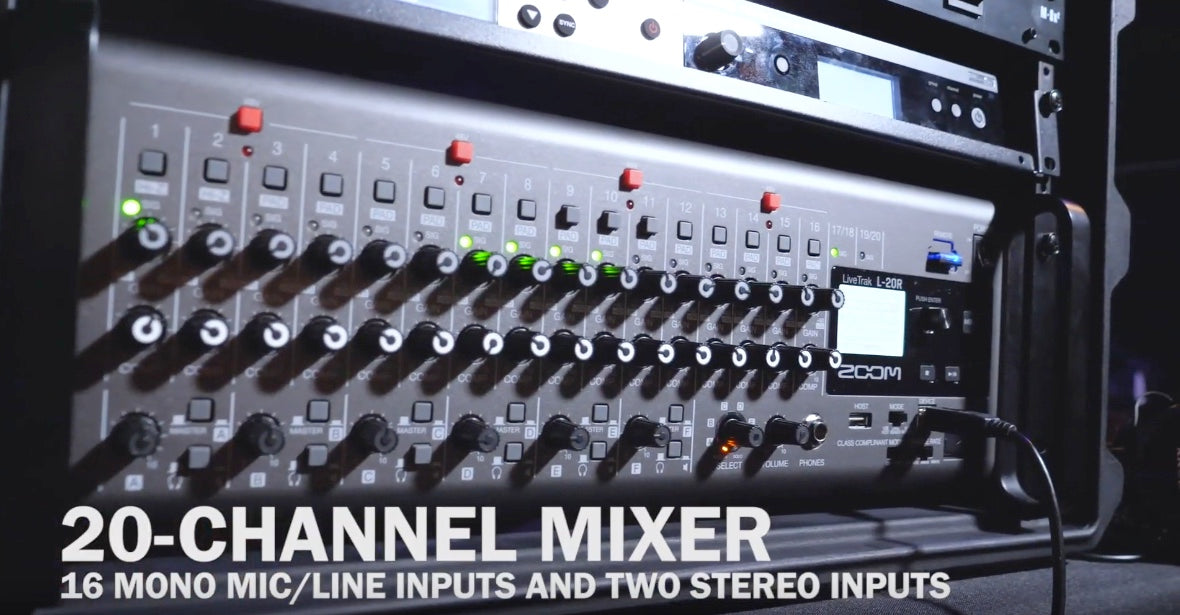

  • 20-channel rackmount digital mixer (16 mono/2 stereo)
  • 22-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)
  • 22-track 24-bit/96kHz recording directly to an SD card
  • Record up to 48kHz to a computer and an SD card simultaneously
  • Create customizable, savable headphone mixes for up to 6 band members
  • Complete your entire project on the mixer, or transfer all 22 discrete tracks to your DAW for editing and mixing

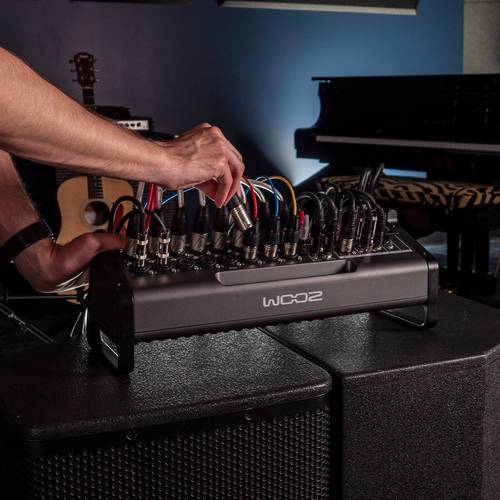

  • 16 combo jacks accommodate both XLR and 1/4" connectors
  • 16 great-sounding mic preamps with phantom power and +60dB of gain
  • Channels 1–2 offer hi-Z inputs for your electric guitar or bass
  • Channels 17/18 and 19/20 have TRS and RCA connectivity for keyboards and other audio devices
  • Each channel features a 3-band mid-parametric EQ and 20 built-in effects
  • Channels 1–16 include a dedicated compressor for controlling dynamics
  • Channels 3–16 have a -26dB pad for capturing loud sources
  • Clear 12-segment LED metering for keeping an eye on your levels
  • Save up to 9 scenes and recall your custom settings automatically
  • FOH engineer and 6 musicians can take command of their own mix via the Remote Mixer app for iPad





SPECIFICATIONS





  • Type:Rackmount Digital Mixer
  • Channels:20 (16 x mono, 2 x stereo)
  • Inputs - Mic Preamps:2 x XLR-1/4" combo (mic/line/Hi-Z), 14 x XLR-1/4" combo (mic/line)
  • Phantom Power:16 channels
  • Inputs - Line:2 x Dual RCA Stereo (line), 4 x 1/4" (2 x stereo line)
  • Outputs - Main:2 x XLR (master)
  • Aux Sends:6 x 1/4" (monitor out A-F)
  • Remote:1 x 1/4" (control footswitch)
  • USB:1 x Type B, 1 x Type A
  • Computer Connectivity:USB (22 x 4)
  • Bluetooth:BTA-1 Adapter (included)
  • Headphones:1 x 1/4"
  • A/D Resolution:24-bit/96kHz
  • EQ Bands:3-band EQ, Low Cut
  • Effects:20 x Effects; Reverb, Delay, Chorus
  • Signal Processing:Compression
  • Transport Controls:Yes
  • Storage:SDHC (max 32GB), SDXC (max 512GB)
  • Software:Remote Mixer app, L-20 Control iPad app
  • Rackmountable:Yes (rack ears included)
  • Power Source:12V DC external power supply (included)
  • Height:5.97"
  • Depth:6.22"
  • Width:17.24"
  • Weight:5.4 lbs.
