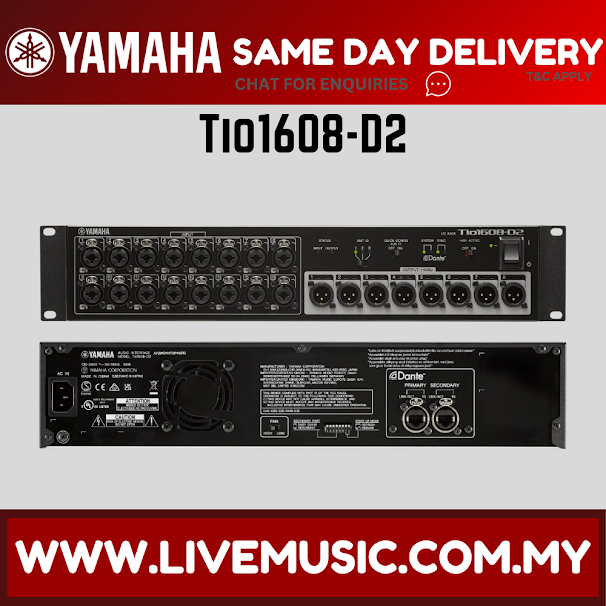

Yamaha Tio1608-D2 16-in/8-out Digital Stage Box with Dante (Tio1608 D2 Tio1608D2) Replacing Tio1608D

Description

SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

FOR STANDARD DELIVERY
Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

Contact : 0-1-6-5-2-0-1-0-6-6



The Yamaha Tio1608-D stage box provides 16 inputs and eight outputs for your TF series console, putting your I/O onstage where it's most convenient. Connect to your console with any standard Cat 5e LAN cable for high-quality, low-latency audio transfer. For more I/O, you can connect up to three Tio1608-D boxes onstage for 48 inputs and 24 outputs. And live sound engineers at Music Bliss love the ability to control the Tio1608-D preamplifiers directly from a TF series console. For a high-performance stage box solution, check out the Yamaha Tio1608-D.

FEATURES
  • Digital stage box for Yamaha TF series consoles
  • 16 high-quality mic preamps are controllable from your console
  • Connect up to 3 simultaneously for 48 inputs and 24 outputs
  • Requires NY64-D Dante interface card (sold separately)
  • Connects to TF series consoles via standard Cat 5e LAN cable (sold separately)
SPECIFICATIONS
  • Type:Digital Stage Box
  • Compatibility:Yamaha TF Mixers with Dante Cards
  • Channels:16 x 8
  • Inputs - Mic Preamps:16 x XLR-1/4" combo (mic/line)
  • Outputs - Main:8 x XLR (line +4dBu)
  • Data I/O:2 x EtherCon (primary, secondary)
  • Computer Connectivity:Ethernet Dante
  • Features:Connect multiple Tio Racks
  • Rackmountable:Yes
  • Power Source:Standard IEC AC cable
  • Height:3.5"
  • Depth:14.37"
  • Width:18.87"
  • Weight:12.6 lbs.
  • Manufacturer Part Number:Tio1608-D

Dimension Packaging Weight : 10.452 kg

Yamaha Tio1608-D2 16-in/8-out Digital Stage Box with Dante (Tio1608 D2 Tio1608D2) Replacing Tio1608D

Product form

RM10,080.00  RM8,064.00 Sale 20%

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: Tio1608-D2

    Same Day Delivery via Lalamove

    Description

    SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

    - Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
    - Third party pickup charges to be beared by buyer
    - Kindly put a remark for self collection / Lalamove in your order
    - installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

    EAST MALAYSIA ORDERS
    - Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

    FOR STANDARD DELIVERY
    Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
    *Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

    Waze: Live Music Centre
    No 20 & 20-1 & 22 & 22A,
    Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

    Contact : 0-1-6-5-2-0-1-0-6-6



    The Yamaha Tio1608-D stage box provides 16 inputs and eight outputs for your TF series console, putting your I/O onstage where it's most convenient. Connect to your console with any standard Cat 5e LAN cable for high-quality, low-latency audio transfer. For more I/O, you can connect up to three Tio1608-D boxes onstage for 48 inputs and 24 outputs. And live sound engineers at Music Bliss love the ability to control the Tio1608-D preamplifiers directly from a TF series console. For a high-performance stage box solution, check out the Yamaha Tio1608-D.

    FEATURES
    • Digital stage box for Yamaha TF series consoles
    • 16 high-quality mic preamps are controllable from your console
    • Connect up to 3 simultaneously for 48 inputs and 24 outputs
    • Requires NY64-D Dante interface card (sold separately)
    • Connects to TF series consoles via standard Cat 5e LAN cable (sold separately)
    SPECIFICATIONS
    • Type:Digital Stage Box
    • Compatibility:Yamaha TF Mixers with Dante Cards
    • Channels:16 x 8
    • Inputs - Mic Preamps:16 x XLR-1/4" combo (mic/line)
    • Outputs - Main:8 x XLR (line +4dBu)
    • Data I/O:2 x EtherCon (primary, secondary)
    • Computer Connectivity:Ethernet Dante
    • Features:Connect multiple Tio Racks
    • Rackmountable:Yes
    • Power Source:Standard IEC AC cable
    • Height:3.5"
    • Depth:14.37"
    • Width:18.87"
    • Weight:12.6 lbs.
    • Manufacturer Part Number:Tio1608-D

    Dimension Packaging Weight : 10.452 kg
