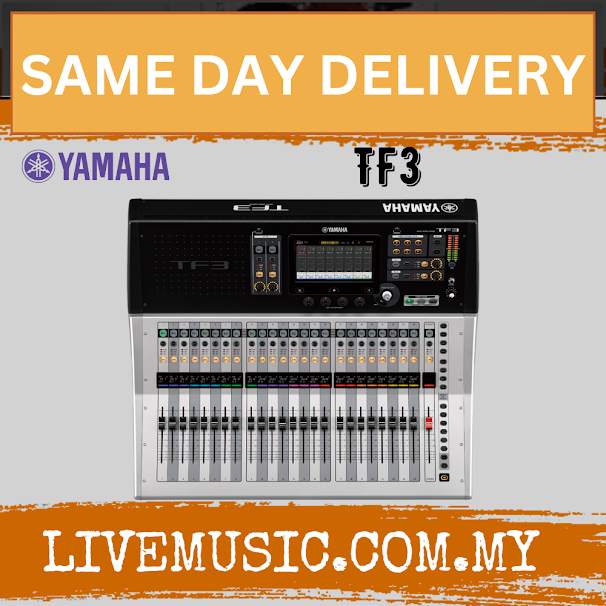

Yamaha TF3 24-Channel Digital Mixer ( TF-3 / TF 3 )

Description



FEATURES
  • 25 motor faders (24 channels + 1 master)
  • 48 input mixing channels (40 mono + 2 stereo + 2 return)
  • 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
  • 8 DCA groups with Roll-out
  • 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
  • 16 analog XLR outputs
  • 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
  • 1 expansion slot for NY64-D audio interface card
SPECIFICATIONS
Fader Configuration 24 + 1 (Master)
Mixing Capacity Input Channels 48 (40 mono + 2 stereo + 2 return)
Aux Buses 20 (8 mono + 6 stereo)
Stereo Buses 1
Sub Buses 1
Input channel functions 8 DCA Groups
I/O Inputs 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
Outputs 16 (XLR)
Expansion slots 1
On-board processors DSP 8 Effects + 10 GEQ
USB 34x34 USB Audio Interface2-track recording via USB Storage Device
General specifications
Sampling frequency rate Internal 48 kHz
Signal delay Less than 2.6 msINPUT to OMNI OUTFs=48 kHz
Fader 100 mm motorizedResolution = 10-bit+10 dB to -138 dB-dB all faders
Total harmonic distortion Less than 0.05% 20 Hz-20 kHz @+4 dBu into 600 INPUT to OMNI OUTInput Gain=Min. (Measured with a -18 dB/octave filter@80 kHz)
Frequency response +0.5-1.5 dB 20 Hz-20 kHzrefer to +4 dBu output @1kHzINPUT to OMNI OUT
Dynamic range 110 dB typ.DA Converter107 dB typ.INPUT to OMNI OUTInput Gain=Min.
Hum & noise level Equivalent input noise -128 dBu typ.Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise -85 dBuST master off (Measured with an A-Weight filter)
Crosstalk -100 dB (Measured with a -30 dB/octave filter@22 kHz)adjacent INPUT/OMNI OUT channelsInput Gain=Min.
Power requirements 100-240 V 50/60 Hz
Power consumption 110 W
Dimensions W 716 mm (28.2in)
H 225 mm (8.9in)
D 599 mm (23.6in)
Net weight 17.0 kg (37.5lb)
Options Expansion CardFoot Switch (FC5)
Others Operating temperature range: 0-40 °CStorage temperature range: -20-60 °C

Dimension Packaging Weight : 20.4 kg
