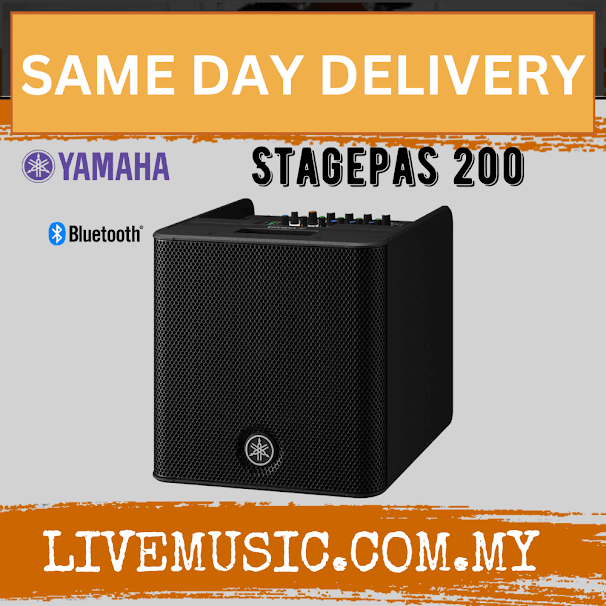

Yamaha StagePas 200 Portable PA System ( StagePas-200 / StagePas200 )

Description

FEATURES
  • 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
  • 1.4” HF + 8” LF high-quality coaxial compression driver
  • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
  • Main output multi-band compressor “MODE”
  • 1-knob EQ/preset for each channel
  • High-grade SPX digital reverb (4 program, parameter control), delay, chorus
  • Hi-Z input
  • Equipped with link-out/monitor out
  • Supplied rubber stand allows inclining at 30 or 60 degrees
  • Compatible with audio streaming via Bluetooth
  • Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
  • Compatible with the optional BTR-STP200 battery
  • Optional CASE-STP200 carry case for convenient carrying
SPECIFICATIONS
  • Type : 2-way Bi-amp Powered Speaker with mixer
  • Mixing channels : 5 (Mono x3 + Stereo x1)
  • Input channel functions : Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
  • Output channel functions : MODE (SPEECH/MUSIC/CLUB)
  • Inputs : Mono x3 (mic/line) + Stereo/Mono x1 (line)
  • Outputs : Monitor/Link out x1
  • Bluetooth : Ver.5.0, A2DP (SBC, AAC), Class 1
  • Control and others : STAGEPAS Controller (iOS/Android app)
  • On-board processors : SPX digital reverb (4 program, parameter control), delay, chorus
  • Speaker type : Coaxial speaker with compression driver
  • Frequency range (-10dB) : 60 Hz – 20 kHz
  • Coverage area : H90? x V90?
  • Crossover : 2.0 kHz
  • Maximum output level (1m; on axis) : 125 dB SPL *1
  • Components : LF : 8" Cone, 2.0" voice coil | HF: 1" throat compression driver, 1.4" voice coil
  • Amplifier class : Class-D
  • Power rating : Dynamic : 180 W (LF: 150 W, HF: 30 W)
  • Cooling : Natural convection (no fan)
  • Power consumption : 10 W (Idle), 20 W (1/8 power)
  • Power requirements : 100-240 V 50/60 Hz, or 29.6 Vdc *2
  • Cabinet material : Plastic (ABS)
  • Handle : Top x1
  • Pole socket : ?35 mm x1 (Side)
  • Floor Monitor Angle : 30° or 60°
  • Dimensions (W x H x D) : 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
  • Weight : 12.0 kg (26.5 lbs)
  • Accessories : Power cord x 1
Dimension Packaging Weight : 13.0 kg

Yamaha StagePas 200 Portable PA System ( StagePas-200 / StagePas200 )

Product form

RM3,730.00  RM2,745.00 Sale 26%

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: StagePas 200

    Same Day Delivery via Lalamove

    Description

    FEATURES
    • 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
    • 1.4” HF + 8” LF high-quality coaxial compression driver
    • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
    • Main output multi-band compressor “MODE”
    • 1-knob EQ/preset for each channel
    • High-grade SPX digital reverb (4 program, parameter control), delay, chorus
    • Hi-Z input
    • Equipped with link-out/monitor out
    • Supplied rubber stand allows inclining at 30 or 60 degrees
    • Compatible with audio streaming via Bluetooth
    • Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
    • Compatible with the optional BTR-STP200 battery
    • Optional CASE-STP200 carry case for convenient carrying
    SPECIFICATIONS
    • Type : 2-way Bi-amp Powered Speaker with mixer
    • Mixing channels : 5 (Mono x3 + Stereo x1)
    • Input channel functions : Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
    • Output channel functions : MODE (SPEECH/MUSIC/CLUB)
    • Inputs : Mono x3 (mic/line) + Stereo/Mono x1 (line)
    • Outputs : Monitor/Link out x1
    • Bluetooth : Ver.5.0, A2DP (SBC, AAC), Class 1
    • Control and others : STAGEPAS Controller (iOS/Android app)
    • On-board processors : SPX digital reverb (4 program, parameter control), delay, chorus
    • Speaker type : Coaxial speaker with compression driver
    • Frequency range (-10dB) : 60 Hz – 20 kHz
    • Coverage area : H90? x V90?
    • Crossover : 2.0 kHz
    • Maximum output level (1m; on axis) : 125 dB SPL *1
    • Components : LF : 8" Cone, 2.0" voice coil | HF: 1" throat compression driver, 1.4" voice coil
    • Amplifier class : Class-D
    • Power rating : Dynamic : 180 W (LF: 150 W, HF: 30 W)
    • Cooling : Natural convection (no fan)
    • Power consumption : 10 W (Idle), 20 W (1/8 power)
    • Power requirements : 100-240 V 50/60 Hz, or 29.6 Vdc *2
    • Cabinet material : Plastic (ABS)
    • Handle : Top x1
    • Pole socket : ?35 mm x1 (Side)
    • Floor Monitor Angle : 30° or 60°
    • Dimensions (W x H x D) : 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
    • Weight : 12.0 kg (26.5 lbs)
    • Accessories : Power cord x 1
    Dimension Packaging Weight : 13.0 kg
