Description
FEATURES

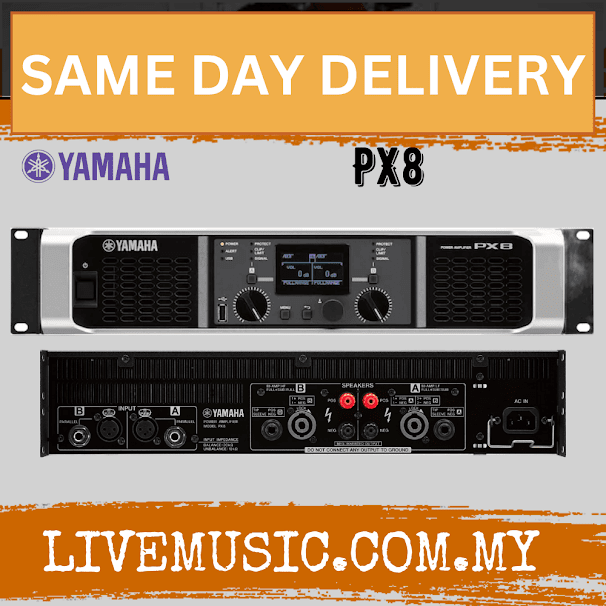

- Dual-channel Class D power amplifier with built-in PA management processing
- Connectivity includes XLR and TRS inputsand speakONbinding postand phono outputs
- Built-in PA management tools like EQlimitingdelayscrossoversand filters
- LCD display for easy navigation of advanced features
SPECIFICATIONS
| 100V models | PX8 | |
| Output power; 1kHz Non-clip 20msec Burst Both channels driven | 8 | 800W x 2 |
| 4 | 1050W x 2 | |
| 2 | 600W x 2 | |
| 8/Power Boost Mode | - | |
| 4/Power Boost Mode | - | |
| 120V models | PX8 | |
| Output power; 1kHz Non-clip 20msec Burst Both channels driven | 8 | 800W x 2 |
| 4 | 1050W x 2 | |
| 2 | 600W x 2 | |
| 8/Power Boost Mode | - | |
| 4/Power Boost Mode | - | |
| 220V-240V models | PX8 | |
| Output power; 1kHz Non-clip 20msec Burst Both channels driven | 8 | 800W x 2 |
| 4 | 1050W x 2 | |
| 2 | 600W x 2 | |
| 8/Power Boost Mode | - | |
| 4/Power Boost Mode | - | |
| General specifications | PX8 | |
| Sampling frequency rate | Internal | 48kHz |
| A/D D/A Converters | AD/DA: 24-bit linear128 times over sampling | |
| Total harmonic distortion | 0.1% (1kHz10W)0.3% (1kHzHalf power) | |
| Frequency response | ±1.0dB (1W820Hz to 20kHz) | |
| S/N ratio | 101dB (A-weighted8Gain setting = +14dBu) | |
| Crosstalk | Less than -60dB (Half Power81kHzVol max input 150 shunt) | |
| Voltage Gain/Sensitivity | 8 Volume max | 32.0dB/+8.3dBu (Gain setting: 32dB)26.0dB/+14.3dBu (Gain setting: 26dB)36.3dB/+4dBu (Gain setting: +4dBu)26.3dB/+14dBu (Gain setting: +14dBu) |
| 8 Volume max /Power Boost mode | - | |
| Maximum input voltage | +24dBu | |
| Input impedance | 20k (Balance)10k (Unbalance) | |
| I/O Connectors | Speaker output ports | Neutrik speakON NL4 x2Binding post x2 pairs1/4" PHONE(TS) x2 |
| Line Input | XLR-3-31 x21/4 "PHONE(TRS) x2 | |
| Others | USB 2.0 Standard-A Connector (Female) for Save/LoadSpeaker preset updateFirmware update with USB memory; AC inlet x1 with AC cord clamp | |
| Indicators | POWER x1 (Green)ALERT x1 (Red)USB x1 (Green)PROTECT x2 (Red)CLIP/LIMIT x2 (Red)SIGNAL x2 (Green); Auto LED off feature | |
| Processors | Input summing; D-CONTOUR(FOH/MAINMONITOROFF); Delay(0 - 74msec); HPF/LPF(cutoff frequency 20Hz~20kHz with polarity control); Speaker Processor(6 band PEQ* + Limiter + Delay) | |
| Latency | 1.5 msec (Analog Input to Speakers) | |
| Presets | 8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers) | |
| Protection circuit | Load protection | POWER switch on/off: Output mute; Output voltage protection: Over voltage limiteruser configurable by wattage and speaker preset; DC-fault: Power Supply shutdown (NOT restored automatically) |
| Amplifier protection | Thermal: Output limiter (Restored automatically) Output mute (Restored automatically); Over current: Output mute (Restored automatically); Over voltage: Output limiter (Restored automatically); Integrated Power Limit: Output limiter (Restored automatically) | |
| Power supply protection | Thermal: Output limiter (Restored automatically) Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown | |
| Amplifier class | Class DBalanced output circuit (BTL) | |
| Cooling | 16 step variable speed fan x 2front to rear airflow | |
| Power requirements | Depending on area of purchase; 100V 50Hz/60Hz120V 60Hz220V-240V 50Hz/60Hz *Verified as operating at rated power voltage +/- 10% voltage. | |
| Power consumption | 280W (1/8 MAX power4Pink noise at all channels)60W (4Idling) | |
| Dimensions | W | 480mm (18-7/8") |
| H | 88mm (3-7/16"): 2U | |
| D | 388mm (15-2/8") | |
| Net weight | 7.2 kg (15.87 lbs) | |
| Others | USB 2.0 Standard-A Connector (Female) for Save/LoadSpeaker preset updateFirmware update with USB memory; AC inlet x1 with AC cord clamp | |
Dimension Packaging Weight : 9.0 kg
