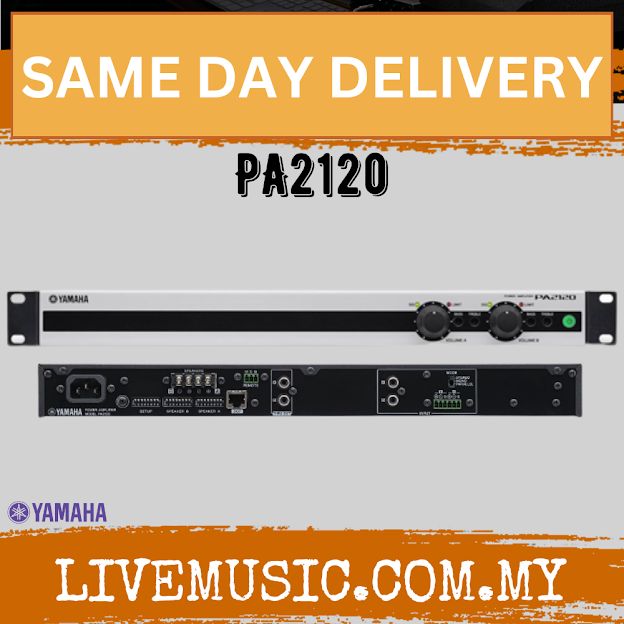

Description
FEATURES
- Easy setupand a user-friendly interface for effortless operation
- Supporting Lo-Z (120W x2ch or 100W x2ch ) and Hi-Z (120W x2ch or 200W x1ch70V/100V) speaker systems
- 1 stereo/2 mono line inputs
- Output EQ for optimizing the sound of each Output channel
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speakersas well as HPF and selectable LPF settings
- Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
- Service areas or zoning areas can be expanded by adding a PA2120
- Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4SDCP1V4SDCP4Smax 2 units)
- Intelligent protection function ensures safereliable operation
- Certified by ENERGY STAR
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
SPECIFICATIONS
| Output power | 1kHz (THD+N=1%: 3) | 100W x 2 (20ms Burst) |
|---|---|---|
| 1kHz (THD+N=1%: 4) | 120W x 2 (20ms Burst) | |
| 1kHz (THD+N=1%: 8) | 100W x 2 (20ms Burst) | |
| High impedance: 100V line | 120W x 2 or 200W x 1 | |
| High impedance: 70V line | 120W x 2 or 200W x 1 | |
| Total harmonic distortion | 0.2% (Line in to Speaker outHalf power @1kHz3/4/8)0.2% (Line in to Speaker outHalf Power @1kHz70V/100V120W/200W) | |
| Frequency response | 0dB-2.5dB+1.0dB (Line in to THRU OUT20Hz to 20kHz)0dB-3.0dB+1.0dB (Line in to Speaker out50Hz to 20kHz1W3/4/8)0dB-3.0dB+1.0dB (Line in to Speaker out90Hz to 20kHz1W70V/100V120W/200W) | |
| I/O Connectors | Line Input | Input A-B:MONO RCA pin x 2 (unbalanced) or 3.5mm Euro block (6-pinbalanced) |
| Speaker Output | Barrier strip x 2 pairs | |
| Line Out | THRU OUT: MONO RCA pin (unbalanced) x2 | |
| Control ports | RJ-45 (for DCP4V4SDCP1V4S DCP4S)Remote (3.5mm Euro block 3-pin) | |
| Input Level | Line input (unbalanced): -10dBV (Sensitivity)-10dBV (Nominal)+10dBV (Max before clip) / Line input (balanced): +4dBu (Sensitivity)+4dBu (Nominal)+24dBu (Max before clip) | |
| Output Level | -10dBV (THRU OUTNominal) | |
| Protection circuit | Load protection | Power switch on/off: Mute the output*Output voltage protection: Compress the output*DC-fault: Power supply shutdown (*Restored automatically) |
| Amplifier protection | Thermal: Limit the output* Mute* ShutdownOver current: Mute the output*Integrated power limit: Compress the output* (*Restored automatically) | |
| Power supply protection | Thermal: Power supply shutdownOver voltage: Power supply shutdownOver current: Limit the output* Power supply shutdown (*Restored automatically) | |
| Amplifier class | Class D | |
| Cooling | Conventional coolingbottom to up airflow | |
| Power requirements | 100V120V230V - 240V50Hz / 60Hz | |
| Power consumption | Music source equivalent | 60W (1/8 max power4AC100Vpink noise at all channels) |
| Dimensions | W | 480mm (18.9?) *1 |
| H | 45mm (1.8?) *1 | |
| D | 379mm (14.9?) *1 | |
| Net weight | 4.8kg (10.6lbs) | |
| Accessories | AC power cable3.5mm Euroblock plug (6-pin) x 1Euroblock pulg (3-pin) x 1Owner manualSpecification sheet | |
| Options | DCP4V4SDCP1V4SDCP4S (Digital Control Panel) | |
| Certificate | ENERGY STAR | |
| Others | Operating Temperature: 0°C to + 40°CStorage Temperature: -20°C to + 60°CRack-mountable when ensuring sufficient ventilation above and below the unit | |
