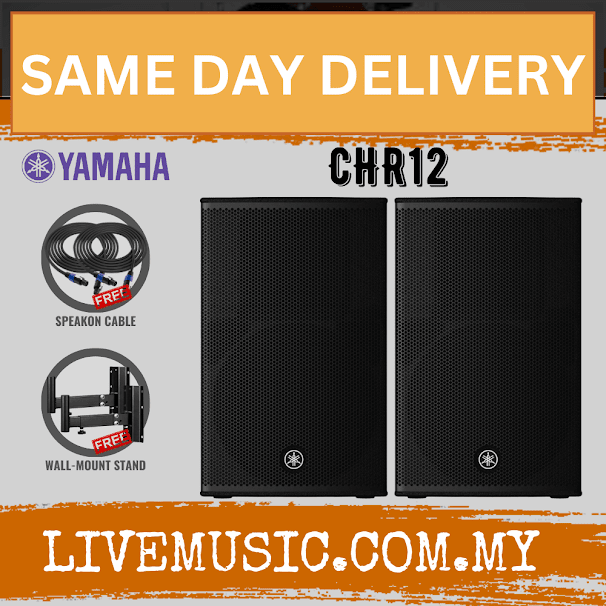

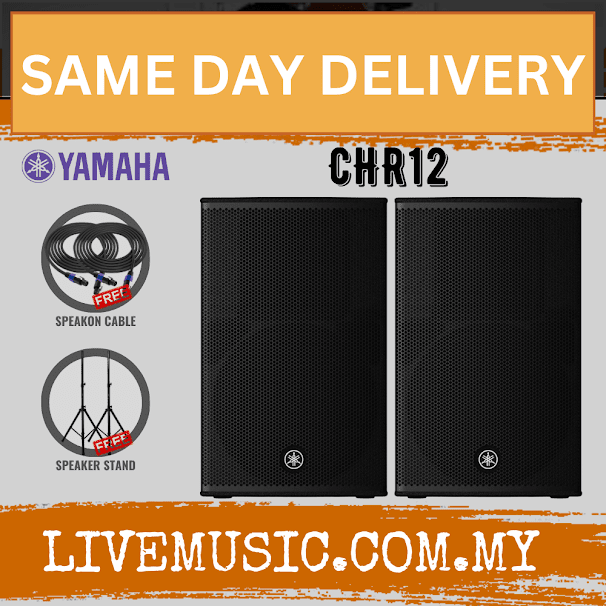

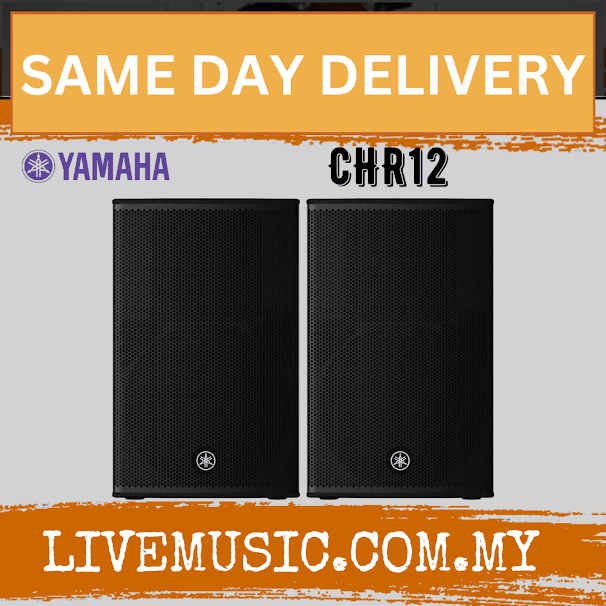

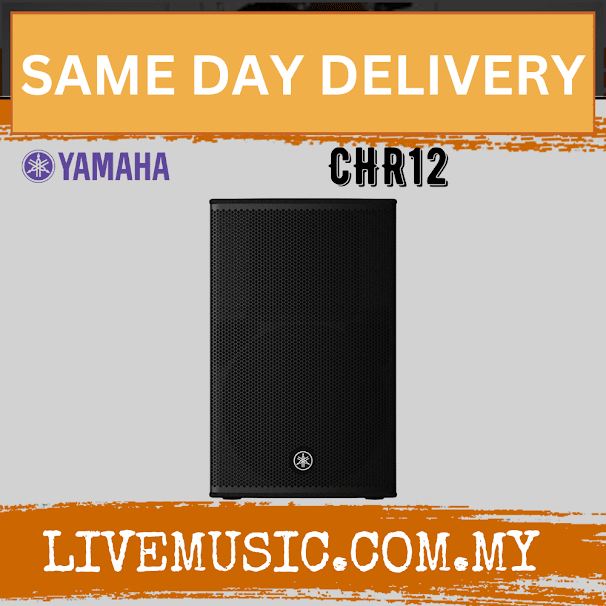

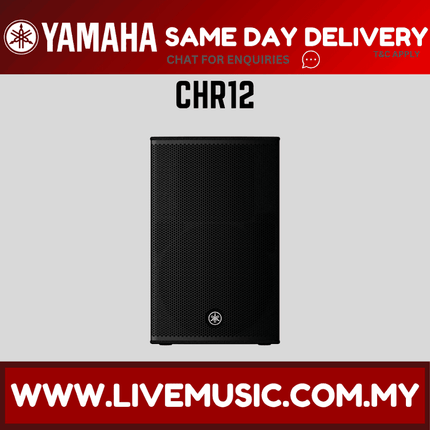

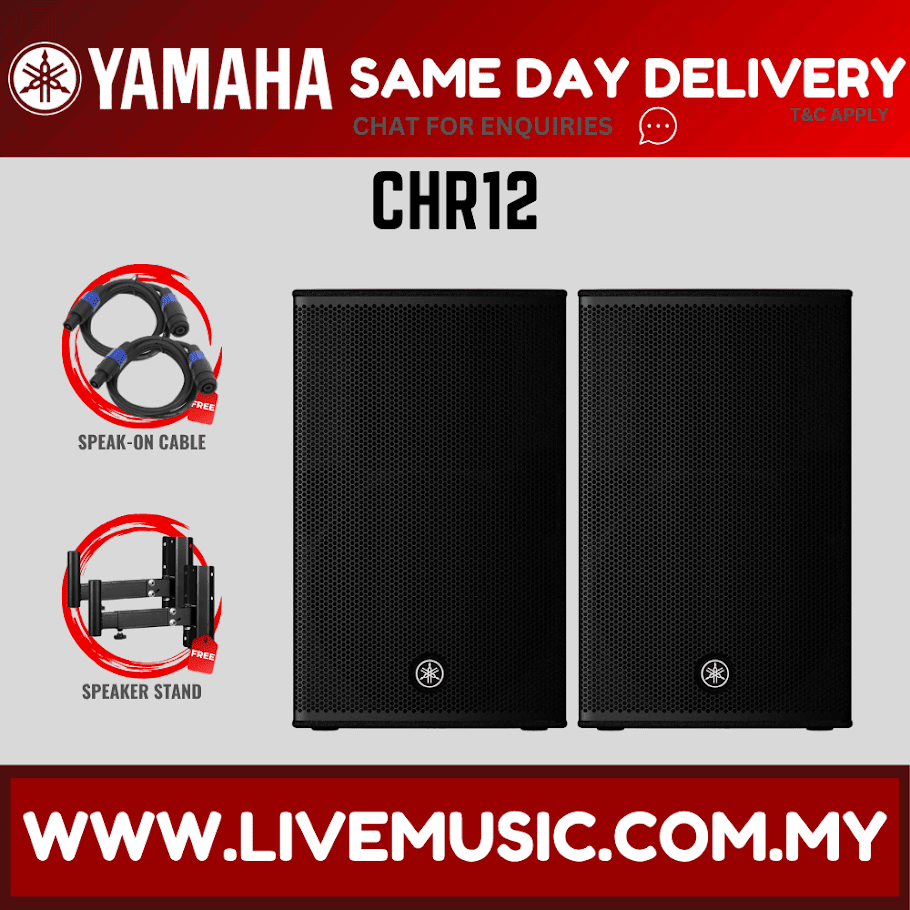

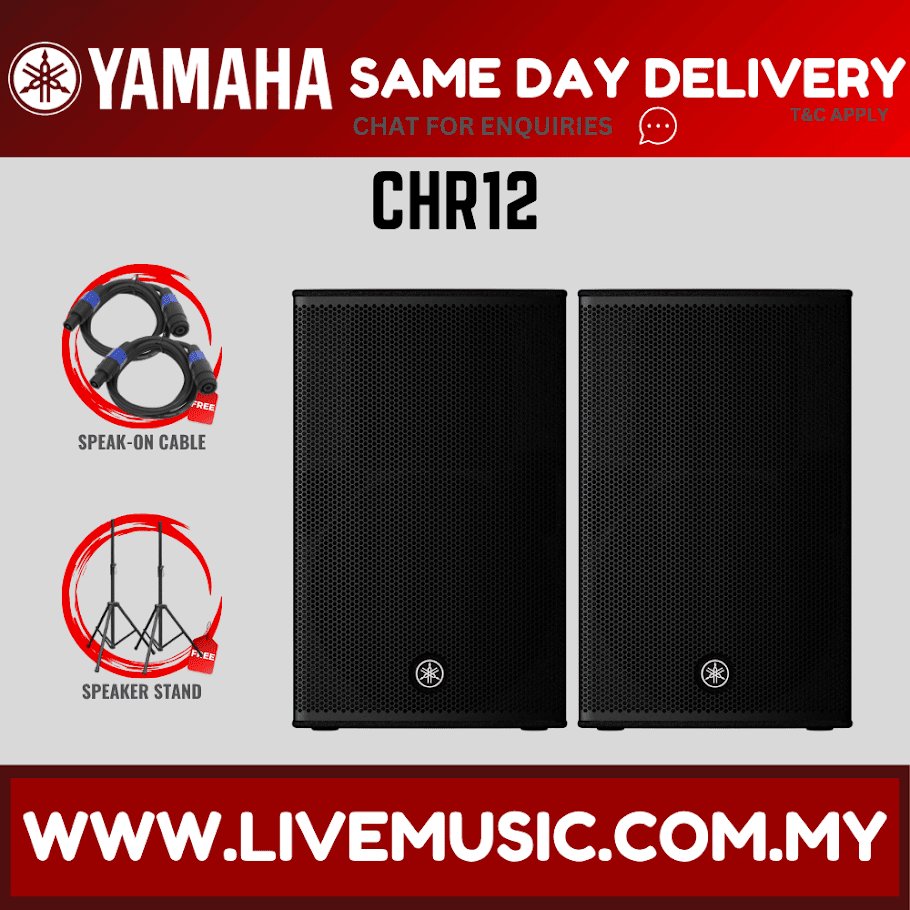

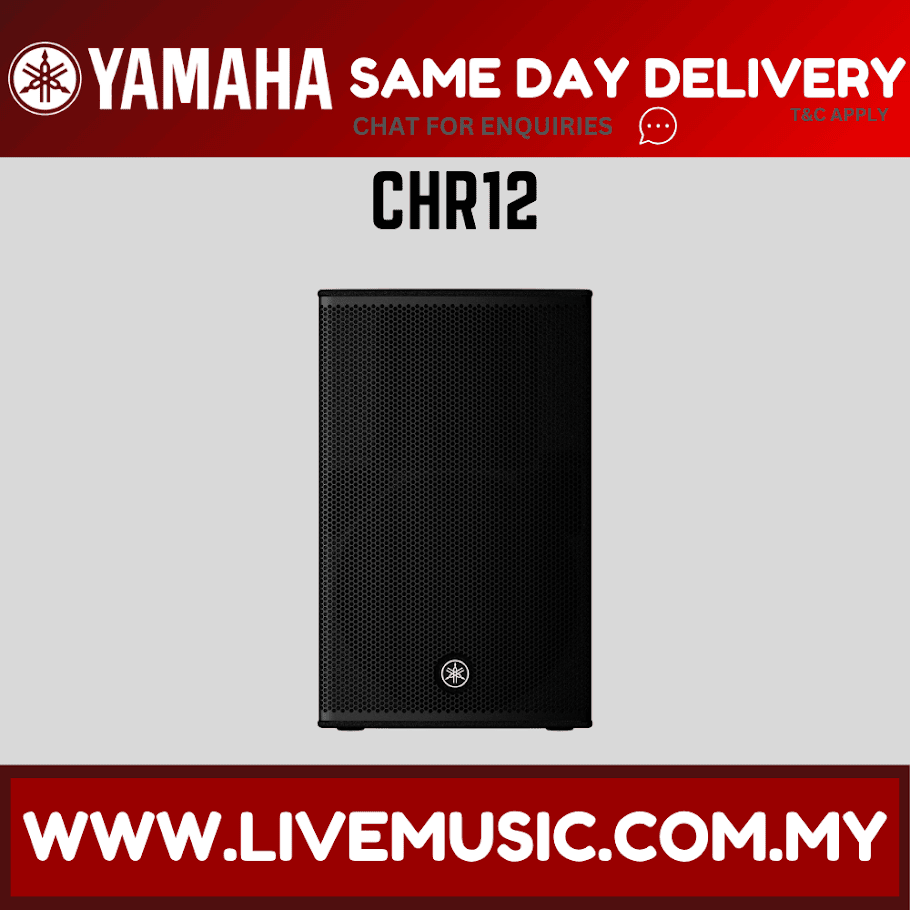

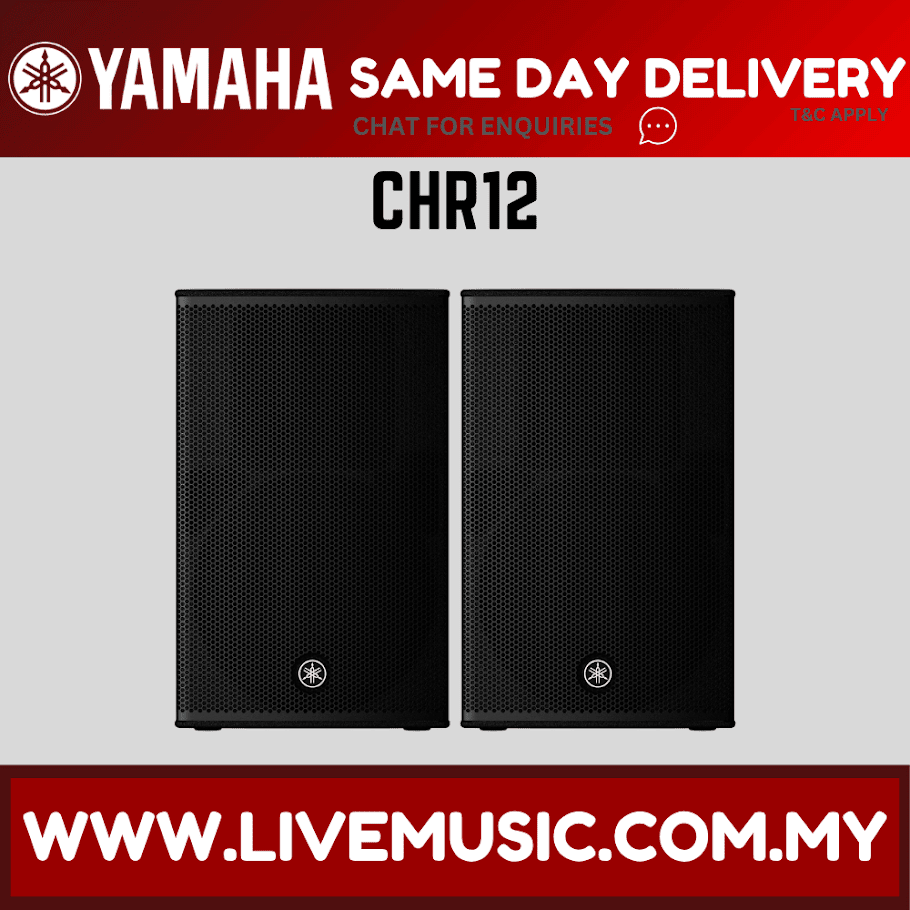

Yamaha CHR12 2-Way 1000W 12" Passive Loudspeaker w/Speaker Stand - Each / Pair ( CHR12 / CHR 12 )

Description

The CHR12 is a 2-way loudspeaker, equipped with a 12-inch woofer and a 1.4-inch HF driver, and for use as a main or utility speaker. Combining carefully selected and customized transducers with the same plywood construction found on our high-end CZR Series, the CHR12 offers best-in-class sound quality and durability.

Yamaha CHR12 Features

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration

  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface

  • Compact size despite the 12-inch LF driver that provides excellent low frequency response

  • Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments

  • Optional UB-DXRDHR12 U-bracket allows both for vertical or horizontal use

  • Dual-angle pole sockets offer both 0° or a -7° down tilt

  • Rigging points for use with eye bolts

  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance



SPECIFICATIONS

  • Speaker type2-way Speaker, Bass-reflex

  • Frequency range (-10dB)54 Hz - 20 kHz

  • Coverage areaH90? x V60?

  • Crossover2.0 kHz

  • Nominal impedance8?

  • SPL

    • Sensitivity (1W; 1m on axis): 94 dB SPL

    • Peak (Calculated): 124 dB SPL

  • Components

    • LF: Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite

    • HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite

  • Power rating

    • NOISE: 250W

    • PGM: 500W

    • PEAK: 1000W

  • I/O connectorsSpeakON NL4MP x 2 (Parallel)

  • Cabinet materialPlywood

  • FinishDurable Polyurea Painting, Black

  • HandleTop x1, Side x2

  • Pole socket?35 mm x2 (Bottom, 0° or -7°)

  • RiggingTop x 2, Rear x 1 (Fit for M10 x 30~50 mm Eyebolts)

  • Floor Monitor AngleNA

  • Dimensions (WxHxD)14.1x22.8x13.4” (359x578x340mm) (with rubber feet)

  • Net weight37.7 lbs (17.1kg)

  • U-BracketUB-DXRDHR12 (sold separately)

  • Height: 19.5" (with rubber feet)

  • Width: 12"

  • Depth: 11.75"

  • Weight: 30.1 lbs.
