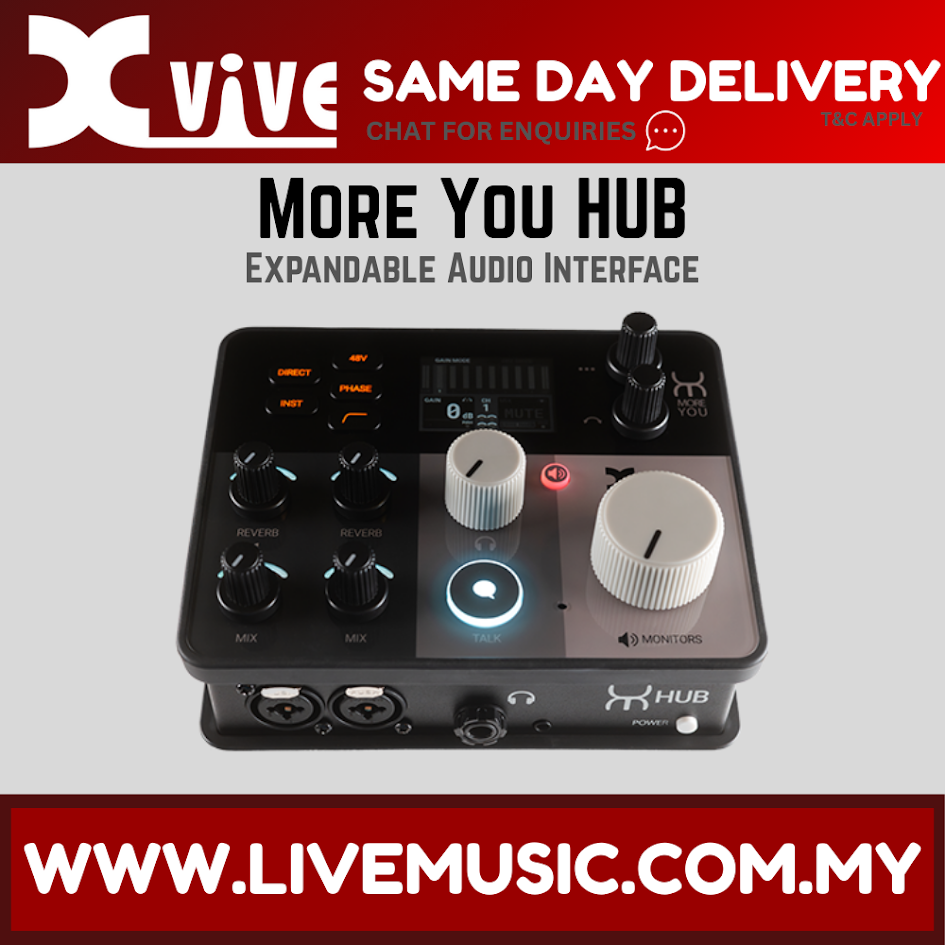

FEATURES

• Modular ecosystem provides multimode monitoring and recording capabilities that can be expanded to suit your setup
• Versatile connectivity suite comprises 2 combo-jack 1/4-in. and 3-pin XLR inputs; 3.5mm TRS MIDI I/O; 1/4-in. stereo audio output; and 8-ch. ADAT connector
• Dual 1/4- and 1/8-in. headphone outputs support flexible monitoring and playback configurations, with individual-level adjustments for headphones and monitors
• 2 USB Type-C ports accommodate power and data, letting you integrate your
• DAW and all virtual plug-ins and peripherals while maintaining consistent, clean power
• Onboard preamps include 48V phantom power and 60dB of gain for precise control of your signal path
• Vivid LCD supplies dynamic, real-time visual feedback, giving you plenty of pliability to apply dynamics, effects, and further changes to individual channels and groups
• Auto-gain capabilities streamline workflow with per-channel or global application
• Talkback capabilities on each Hub and expansion unit provide one-button control of bidirectional communication with your creative collaborators
• Dedicated buttons for managing Phase, Highpass Filter, Direct, and Instrument configurations make easy work of managing your system
• More Port utilizes 3-pin XLR I/O to digitally send talkback, audio, data, and more, from unit to unit
• Recall feature ensures all settings are automatically restored after complete shutoff and restart

SPECIFICATIONS

• Simultaneous I/O : Up to 24 inputs / 20 outputs (with a total of 8 Hubs/2X units and 8 ADAT ins)
• High-Fidelity Audio : 24-bit; 44.1 kHz / 48 kHz / 96 kHz
• ADAT Support : 8 ADAT inputs
• MIDI : Mini TRS MIDI In and Out
• MORE PORT : Digital port for linking Hubs using standard XLR cables
• Direct Monitoring : Zero latency, with the ability to blend each individual direct input and post-DAW monitoring
• Massive Connectivity via Standard XLR Cables : MORE PORT sends up to 44 digital channels, Talkback, and Power

Dimension Packaging Weight : 1.0 kg
