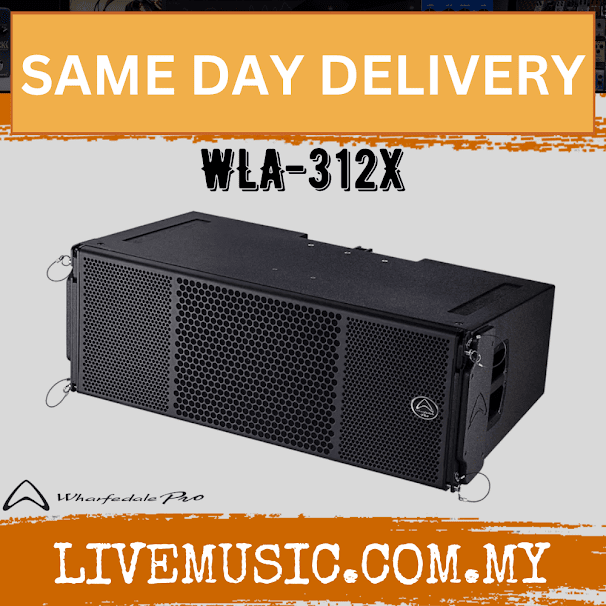

WHARFEDALE PRO WLA-312X Series 1410 Watts RMS 3-Way Passive Line Array Loudspeaker (WLA312X WLA 312X)

Description

Features

  • Three-way line array element

  • 2 x 12” LF drivers

  • 1 x 10” Neo Midrange driver

  • 2 x 2.55” Neo HF compression drivers

  • Birch plywood construction

  • 1410 watts AES (RMS)

  • 2820 watts Programme

  • 5640 watts Peak

  • 16 ohms impedance

  • Fly frame to support up to 12 elements (900 kg)



SPECIFICATIONS.





Model Name

WLA-312X

System Type

Passive

Configuration

Three-way

Frequency Response (+/-3 dB)

50-18 KHz

Frequency Range (-10 dB)

40-20 KHz

Sensitivity 2.83 v / 1 Meter

HF:114 dB/MF:105 dB/LF:102 dB

Calculated Maximum SPL @ 1 Meter

HF:142 dB/MF:136 dB/LF:138 dB

Low Frequency Transducer



Size (mm / inches)

313 mm / 12”

Voice Coil Size (mm / inches)

75.5 mm / 3”

LF Magnet Material

Ferrite

LF Frame Material

Aluminium

Rated Impedance

2 x 8 Ω

LF Power re:AES2-2012

2 x 450 W

Mid Frequency Transducer



Size (mm / inches)

260 mm / 10”

Voice Coil Size (mm / inches)

65 mm / 2.55”

MF Magnet Material

NdFeB

MF Frame Material

Aluminium

Rated Impedance

16 Ω

MF Power re:AES2-2012

350 W

High Frequency Transducer



HF Driver Type:

Compression Driver

Coil Size (mm / inches)

65 mm / 2.55”

Exit Size (mm / inches)

1.4″

HF Magnet Material

NdFeB

Diaphragm Material

Titanium

Rated Impedance

16 Ω (2 x 8 Ω)

HF Power re:AES2-2012

160 W (2 x 80 W)

Waveguide Type

square

Nominal Coverage (H x V)

90H x 7.5V

Nominal Impedance

16 Ω

Power



System Power AES (RMS) (w)

HF:160 W/MF:350 W/LF:900 W

System Programme Power (w)

HF:320 W/MF:700 W/LF:1800 W

System Peak Power (w)

HF:640 W/MF:1400 W/LF:3600 W

Crossover frequency

160 Hz / 1.2 KHz





Input Connector

2 x Neutrik NL8MPR

Rigging

3 points for rigging

Pole mount

No

Handles

Yes

Enclosure



Cabinet type

Trapezoid

Enclosure Material and finish

15 mm,18 mm plywood

Colour Options

black paint

Grille Material & Finish

steel

Dimensions – Unpacked



Height

370 mm

Width Front

1030 mm

Width Rear

279 mm

Depth

550 mm

Dimensions – Packed



Height

1095 mm

Width Front

480 mm

Width Rear

480 mm

Depth

650 mm

Weight



Net Weight

58 kg

Gross Weight

62 kg



WHARFEDALE PRO WLA-312X Series 1410 Watts RMS 3-Way Passive Line Array Loudspeaker (WLA312X WLA 312X)

Product form

RM11,150.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: WLA312X
