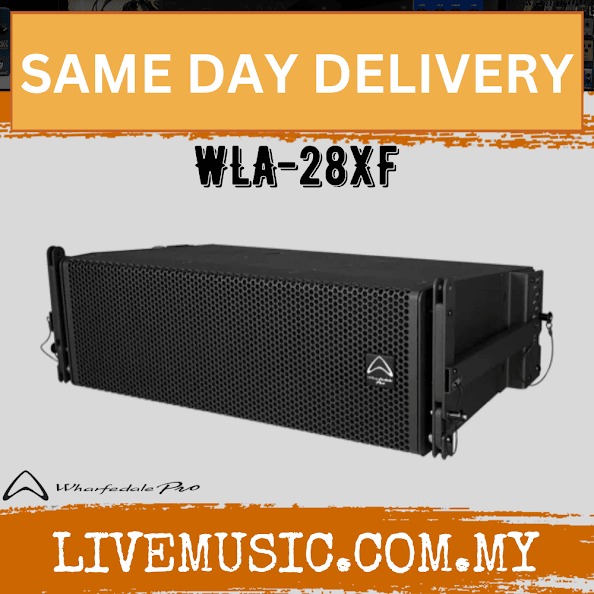

Wharfedale Pro WLA-28XF - IPX6 Waterproof Line Array Element Speaker (WLA 28XF WLA28XF)

Description

FEATURES

  • Dual 8” line array element

  • Stainless aluminium hardware

  • Wax wrapped components

  • 100 H x 10 V dispersion

  • Dual WY-24K4Z waterproof input connectors

  • Two WY-24K4Z cable connectors included

  • 133 dB Max SPL @ 1 m



SPECIFICATIONS





Model Name

WLA-28XF

System Type

Passive

Configuration

two-way

Frequency Response (+/- 3dB)

65-20 KHz

Frequency Range (- 10 dB)

60-20 KHz

(Passive)Sensitivity 2.83v/1m

101 dB

(Passive)Calculated Maximum SPL @1m

133 dB

System Rated Impedance

16 Ω

Low Frequency Transducer



Size (mm / inches)

203.2 mm / 8”

Voice Coil Size (mm / inches)

51.6 mm / 2.0”

LF Magnet Material

ferrite

LF Frame Material

aluminium

Rated Impedance

8 Ω x 2

LF Power re:AES2-2012

200 W x 2

High Frequency Transducer



HF Driver Type:

Compression Driver

Coil Size (mm / inches)

75mm / 3”

Exit Size (mm / inches)

1.4″

HF Magnet Material

NdFeB

Diaphragm Material

Titanium

Rated Impedance

16 Ω

HF Power re:AES2-2012

90 W

Waveguide Type

square

Nominal Coverage (H x V)

100 H x 10 V

System Continuous Power (w)

400 W

System Programme Power (w)

800 W

System Peak Power (w)

1600 W

Crossover frequency

1.7 KHz

Hardware

2 x WY-24K4Z  (waterproof)

Rigging

4 points for rigging

pole mount

No

handles

Yes

cabinet type

Trapezoid

Enclosure Material and finish

15 mm,18 mm plywood/3.0 mm Aluminium

Colour Options

Waterproof black paint

Grille Material & Finish

3.0 mm Black Aluminium

Dimensions – Unpacked (mm / inches):



Height front

279 mm / 10.98″

Height  Rear

191.2 mm / 7.53″

Width

845 mm / 33.3″

Depth

467 mm / 18.39″

Dimensions – Packed (mm / inches):



Height

360 mm / 16.7″

Width Front

944 mm / 37.2″

Width Rear

944 mm / 37.2″

Depth

540 mm / 21.3″

Weight



Net Weight (kg / lbs)

40 kg / 88.0 lbs

Gross Weight (kg / lbs)

43.5 kg / 97.5 lbs



Wharfedale Pro WLA-28XF - IPX6 Waterproof Line Array Element Speaker (WLA 28XF WLA28XF)
