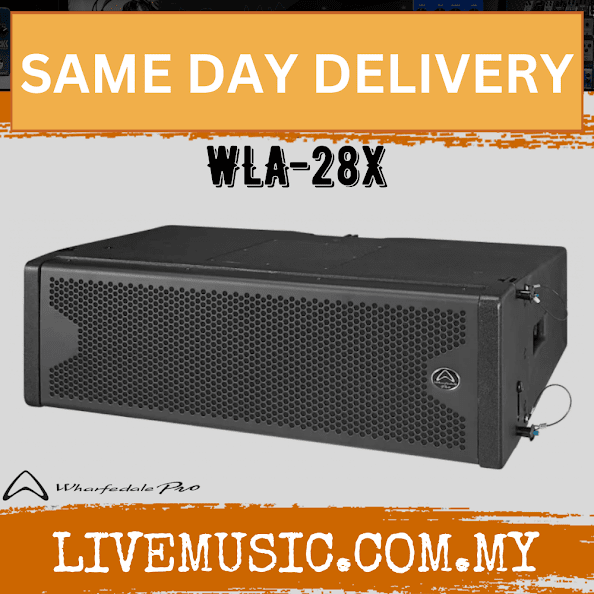

WHARFEDALE PRO WLA 28X Series 400 Watts RMS Dual 8" 2-Way Passive Line Array Loudspeaker (WLA28X WLA-28X)

Description

FEATURES

  • Re-designed dual 8” Passive line array

  • Re-defined HF compression driver

  • Improved HF protection circuit

  • Bi-amp and Passive mode switching



SPECIFICATIONS





Model Name

WLA-28X

System Type

2 x 8” Two-way

Frequency Response (+/-3 dB)

65 Hz-20 KHz

Sensitivity (2.83 v / 1 m)

101 dB

Calculated Maximum SPL @1 m

133 dB

Nominal Coverage (H x V)

100°x10°

Power:

Continuous / Programme / Peak

Passive: 400 W / 800 W / 1600 W

Bi-amp LF: 400 W / 800 W / 1600 W

Bi-amp HF: 90 W / 180 W / 360 W

Rated Impedance ( Ω )

Passive: 16 Ω

Bi-amp LF: 16 Ω ; Bi-amp HF: 16 Ω

HF Diaphragm Material

Titanium

HF Magnet Material

NdFeB

LF Magnet Material

Ferrite

LF Frame Material

Aluminium

HF Coil Size (inches/mm)

3.0” (75 mm)

LF Coil Size (inches/mm)

2.0” (51.6 mm)

Crossover Frequency

1.7 KHz

Cabinet Type

Trapezoid

Enclosure Material and finish

18 mm / 15 mm Plywood

Enclosure Colour

Black paint

Grille Material & Finish

1.5 mm Steel

Connectors

Neutrik NL4MP

Hardware

Integral side plate adjustable

rigging 0°-10°

Cabinet Dimensions HxWxD(mm)

250 x 760 x 463.2 mm

Packed Dimensions HxWxD(mm)

320 x 830 x 534 mm

Net Weight (Kg)

29.5 Kg

Gross Weight (Kg)

32.0 Kg
