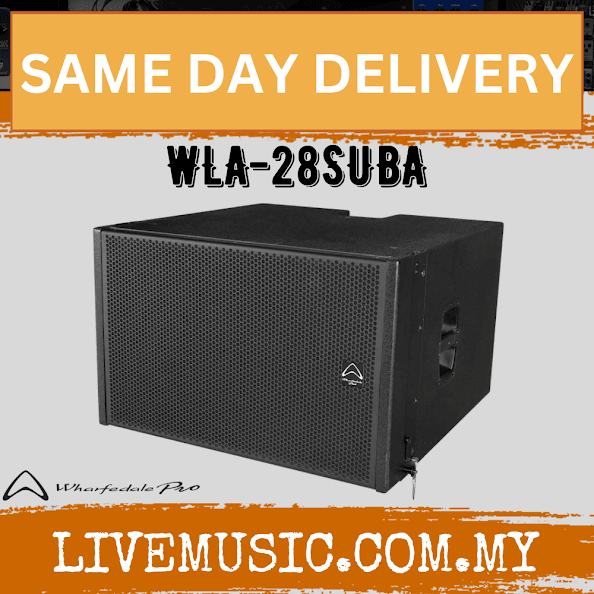

Wharfedale Pro WLA 28SUBA - 2 x 15" active subwoofer. (WLA28SUBA WLA-28SUBA)

Description

FEATURES

  • Dual 15″ LF drivers with 4.0″ voice coils

  • 145 dB Max SPL @ 1 meter

  • 15 mm / 18 mm Birch plywood construction

  • Integral rigging system

  • 2000 watts Continuous

  • 4000 watts Peak

  • 8 x DSP presets



SPECIFICATIONS





Model Name

WLA-28SUBA

System Type

Active 2×15 Subwoofer

Frequency Response (+/-3 dB)

39 Hz-125 Hz

Frequency Range (-10 dB)

35 Hz-163 KHz

Loudspeaker Sensitivity @ 1 W / 1 m)

108 dB

Maximum SPL(peak)(@1 m)

145 dB

Nominal Coverage (H x V)

–

Signal Processing

DSP based,8 presets resident in Input Module

Preset list

A) FLOWN

B) FLOWN with 218

C) STACK

D) STACK with 218

E) CARDIOID AUDIENCE

F) CARDIOID STAGE

G) CUSTOM

H) CUSTOM

Amplifiers



Amplifier Design

Class D

Power Rating:

4000 W Peak / 2000 W Continuous

Power On Protection

Power switch on/off mute

Thermal Protection

Amplifier Shut Down. Auto Reset

Low Line Voltage Shut Down

80% Nominal Line Voltage

Driver Protection

RMS, Peak Limiters and DC

DC and Short Protection

Yes

Limiter Indicator

Red LED

Signal Indicator

Green LED

Power/Active Indicator

White LED

Find Function Indicator

Blue LED

Input Sensitivity

+4 dBu

Maximum Input Level

+18 dBu





Input Impedance

Balanced: 10 KΩ

AC Power details – Power Supply

High Efficiency Switching Mode Power Supply

Connectors



Input Connector

XLR 1/ 4〞Combo jack

Link Connector

Balanced XLR pin Connector

UPDATE

USB Type B

NETWORK (RS485)

RJ45

AC Power Options

AC 100–240 V~,50/60 HZ

AC Input Connector

powerCON

AC Loop Through Connector

powerCON

Hardware – Rigging

Integral side plate

Enclosure Material and finish

15 mm / 18 mm Plywood

Colour Options

black paint

Grille Material & Finish

1.5 Steel

Unpacked dimensions – Height

485 mm / 19.1″

Width (Front)

760 mm / 29.9″

Width (Back)

760 mm / 29.9″

Depth

775 mm / 30.67″

Packed Dimensions – Height

575 mm / 22.6″

Width (Front)

850 mm / 33.5″

Width (Back)

850 mm / 33.5″

Depth

865 mm / 34.6″

Net Weight (Kg / lbs)

67.0 Kg / 147.4 lbs

Gross Weight (Kg / lbs)

74.3 Kg / 163.5 lbs
