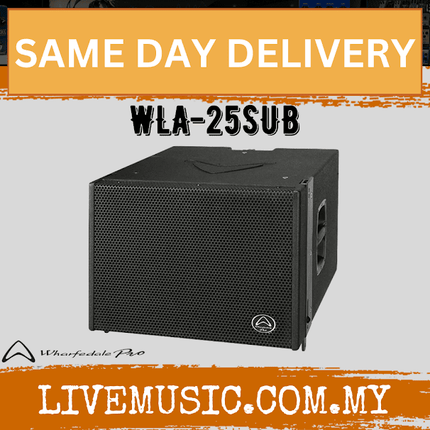

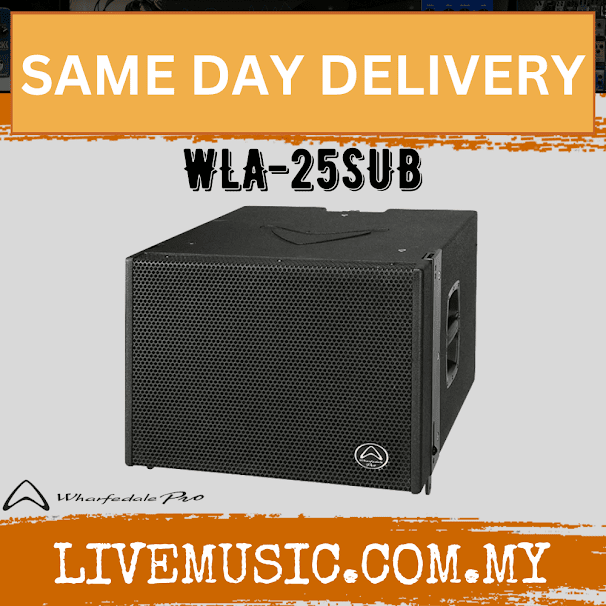

Wharfedale Pro WLA 25SUB Passive, 2800W Peak 2 X 10" Subwoofer (WLA25SUB WLA-25SUB)

Description

This subwoofer physically and acoustically matches the WLA-25 system.

Using a reversed-phase horn loaded design, the 2 * 10” LF drivers with massive 2.5” coils deliver the consistent low end punch to complete this versatile and portable array.



FEATURES

  • Dual 10″ LF driver with 2.5″ voice coils

  • 141 dB Max SPL

  • 15 mm / 18 mm Birch plywood construction

  • Integral rigging system

  • 700 watts AES (RMS)

  • 1400 watts Programme

  • 2800 watts Peak

  • 4 Ω impedance



SPECIFICATIONS





Model Name

WLA-25SUB

System Type

Passive

Configuration

2 x 10” subwoofer

Frequency Response (+/-3 dB)

56 Hz-1.5 KHz

Frequency Range (-10 dB)

56 Hz-2.0 KHz

Sensitivity (2.83 v / 1 m)

107 dB

Calculated Maximum SPL @1 m

141 dB

System Rated Impedance

4 Ω

Low Frequency Transducer



Size

2 x 254 mm / 10”

Voice Coil Size

65.5 mm / 2.5”

Rated Impedance

8 Ω

LF Power (re:AES2-2012)

2 x 350 W

High Frequency Transducer



HF Driver Type



Voice Coil Size



Exit Size



Diaphragm Material



Rated Impedance



HF Power (re:AES2-2012)



Nominal Coverage (H x V)



Power



System Continuous Power

700 W

System Programme Power

1400 W

System Peak Power

2800 W

Crossover frequency



Input Connector

2 x speakON compatible

Hardware

Integral, non adjustable

Enclosure



Enclosure Material

15 mm,18 mm Plywood

Finish

Black or white paint

Grille Material & Finish

Steel

Dimensions – (Unpacked)



Height Front

400 mm / 15.74”

Height Rear

400 mm / 15.74”

Width

536 mm / 21.10”

Depth

550 mm / 21.65″

Dimensions – (Packed)



Height

610 mm / 24.01″

Width Front

470 mm / 18.50″

Width Rear

470 mm / 18.50″

Depth

596 mm / 23.46″

Weight



Net Weight (kg / lbs)

37.0 kg / 81.57 lbs

Gross Weight (kg / lbs)

39.5 kg / 87.08 lbs
