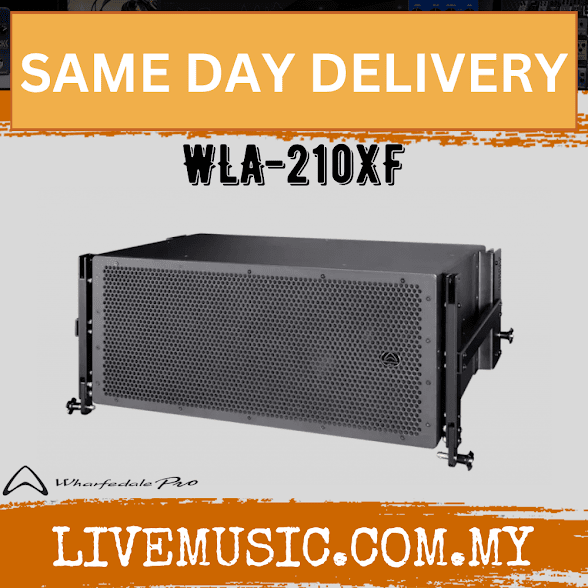

WHARFEDALE PRO WLA-210XF Series 890 Watts RMS Dual 10" Waterproof 2-Way Passive Line Array Loudspeaker (WLA 210XF WLA210XF)

Description

Features

  • 2 x 10″ LF drivers

  • 3″ Neodymium HF compression driver

  • 138 dB Max SPL

  • 15mm / 18mm Birch plywood construction

  • Integral, side plate adjustable rigging system

  • 100° x 10° dispersion

  • 180 watts programme HF

  • 1600 watts programme LF

  • 16 Ω impedance.



SPECIFICATIONS.





Model Name

WLA-210XF

System Type

IPX6 waterproof

Configuration

Two-way 2 x 10”

Freq Response (+/-3 dB)

65 Hz – 20 KHz

Freq Range (-10 dB)

60 Hz – 20 KHz

Sensitivity (2.83 v / 1 m)

102 dB

Calc Max SPL @1 m

138 dB

System Impedance

16 Ω

LF Transducer



Size

2 x 260 mm / 2 x 10”

Voice Coil Size

65 mm / 2.5”

Rated Impedance

2 x 8 Ω

LF Power (re:AES2-2012)

2 x 400 W

HF Transducer



Compression driver

Neo

Voice Coil Size

75 mm / 3.0”

Exit Size

35.6 mm / 1.4”

Diaphragm Material

Titanium

Rated Impedance

8 Ω

HF (re:AES2-2012)

90 W

Coverage (H x V)

100° x 10°

Power



Continuous Power

LF:800 W HF:90 W

Programme Power

LF:1600 W HF:180 W

Peak Power

LF:3200 W HF:360 W

Crossover frequency

1.5 KHz

Operational Modes:

No

Input Connector

2 x WY-24K4Z (waterproof)

Hardware

Integral – adjustable



rigging 0°-10°

Enclosure Material

15 mm, 18 mm Ply

Finish

Waterproof Paint

Grille Material

3.0 mm Aluminium

Dims- (Unpacked)



Height Front

333.3 mm / 13.1″

Height Rear

256.3 mm / 10.0″

Width

845 mm / 33.3″

Depth

443 mm / 17.4″

Dims – (Packed)



Height

953 mm / 37.5″

Width Front

424 mm / 16.7″

Width Rear

424 mm / 16.7″

Depth

513 mm / 20.2″

Weight



Net Weight

46.0 kg / 101.2 lbs

Gross Weight

50.0 kg / 110.0 lbs



WHARFEDALE PRO WLA-210XF Series 890 Watts RMS Dual 10" Waterproof 2-Way Passive Line Array Loudspeaker (WLA 210XF WLA210XF)
