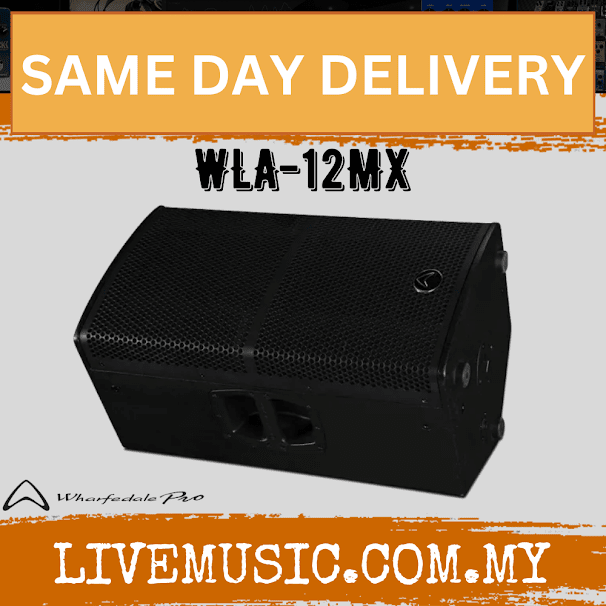

WHARFEDALE PRO WLA-12MX Series 500 Watts RMS 12" 2-Way Passive Floor Monitor Speaker (WLA12MX WLA 12MX)

Description



To answer this need Wharfedale Pro introduce WLA series floor monitors. Constructed of the finest 15mm Baltic birch plywood and using custom Wharfedale Pro drivers with high flux densities, they have the performance and construction quality for relentless touring and demanding on-stage abuse.



FEATURES

  • 12″ 2-way passive floor monitor

  • 3.0″ LF voice coil

  • 3.0″ Newly designed Neo HF compression driver

  • Baltic Birch plywood construction

  • Rotatable waveguide

  • 35 mm pole socket

  • 500 watts AES (RMS)

  • 1000 watts Programme

  • 2000 watts Peak

  • Max SPL @ 1 meter 131 dB



SPECIFICATIONS





Model Name

WLA-12MX

System Type

Passive

Configuration

Two-way Monitor

Frequency Response (+/-3 dB)

55-20 KHz

Frequency Range (- 10 dB)

50-20 KHz

Sensitivity 2.83 V / 1 M

98 dB

Calculated Maximum SPL @1 M

131 dB

System Rated Impedance

8 Ω

Low Frequency Transducer



LF Size (mm / inches)

331 mm / 12″

LF Voice Coil Size (mm / inches)

76.2 mm / 3″

LF Magnet Material

ferrite

LF Frame Material

aluminium

Rated Impedance

8 Ω

LF Power re:AES2-2012

500 W

High Frequency Transducer



HF Driver Type

Compression Driver

Coil Size (mm / inches)

75 mm / 3.0″

Exit Size (mm / inches)

35.5 mm / 1.4″

HF Magnet Material

NdFeB

Diaphragm Material

Titanium

Rated Impedance

8 Ω

HF Power re:AES2-2012

90 W

Waveguide Type

square

Nominal Coverage (H x V)

90° x 60° (Rotatable)

Power



System Continuous Power (w)

500 W

System Programme Power (w)

1000 W

System Peak Power (w)

2000 W

Input Connector

4 x NL4MP

(speakON Compatible)

Rigging

M10 x 10

pole mount

35 mm

handles

2 on Sides

Enclosure



cabinet type

polygon

Enclosure Material and finish

15 mm plywood

Colour Options

black paint

Grille Material & Finish

steel

Dimensions – Unpacked (mm / inches):



Height

658 mm / 25.9″

Width

372 mm / 14.6″

Depth

400.1 mm / 15.8″

Dimensions – Packed (mm / inches):



Height

746 mm / 29.4″

Width

442 mm / 17.4″

Depth

470 mm / 18.5″

Weight



Net Weight (kg / lbs)

25.5 kg / 56.1 lbs

Gross Weight (kg / lbs)

27.8 kg / 61.2 lbs
