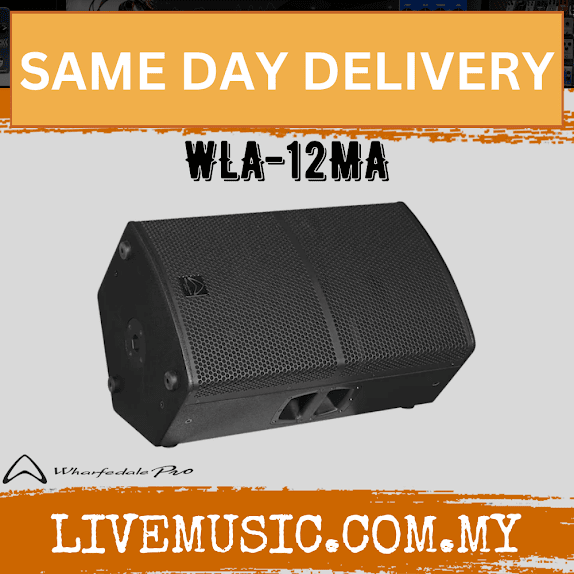

Wharfedale Pro WLA-12MA Active Monitors Speaker (WLA12MA WLA 12MA)

Description

The WLA-A Series active monitors feature….

35 mm pole sockets PLUS 8 x M10 rigging points.  This means that they can be used in a wide variety of applications.  From install to onstage.  From FOH to monitor.



FEATURES

  • 12″ Active floor monitor

  • 131 dB Max SPL @ 1 meter

  • 15 mm Birch plywood construction

  • 90° x 60° dispersion

  • 650 W LF + 100 W HF Continuous

  • 1300 W LF + 200 W HF Peak

  • 8 x DSP presets including FIR



SPECIFICATIONS





Model Name

WLA-12MA

System Type

Active 12” 2-way Monitor Bi-Amplified

Frequency Response (+/-3 dB)

55 Hz-20 KHz

Frequency Range (-10 dB)

50 Hz-20 KHz

Loudspeaker Sensitivity @ 1 W / 1 m)

98 dB

Maximum SPL(peak)(@1 m)

131 dB

Nominal Coverage (H x V)

90° x 60°

Signal Processing

DSP based,8 FIR presets resident in Input Module

Preset list

A) WEDGE

B) WEDGE HPF

C) COUPLED

D) COUPLED HPF

E) FOH

F) FOH HPF

G) CUSTOM

H) CUSTOM

Amplifiers



Amplifier Design

Class D

Power Rating:

1500 W Peak (1300 W LF +

200 W HF), 750 W Continuous

(650 W LF + 100 W HF)

Power On Protection

Power switch on/off mute

Thermal Protection

Amplifier Shut Down. Auto Reset

Low Line Voltage Shut Down

80% Nominal Line Voltage

Driver Protection

Independent L/ H Limiters and DC

DC and Short Protection

Yes

Limiter Indicator

Red LED

Signal Indicator

Green LED

Power/Active Indicator

White LED

Find Function Indicator

Blue LED

Input Sensitivity

+4 dBu

Maximum Input Level

+18 dBu

Input Impedance

Balanced: 10 KΩ

AC Power details – Power Supply

High Efficiency Switching Mode Power Supply

Connectors



Input Connector

XLR 1/ 4〞Combo jack

Link Connector

Balanced pin XLR Connector

UPDATE

USB Type B

NETWORK (RS485)

RJ45

AC Power Options

AC 100-120 V~/ 220-240 V~,50/60 HZ

AC Input Connector

powerCON

AC Loop Through Connector

powerCON

Hardware – Rigging

M10 x 8

Enclosure Material and finish

15 mm Plywood

Colour Options

black paint

Grille Material & Finish

1.5 Steel

Unpacked dimensions – Height

658 mm / 25.9″

Width (Front)

372 mm / 14.6″

Width (Back)



Depth

400.1 mm / 15.8″

Packed Dimensions – Height

738 mm / 29.1″

Width (Front)

470 mm / 18.5″

Width (Back)

470 mm / 18.5″

Depth

445 mm / 17.5″

Net Weight (Kg / lbs)

26.5 Kg / 58.3 lbs

Gross Weight (Kg / lbs)

28.8 Kg / 63.4 lbs
