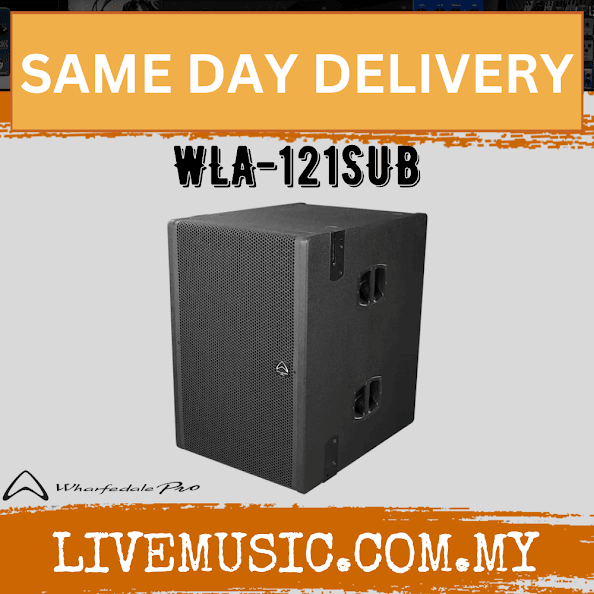

Wharfedale Pro WLA-121SUB - 21" Passive Subwoofer Speaker (WLA 121SUB WLA121SUB)

Description

FEATURES

  • 21″ Beyma driver

  • 1600 W Continuous

  • 3200 W Programme

  • 6400 W Peak

  • 4.0″ Quattro LF voice coil (4 layers)

  • 147 dB System Peak SPL



SPECIFICATIONS





Model Name

WLA-121SUB

Design

Subwoofer

System Type

21″ Subwoofer

Configuration

Single Subwoofer

Frequency Response (+/-3 dB)

25 Hz – 100Hz

Frequency Range (- 10 dB)

18 Hz – 125 Hz

Sensitivity 2.83 V/1 m

103 dB*

Calculated Maximum SPL @ 1 m

141 dB*

System Peak SPL

147 dB**

System Rated Impedance

4 Ω

*

level at 1 m under half space conditions using pink noise with crest factor 2, with dedicated preset.

**

level at 1 m under free field conditions using pink noise with crest factor 4, with dedicated preset.

Low Frequency Transducer



Size

545 mm / 21″

Voice Coil Size

101.6 mm / 4.0″ QUATTRO (4 layers)

LF Frame Material

Aluminium

High Frequency Transducer



HF Driver Type

/

Coil Size (mm / inches)

/

Exit Size (mm / inches)

/

Diaphragm Material

/

Waveguide Type

/

Nominal Coverage (HxV)

/

Special Features

Aluminium demodulating ring



Waterproof LF cone



Malt Cross® TCS

Power(AES2)



System Continuous Power (W)

1600

System Programme Power (W)

3200

System Peak Power (W)

6400

Crossover Frequency

100 Hz

Recommended HPF = BW 18 dB/oct.

20 Hz

Input Connector

2 x speakON compatible

Rigging & Hardware:

3 points for rigging

Vertical Splay angle range:

/

Horizontal Splay angle

/

Optional Accessories

WLA-1 Common Fly Frame

Hardware

–

Stand pole:

M20 Pole mount

Handles:

2 side（4 pcs) + 2 (top / bottom)

Enclosure



Cabinet Type

Rectangular

Enclosure Material and finish

18 mm plywood / Rhino Rock

Colour

Black paint

Grille Material & Finish

Powder coated perforated steel

Dimensions – Unpacked:



Height Front

820 mm / 32.3″

Height Rear

/

Width

566 mm / 23.4″

Depth

760 mm / 29.9″

Dimensions – Packed:



Height

895 mm / 35.2″

Width Front

656 mm / 25.8″

Width Rear

/

Depth

850 mm / 33.5″

Weight



Net Weight

70.5 Kg

Gross Weight

76.5 Kg
