FEATURES 15″ Coaxial Beyma driver 500 W Continuous 1000 W Programme 2000 W Peak 4.0″ LF voice coil 2.87″ HF voice coil 141 dB System Peak SPL SPECIFICATIONS Model Name WLA-115 Design Hybrid Curvature Array System Type 15″ coaxial passive Configuration two-way... Read more
SKU: WLA115
FEATURES
15″ Coaxial Beyma driver
500 W Continuous
1000 W Programme
2000 W Peak
4.0″ LF voice coil
2.87″ HF voice coil
141 dB System Peak SPL
SPECIFICATIONS
Model Name |

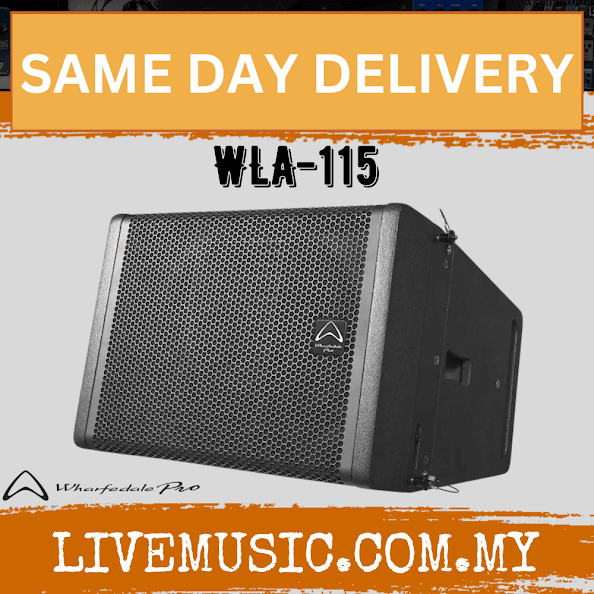

WLA-115 |
Design |
Hybrid Curvature Array |
System Type |
15″ coaxial passive |
Configuration |
two-way |
Frequency Response (+/-3 dB) |
42 Hz – 20 KHz |
Frequency Range (- 10 dB) |
25 Hz – 25 KHz |
Sensitivity 2.83 V/1 m |
102 dB |
Calculated Maximum SPL @ 1 m |
135 dB |
System Peak SPL |
141 dB** |
System Rated Impedance |
8 Ω |
* |
|
** |
level at 1 m under free field conditions using pink noise with crest factor 4, with dedicated preset. |
Low Frequency Transducer |
|
Size |
388 mm / 15” |
Voice Coil Size |
101.6 mm / 4.0” |
LF Frame Material |
Aluminium |
High Frequency Transducer |
|
HF Driver Type |
Compression Driver |
Coil Size (mm / inches) |
72.2 mm / 2.87″ |
Exit Size (mm / inches) |
38.1mm / 1.5″ |
Diaphragm Material |
Composite titanium / polyester |
Waveguide Type |
EVO-Fold® |
Nominal Coverage (HxV) |
100° x 20° |
Special Features |
|
|
Waterproof LF cone |
|
|
Power(AES2) |
|
System Continuous Power (W) |
500 |
System Programme Power (W) |
1000 |
System Peak Power (W) |
2000 |
Crossover Frequency |
1.2 KHz |
Recommended HPF = BW 18 dB/oct. |
25 Hz |
Input Connector |
2 x speakON compatible |
Rigging & Hardware: |
3 points for rigging |
Vertical Splay angle range: |
0°- 5° – 10° – 15° |
Horizontal Splay angle |
15° |
Optional Accessories |
WLA-1 Common Fly Frame |
Hardware |
WLA-1 Link |
Stand pole: |
Dual Angle -2.5° / + 7.5° |
Handles: |
2 side / 2 back |
Enclosure |
|
Cabinet Type |
Trapezoid |
Enclosure Material and finish |
15 mm plywood / Rhino Rock |
Colour |
Black paint |
Grille Material & Finish |
Powder coated perforated steel |
Dimensions – Unpacked: |
|
Height Front |
408 mm / 16.1″ |
Height Rear |
302 mm / 11.8″ |
Width |
566 mm / 23.4″ |
Depth |
543 mm / 16.5″ |
Dimensions – Packed: |
|
Height |
661 mm / 26.0″ |
Width Front |
630 mm / 24.8″ |
Width Rear |
630 mm / 24.8″ |
Depth |
490 mm / 19.3″ |
Weight |
|
Net Weight |
34.5 Kg |
Gross Weight |
37.5 Kg |
