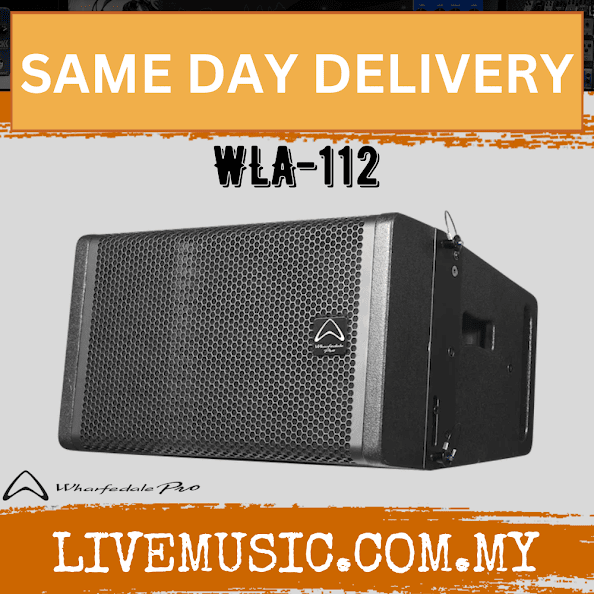

Wharfedale Pro WLA-112 12" Passive Hybrid Curvature Element Speaker (WLA112 WLA 112)

Description

FEATURES

  • 12″ Coaxial Beyma driver

  • 450 W Continuous

  • 900 W Programme

  • 1800 W Peak

  • 4.0″ LF voice coil

  • 2.87″ HF voice coil

  • 139 dB System Peak SPL



SPECIFICATIONS





Model Name

WLA-112

Design

Hybrid Curvature Array

System Type

12″ coaxial passive

Configuration

two-way

Frequency Response (+/-3 dB)

55 Hz – 20 KHz

Frequency Range (- 10 dB)

35 Hz – 25 KHz

Sensitivity 2.83 V/1 m

101 dB

Calculated Maximum SPL @ 1 m

133 dB

System Peak SPL

139 dB**

System Rated Impedance

8 Ω

*



**

level at 1 m under free field conditions using pink noise with crest factor 4, with dedicated preset.

Low Frequency Transducer



Size

312 mm / 12”

Voice Coil Size

101.6 mm / 4.0”

LF Frame Material

Aluminium

High Frequency Transducer



HF Driver Type

Compression Driver

Coil Size (mm / inches)

72.2 mm / 2.87″

Exit Size (mm / inches)

38.1mm / 1.5″

Diaphragm Material

Composite titanium / polyester

Waveguide Type

EVO-Fold®

Nominal Coverage (HxV)

100° x 20°

Special Features

Copper Demodulating rings in both LF and HF units



Waterproof LF cone



Shared High performing Ferrite magnet system design

Power(AES2)



System Continuous Power (W)

450

System Programme Power (W)

900

System Peak Power (W)

1800

Crossover Frequency

1.2 KHz

Recommended HPF = BW 18 dB/oct.

30 Hz

Input Connector

2 x speakON compatible

Rigging & Hardware:

3 points for rigging

Vertical Splay angle range:

0°- 5° – 10° – 15°

Horizontal Splay angle

15°

Optional Accessories

WLA-1 Common Fly Frame

Hardware

WLA-1 Link

Stand pole:

Dual Angle -2.5° / +7.5°

Handles:

2 side / 2 back

Enclosure



Cabinet Type

Trapezoid

Enclosure Material and finish

15 mm plywood / Rhino Rock

Colour

Black paint

Grille Material & Finish

Powder coated perforated steel

Dimensions – Unpacked:



Height Front

332 mm / 13.1″

Height Rear

246.4 mm / 9.7″

Width

566 mm / 22.3″

Depth

465 mm / 18.3″

Dimensions – Packed:



Height

661 mm / 26.0″

Width Front

550 mm / 21.7″

Width Rear

550 mm / 21.7″

Depth

410 mm / 16.7″

Weight



Net Weight

29.4 Kg

Gross Weight

31.8 Kg



Wharfedale Pro WLA-112 12" Passive Hybrid Curvature Element Speaker (WLA112 WLA 112)
