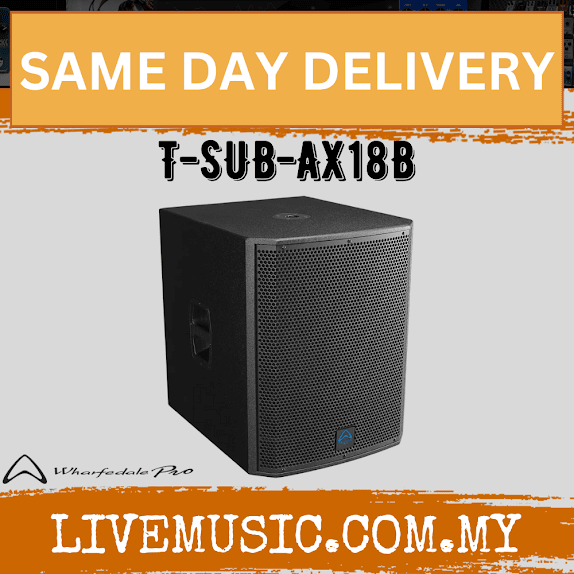

WHARFEDALE PRO T-SUB-AX18B Series 900 Watts RMS 18" Active Subwoofer (TSUBAX18B/T SUB AX18B)

Description

That is exactly why we have created the T-Sub-AX series of active subwoofers.



Features

  • 18″ Active sub

  • Quad layer driver

  • 3.0″ voice coil

  • 900 W Continuous

  • 1800 W Peak



SPECIFICATIONS





Model Name

T-Sub-AX18B

System Type

Active 18″ Subwoofer

Frequency Response (+/-3 dB)

40 Hz-200 Hz

Frequency Response (+/-10 dB)

35 Hz-250 Hz

Sensitivity @ 1 w / 1 meter

97 dB

Maximum SPL (peak @ 1 meter) Half space.

133 dB

Low Frequency Transducer



Size (mm / inches)

18”

Coil Size (mm / inches)

Quad layer 3.0″

Impedance

4 Ω

Amplifier



Low-Frequency Power Amplifier (Class D)

900 W Continuous / 1800 W Peak

Crossover Frequency

LPF 80-200 Hz (adjustable)

Controls



Amplifier Protection

Yes

Power On Protection

Power switch on / off mute

Thermal Protection

Amplifier shutdown, auto reset

Driver Protection

Yes

DC Protection

Yes

Short Protection

Yes

Limiter Indicator

Red LED

Input type

Balanced

Input Connector

2 x socket XLR

Input Impedance

47 kΩ Balanced

Maximum Input Level

5 V

Input Sensitivity

-10 dBu

Link Output Connector

2 x pin XLR

Polarity Switch Selection

0° / 180°

AC Power details



Power Supply

SMPS

AC Power Options

100 V-120 V and 200 V-240 V

Power Indicator

Green (back) / Blue logo (front)

Enclosure



Enclosure Material

15 mm Plywood

Colour

Black

Paint

Tough-Tone

Grille

1.5 mm steel

Pole Mount (Top)

35 mm

Dimensions (Unpacked)(mm / inches)



Height

650 mm / 25.6″

Width

528 mm / 20.6″

Depth

638.8 mm / 25.2″

Dimensions (packed)(mm / inches)



Height

740 mm / 29.0″

Width

725 mm / 28.5″

Depth

614 mm / 24.2″

Weight



Net Weight (kg / lbs)

36.5 kg / 80.5 lbs

Gross Weight (kg / lbs)

44.5 kg / 98 lbs
