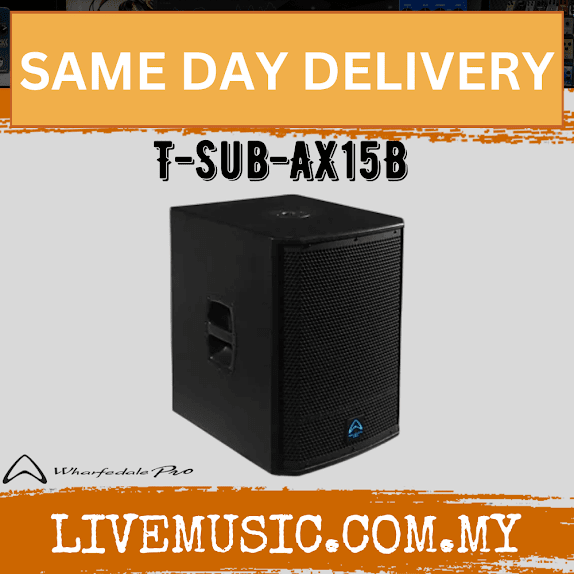

WHARFEDALE PRO T-SUB-AX15B Series 700 Watts RMS 15" Active Subwoofer (TSUBAX15B/T SUB AX15B)

Description

That is exactly why we have created the T-Sub-AX15B – our 700 W Continuous, 1400 W Peak 15” active subwoofer.



SPECIFICATIONS





Model Name

T-Sub-AX15B

System Type

Active 15″ Subwoofer

Frequency Response (+/-3 dB)

45 Hz-200 Hz

Sensitivity @ 1W / 1 m)

97 dB

Maximum SPL (peak @ 1 m)

129 dB

Low Frequency Transducer



Size (mm / inches)

404 mm / 15”

Coil Size (mm / inches)

Quad layer 3.0″

Impedance

4Ω

Amplifier



Low-Frequency Power Amplifier (Class D)

700 w Continuous / 1400 w Peak

Crossover Frequency

LPF 80-200 Hz (adjustable)

Controls



Amplifier Protection

Yes

Power On Protection

Power switch on / off mute

Thermal Protection

Amplifier shutdown, auto reset

Driver Protection

Yes

DC Protection

Yes

Short Protection

Yes

Limiter Indicator

Red LED

Input type

Balanced

Input Connector

socket XLR

Input Impedance

47 KΩ Balanced

Maximum Input Level

5V

Input Sensitivity

-10 dB

Line Output Connector

pin XLR

Phase Switch Selection

0° / 180°

AC Power details



Power Supply

SMPS

AC Power Options

100V-120V and 200V-240V

Power Indicator

Green(back) / Blue logo(front)

Enclosure



Enclosure Material

15 mm Plywood

Colour

Black

Grille

1.5 mm steel

Pole Mount (Top)

35 mm

Dimensions (Unpacked):



Height

591 mm / 23.27″

Width

454 mm / 17.9″

Depth

523.9 mm / 20.63″

Dimensions (packed):



Height

689 mm / 27.1″

Width

544 mm / 21.4″

Depth

610 mm / 24.0″

Weight



Net Weight (kg / lbs)

25.7 kg / 56.5lbs

Gross Weight (kg / lbs)

29.5 kg / 64.9lbs



WHARFEDALE PRO T-SUB-AX15B Series 700 Watts RMS 15" Active Subwoofer (TSUBAX15B/T SUB AX15B)

Product form

RM3,610.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: T-SUB-AX15B

Free Shipping · West Malaysia You make the music. We deliver the gear. Free delivery on this item, straight to your door.
    Same Day Delivery via Lalamove
    Joe

    Can't decide? Chat With Us.

    Our sales team is ready to help you find the right fit.

    Joe · Sales & Support

    +60 16-215 2653

    Why Choose Us!
    Shipping Delivery details and timelines. Inspected Before Delivery Every item is checked before it ships. Price Match Found it cheaper? Let us know. Warranty Warranty coverage and how to claim. Installment Flexible ways to pay over time. Our Background Supporting Local musicians, supported by the local community.

    Description

    That is exactly why we have created the T-Sub-AX15B – our 700 W Continuous, 1400 W Peak 15” active subwoofer.



    SPECIFICATIONS





    Model Name

    T-Sub-AX15B

    System Type

    Active 15″ Subwoofer

    Frequency Response (+/-3 dB)

    45 Hz-200 Hz

    Sensitivity @ 1W / 1 m)

    97 dB

    Maximum SPL (peak @ 1 m)

    129 dB

    Low Frequency Transducer



    Size (mm / inches)

    404 mm / 15”

    Coil Size (mm / inches)

    Quad layer 3.0″

    Impedance

    4Ω

    Amplifier



    Low-Frequency Power Amplifier (Class D)

    700 w Continuous / 1400 w Peak

    Crossover Frequency

    LPF 80-200 Hz (adjustable)

    Controls



    Amplifier Protection

    Yes

    Power On Protection

    Power switch on / off mute

    Thermal Protection

    Amplifier shutdown, auto reset

    Driver Protection

    Yes

    DC Protection

    Yes

    Short Protection

    Yes

    Limiter Indicator

    Red LED

    Input type

    Balanced

    Input Connector

    socket XLR

    Input Impedance

    47 KΩ Balanced

    Maximum Input Level

    5V

    Input Sensitivity

    -10 dB

    Line Output Connector

    pin XLR

    Phase Switch Selection

    0° / 180°

    AC Power details



    Power Supply

    SMPS

    AC Power Options

    100V-120V and 200V-240V

    Power Indicator

    Green(back) / Blue logo(front)

    Enclosure



    Enclosure Material

    15 mm Plywood

    Colour

    Black

    Grille

    1.5 mm steel

    Pole Mount (Top)

    35 mm

    Dimensions (Unpacked):



    Height

    591 mm / 23.27″

    Width

    454 mm / 17.9″

    Depth

    523.9 mm / 20.63″

    Dimensions (packed):



    Height

    689 mm / 27.1″

    Width

    544 mm / 21.4″

    Depth

    610 mm / 24.0″

    Weight



    Net Weight (kg / lbs)

    25.7 kg / 56.5lbs

    Gross Weight (kg / lbs)

    29.5 kg / 64.9lbs
