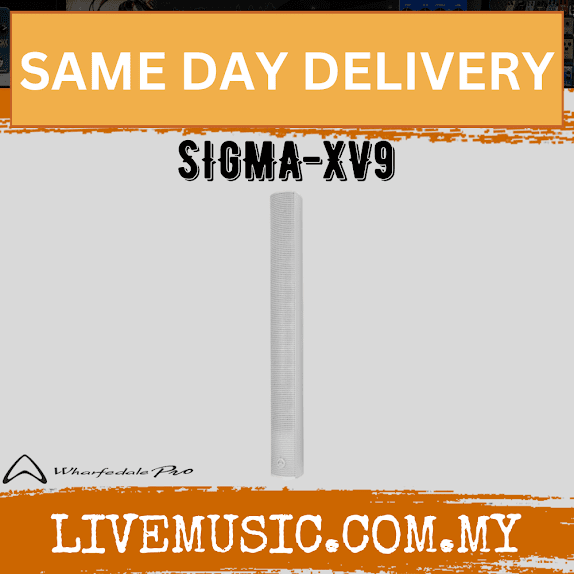

WHARFEDALE PRO SIGMA-XV9 1440W PEAK 3" 2-WAY LOUDSPEAKER-WHITE (SIGMA XV9/SIGMAXV9)

Description

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON and barrier strip inputs.  It is another small step that makes the installation easy.



Key Features

●9 x 3″ full range drivers

  • 2 x HF compression driver

  • 360 W AES (Continuous)

  • 720 W Programme

  • 1440 W Peak

  • 128 dB Max SPL @ 1 m

  • 70 V / 100 V Hi-Z model available





SPECIFICATIONS





Model Name

SIGMA-XV9

System Type

Passive

Configuration

Two-Way

Frequency Response (+/-3 dB)

130 Hz – 18 KHz

Frequency Range (-10 dB)

120 Hz – 20 KHz

Sensitivity 2.83 V / 1 m

97 dB

Calculated Maximum SPL @1 m

128 dB

System Rated Impedance

4 Ω

Low Frequency Transducer



Size (mm / inches)

9 x 75 mm / 3″

Voice Coil Size (mm / inches)

33 mm / 1.3″

Rated Impedance

4 Ω

LF Power re:AES2-2012

40 W

High Frequency Transducer



HF Driver Type

2 x 1″ High Frequency drivers

Coil Size (mm / inches)

25.4 mm / 1″

Exit Size (mm / inches)

25.4 mm / 1″

Diaphragm Material

PEI

Rated Impedance

n/a

HF Power re:AES2-2012

n/a

Waveguide Type

Mini EVO-Fold

Nominal Coverage (H x V)

120˚ x 20˚

LF Driver

9 x 3″

HF Driver

2 x 1″ PEI EVO-Fold Driver

Power



System Continuous Power

360 W

System Programme Power

720 W

System Peak Power

1440 W

Transformer (T)



Transformer Taps (70 V)



Transformer Taps (100 V)



Crossover frequency

2.5 KHz

Recommended HPF

= BW 18 dB/oct.

160 Hz

Input Connector

1 x speakON / 1x Barrier Strip

Hardware

U Bracket included

Enclosure



Enclosure Material

Aluminum

Finish

Black Paint / White Paint

Grille Material & Finish

1.2 mm steel, painted

Dimensions – Unpacked



Height

1210 mm / 47.6″

Width Front

126 mm / 4.96″

Width Rear

92 mm / 3.62″

Depth

145 mm / 5.71″

Dimensions – Packed



Height

1285 mm / 50.6″

Width Front

210 mm / 8.27″

Width Rear

210 mm / 8.27″

Depth

210 mm / 8.27″

Weight



Net Weight

10.1 kg / 22.2 lbs

Gross Weight

11.6 kg / 25.5 lbs

Optional Wall-mount bracket

WPB-SV





WHARFEDALE PRO SIGMA-XV9 1440W PEAK 3" 2-WAY LOUDSPEAKER-WHITE (SIGMA XV9/SIGMAXV9)
