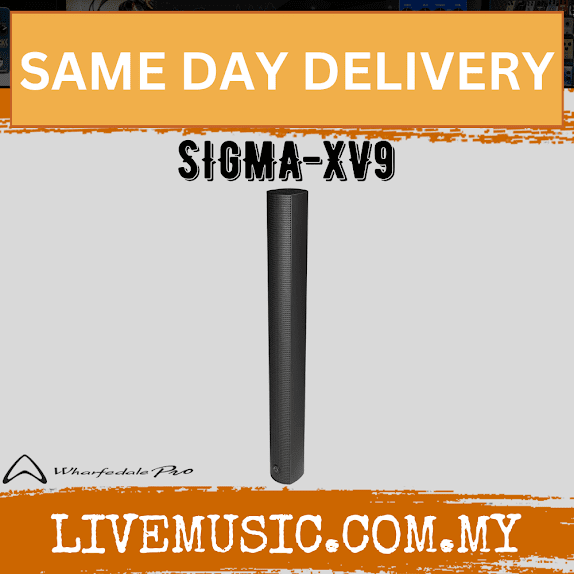

WHARFEDALE PRO SIGMA-XV9 1440W PEAK 3" 2-WAY LOUDSPEAKER-BLACK/WHITE (SIGMA XV9/SIGMAXV9)

  • Sale -6%

WHARFEDALE PRO SIGMA-XV9 1440W PEAK 3" 2-WAY LOUDSPEAKER-BLACK/WHITE (SIGMA XV9/SIGMAXV9)

Product form

RM3,720.00  RM3,483.00

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON and barrier strip inputs.  It is another small step that makes the installation easy.   Key Features ●9 x 3″ full range drivers 2 x HF compression driver 360 W AES (Continuous) 720 W Programme 1440 W Peak 128 dB Max SPL @ 1 m 70 V / 100 V Hi-Z model available     SPECIFICATIONS    Model Name SIGMA-XV9 System Type Passive Configuration Two-Way... Read more

SKU: SIGMAXV9-BK

    Description

    All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON and barrier strip inputs.  It is another small step that makes the installation easy.



    Key Features

    ●9 x 3″ full range drivers

    • 2 x HF compression driver

    • 360 W AES (Continuous)

    • 720 W Programme

    • 1440 W Peak

    • 128 dB Max SPL @ 1 m

    • 70 V / 100 V Hi-Z model available





    SPECIFICATIONS





    Model Name

    SIGMA-XV9

    System Type

    Passive

    Configuration

    Two-Way

    Frequency Response (+/-3 dB)

    130 Hz – 18 KHz

    Frequency Range (-10 dB)

    120 Hz – 20 KHz

    Sensitivity 2.83 V / 1 m

    97 dB

    Calculated Maximum SPL @1 m

    128 dB

    System Rated Impedance

    4 Ω

    Low Frequency Transducer



    Size (mm / inches)

    9 x 75 mm / 3″

    Voice Coil Size (mm / inches)

    33 mm / 1.3″

    Rated Impedance

    4 Ω

    LF Power re:AES2-2012

    40 W

    High Frequency Transducer



    HF Driver Type

    2 x 1″ High Frequency drivers

    Coil Size (mm / inches)

    25.4 mm / 1″

    Exit Size (mm / inches)

    25.4 mm / 1″

    Diaphragm Material

    PEI

    Rated Impedance

    n/a

    HF Power re:AES2-2012

    n/a

    Waveguide Type

    Mini EVO-Fold

    Nominal Coverage (H x V)

    120˚ x 20˚

    LF Driver

    9 x 3″

    HF Driver

    2 x 1″ PEI EVO-Fold Driver

    Power



    System Continuous Power

    360 W

    System Programme Power

    720 W

    System Peak Power

    1440 W

    Transformer (T)



    Transformer Taps (70 V)



    Transformer Taps (100 V)



    Crossover frequency

    2.5 KHz

    Recommended HPF

    = BW 18 dB/oct.

    160 Hz

    Input Connector

    1 x speakON / 1x Barrier Strip

    Hardware

    U Bracket included

    Enclosure



    Enclosure Material

    Aluminum

    Finish

    Black Paint / White Paint

    Grille Material & Finish

    1.2 mm steel, painted

    Dimensions – Unpacked



    Height

    1210 mm / 47.6″

    Width Front

    126 mm / 4.96″

    Width Rear

    92 mm / 3.62″

    Depth

    145 mm / 5.71″

    Dimensions – Packed



    Height

    1285 mm / 50.6″

    Width Front

    210 mm / 8.27″

    Width Rear

    210 mm / 8.27″

    Depth

    210 mm / 8.27″

    Weight



    Net Weight

    10.1 kg / 22.2 lbs

    Gross Weight

    11.6 kg / 25.5 lbs

    Optional Wall-mount bracket

    WPB-SV
