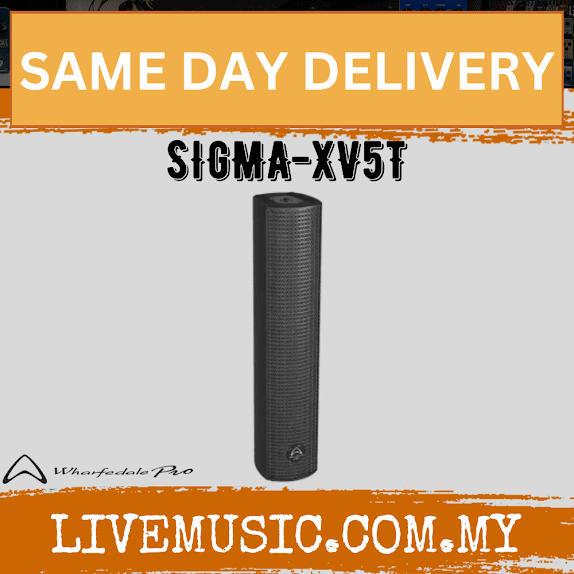

WHARFEDALE PRO SIGMA-XV5T 720W PEAK 3" 2-WAY LOUDSPEAKER- BLACK (SIGMA XV5T/SIGMAXV5T)

Description

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON and barrier strip inputs.  It is another small step that makes the installation easy.



Key Features

●5 x 3″ full range drivers

  • 1 x HF compression driver

  • 180 W AES (Continuous)

  • 360 W Programme

  • 720 W Peak

  • 123 dB Max SPL @ 1 m

  • 70 V / 100 V Hi-Z model available





SPECIFICATIONS







Model Name

SIGMA-XV5T

System Type

Passive

Configuration

Two-Way

Frequency Response (+/-3 dB)

160 Hz – 18 KHz

Frequency Range (-10 dB)

150 Hz – 20 KHz

Sensitivity 2.83 V / 1 m

95 dB

Calculated Maximum SPL @1 m

123 dB

System Rated Impedance

8 Ω

Low Frequency Transducer



Size (mm / inches)

5 x 75 mm / 3″

Voice Coil Size (mm / inches)

33 mm / 1.3″

Rated Impedance

4 Ω

LF Power re:AES2-2012

40 W

High Frequency Transducer



HF Driver Type

1 x 1″ High Frequency driver

Coil Size (mm / inches)

25.4 mm / 1″

Exit Size (mm / inches)

25.4 mm / 1″

Diaphragm Material

PEI

Rated Impedance

n/a

HF Power re:AES2-2012

n/a

Waveguide Type

Mini EVO-Fold

Nominal Coverage (H x V)

120˚ x 30˚

LF Driver

5 x 3″

HF Driver

1 x 1″ PEI EVO-Fold Driver

Power



System Continuous Power

180 W

System Programme Power

360 W

System Peak Power

720 W

Transformer (T)

100 V / 70 V

Transformer Taps (70 V)

7.5,15,30,60 W

Transformer Taps (100 V)

15,30,60 W

Crossover frequency

2.5 KHz

Recommended HPF

= BW 18 dB/oct.

160 Hz

Input Connector

Barrier Strip

Hardware

U Bracket included

Enclosure



Enclosure Material

Aluminum

Finish

Black Paint / White Paint

Grille Material & Finish

1.2 mm steel, painted

Dimensions – Unpacked



Height

720 mm / 28.3″

Width Front

126 mm / 4.96″

Width Rear

92 mm / 3.62″

Depth

145 mm / 5.71″

Dimensions – Packed



Height

865 mm / 30.1″

Width Front

210 mm / 8.27″

Width Rear

210 mm / 8.27″

Depth

210 mm / 8.27″

Weight



Net Weight

8.4 kg / 18.4 lbs

Gross Weight

9.2 kg / 20.24 lbs

Optional Wall-mount bracket

WPB-SV





WHARFEDALE PRO SIGMA-XV5T 720W PEAK 3" 2-WAY LOUDSPEAKER- BLACK (SIGMA XV5T/SIGMAXV5T)

Product form

RM2,720.00  RM2,196.00 Sale 19%

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: SIGMAXV5T-BK

    Same Day Delivery via Lalamove

    Description

    All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON and barrier strip inputs.  It is another small step that makes the installation easy.



    Key Features

    ●5 x 3″ full range drivers

    • 1 x HF compression driver

    • 180 W AES (Continuous)

    • 360 W Programme

    • 720 W Peak

    • 123 dB Max SPL @ 1 m

    • 70 V / 100 V Hi-Z model available





    SPECIFICATIONS







    Model Name

    SIGMA-XV5T

    System Type

    Passive

    Configuration

    Two-Way

    Frequency Response (+/-3 dB)

    160 Hz – 18 KHz

    Frequency Range (-10 dB)

    150 Hz – 20 KHz

    Sensitivity 2.83 V / 1 m

    95 dB

    Calculated Maximum SPL @1 m

    123 dB

    System Rated Impedance

    8 Ω

    Low Frequency Transducer



    Size (mm / inches)

    5 x 75 mm / 3″

    Voice Coil Size (mm / inches)

    33 mm / 1.3″

    Rated Impedance

    4 Ω

    LF Power re:AES2-2012

    40 W

    High Frequency Transducer



    HF Driver Type

    1 x 1″ High Frequency driver

    Coil Size (mm / inches)

    25.4 mm / 1″

    Exit Size (mm / inches)

    25.4 mm / 1″

    Diaphragm Material

    PEI

    Rated Impedance

    n/a

    HF Power re:AES2-2012

    n/a

    Waveguide Type

    Mini EVO-Fold

    Nominal Coverage (H x V)

    120˚ x 30˚

    LF Driver

    5 x 3″

    HF Driver

    1 x 1″ PEI EVO-Fold Driver

    Power



    System Continuous Power

    180 W

    System Programme Power

    360 W

    System Peak Power

    720 W

    Transformer (T)

    100 V / 70 V

    Transformer Taps (70 V)

    7.5,15,30,60 W

    Transformer Taps (100 V)

    15,30,60 W

    Crossover frequency

    2.5 KHz

    Recommended HPF

    = BW 18 dB/oct.

    160 Hz

    Input Connector

    Barrier Strip

    Hardware

    U Bracket included

    Enclosure



    Enclosure Material

    Aluminum

    Finish

    Black Paint / White Paint

    Grille Material & Finish

    1.2 mm steel, painted

    Dimensions – Unpacked



    Height

    720 mm / 28.3″

    Width Front

    126 mm / 4.96″

    Width Rear

    92 mm / 3.62″

    Depth

    145 mm / 5.71″

    Dimensions – Packed



    Height

    865 mm / 30.1″

    Width Front

    210 mm / 8.27″

    Width Rear

    210 mm / 8.27″

    Depth

    210 mm / 8.27″

    Weight



    Net Weight

    8.4 kg / 18.4 lbs

    Gross Weight

    9.2 kg / 20.24 lbs

    Optional Wall-mount bracket

    WPB-SV
