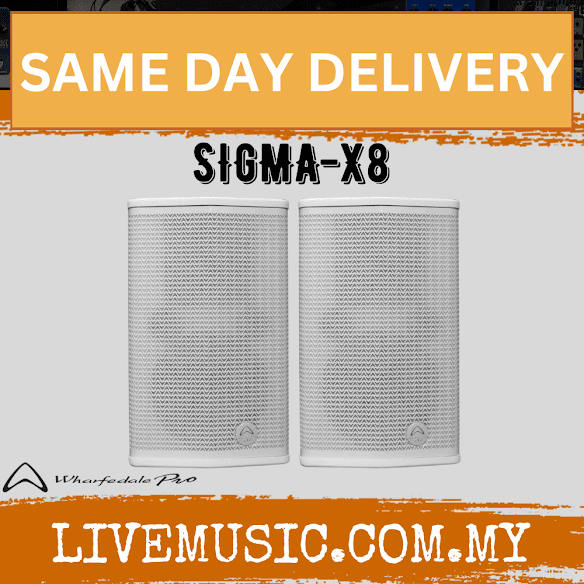

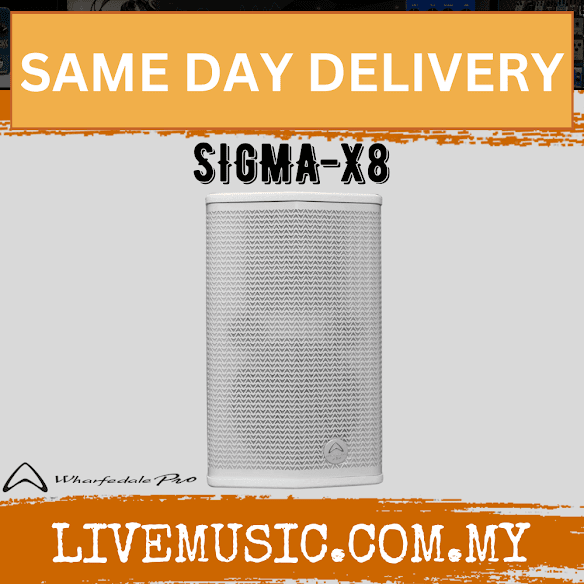

Wharfedale Pro Sigma X8 Passive Two-Way Speaker, Each / Pair - White (SIGMA-X8/SIGMAX8)

Description

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON and barrier strip inputs.  It is another small step that makes the installation easy.



Key Features

●150 W AES (Continuous)

  • 300 W Programme

  • 600 W Peak

  • 124 dB Max SPL @ 1 m



SPECIFICATIONS





Model Name

SIGMA-X8

System Type

Passive

Configuration

Two-Way

Frequency Response (+/-3 dB)

70 Hz – 18 KHz

Frequency Range (-10 dB)

65 Hz – 20 KHz

Sensitivity 2.83 V / 1 m

96 dB

Calculated Maximum SPL @1 m

124 dB

System Rated Impedance

8 Ω

Low Frequency Transducer



Size (mm / inches)

203 mm / 8”

Voice Coil Size (mm / inches)

38 mm / 1.5”

Rated Impedance

8 Ω

LF Power re:AES2-2012

150 W

High Frequency Transducer



HF Driver Type

Compression Driver

Coil Size (mm / inches)

44 mm / 1.75”

Exit Size (mm / inches)

1″

Diaphragm Material

Titanium

Rated Impedance

8 Ω

HF Power re:AES2-2012

40 W

Waveguide Type

Constant Directivity /

Rotatable

Nominal Coverage (H x V)

90˚ x 60˚

LF Driver

1 x 8″

HF Driver

1 x 1.75″ Titanium Compression Driver

Power



System Continuous Power

150 W

System Programme Power

300 W

System Peak Power

600 W

Crossover frequency

2.8 KHz

Recommended HPF

= BW 18 dB/oct.

55 Hz

Input Connector

2 x speakON / 1x Barrier Strip

Hardware

35 mm pole socket



M8 x 17



1 handle on back

Enclosure



Enclosure Material

15 mm MDF

Finish

Black Paint / White Paint

Grille Material & Finish

1.2 mm steel, painted

Dimensions – Unpacked



Height

465 mm / 18.3″

Width Front

284 mm / 11.2″

Width Rear

176 mm / 6.9″

Depth

282.7 mm / 11.1″

Dimensions – Packed



Height

505 mm / 19.9″

Width Front

364 mm / 14.3″

Width Rear

214.4 mm / 8.43″

Depth

333 mm / 13.1″

Weight



Net Weight

12.2 kg / 26.8 lbs

Gross Weight

13.5 kg / 29.7 lbs

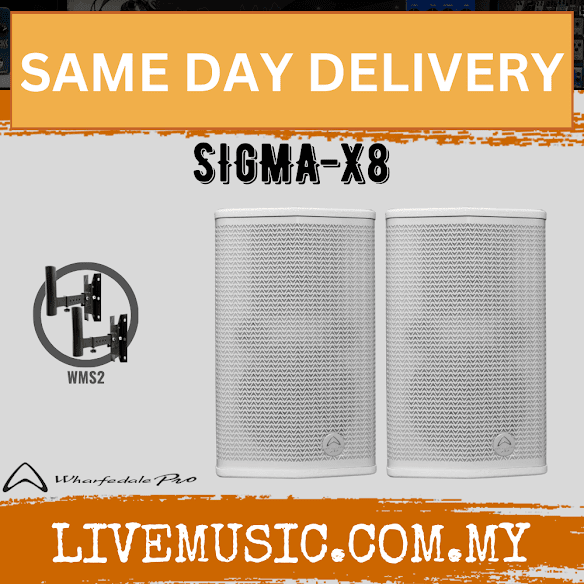

Optional Wall-mount bracket

WPB-1 / WPB-2





Wharfedale Pro Sigma X8 Passive Two-Way Speaker, Each / Pair - White (SIGMA-X8/SIGMAX8)

Product form

RM1,294.00  RM1,146.00 Sale 11%

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: SIGMA-X8WH-EACH
