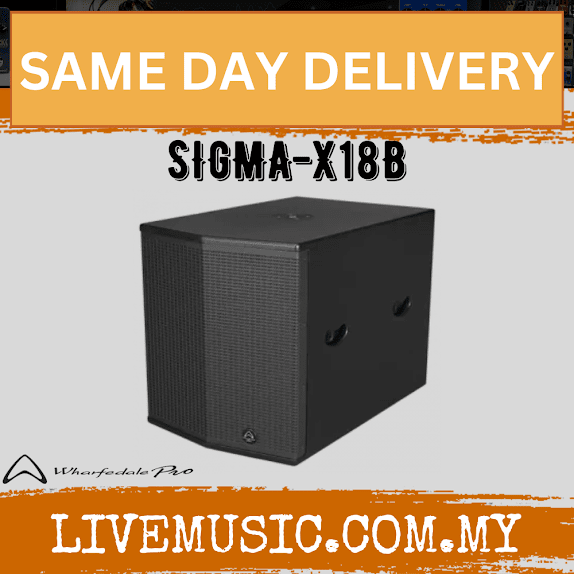

Wharfedale Pro SIGMA-X18B Subwoofer Speaker - Black (SIGMA X18B/SIGMAX18B)

Description

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON and barrier strip inputs.  It is another small step that makes the installation easy.



Key Features

●500 W AES (Continuous) Parallel

  • 1000 W Programme – Parallel

  • 2000 W Peak – Parallel

  • 2.5” LF Voice coils

  • 133 dB Max SPL @ 1 m





SPECIFICATIONS





Model Name

SIGMA-X18B

System Type

Passive

Configuration

Subwoofer

Frequency Response (+/-3 dB)

35 Hz – 250 Hz

Frequency Range (-10 dB)

30 Hz – 250 Hz

Sensitivity 2.83 V / 1 m

100 dB

Calculated Maximum SPL @1 m

133 dB

System Rated Impedance

4 Ω

Low Frequency Transducer



Size (mm / inches)

457 mm / 18”

Voice Coil Size (mm / inches)

64 mm / 2.5”

Rated Impedance

4 Ω

LF Power re:AES2-2012

500 W

High Frequency Transducer



HF Driver Type

n/a

Coil Size (mm / inches)

n/a

Exit Size (mm / inches)

n/a

Diaphragm Material

n/a

Rated Impedance

n/a

HF Power re:AES2-2012

n/a

Waveguide Type



Nominal Coverage (H x V)

na

LF Driver

1 x 18″

HF Driver

n/a

Power



System Continuous Power

500 W

System Programme Power

1000 W

System Peak Power

2000 W

Crossover frequency

150 Hz

Recommended HPF

= BW 18 dB/oct.

28 Hz

Input Connector

2 x speakON / 1x Barrier Strip

Hardware

35 mm pole socket







4 handles on sides

Enclosure



Enclosure Material

18 mm MDF

Finish

Black Paint / White Paint

Grille Material & Finish

1.2 mm steel, painted

Dimensions – Unpacked



Height

554 mm / 21.25″

Width Front

502 mm / 20″

Width Rear

502 mm / 20″

Depth

780 mm / 30.8″

Dimensions – Packed



Height

649 mm / 25.5″

Width Front

588 mm / 22.75″

Width Rear

588 mm / 22.75″

Depth

865 mm / 34″

Weight



Net Weight

39.1 kg / 86 lbs

Gross Weight

46.4 kg / 102 lbs

Optional Wall-mount bracket

n/a



Wharfedale Pro SIGMA-X18B Subwoofer Speaker - Black (SIGMA X18B/SIGMAX18B)
