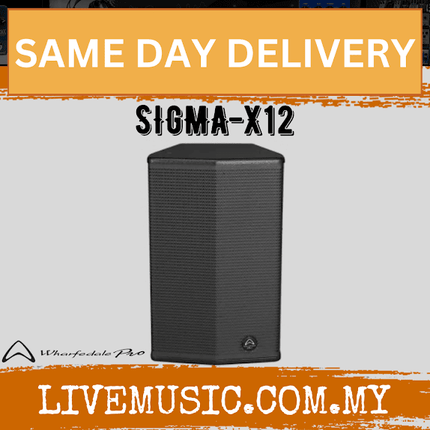

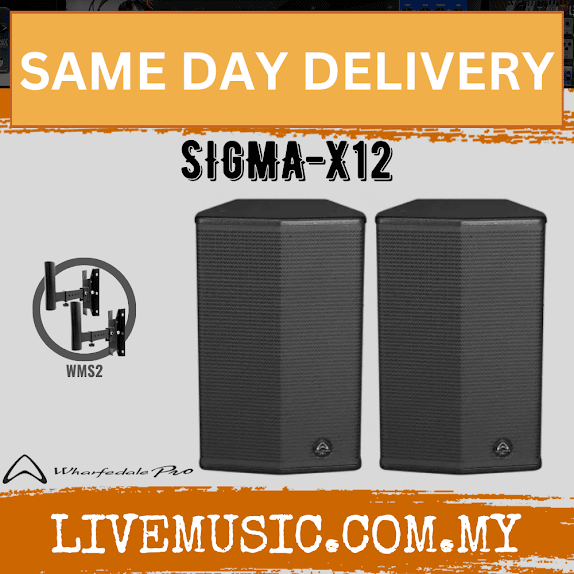

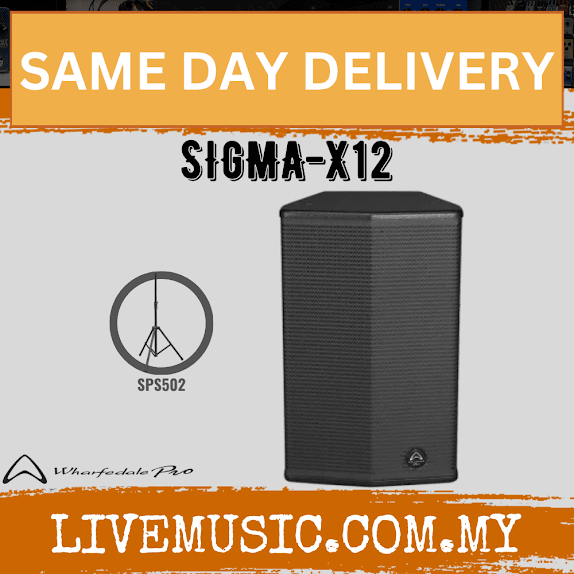

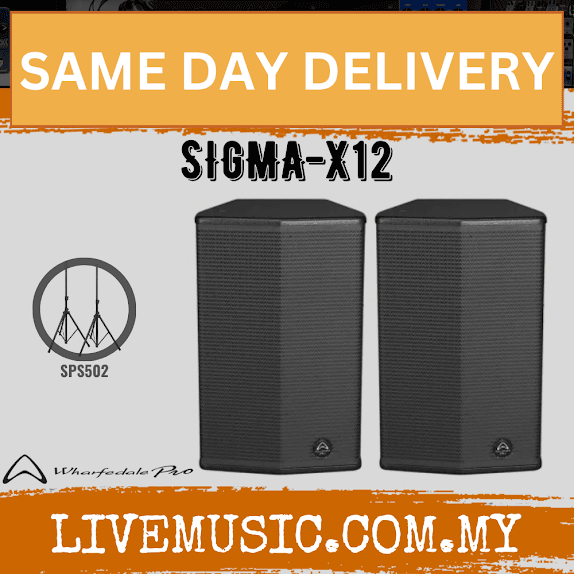

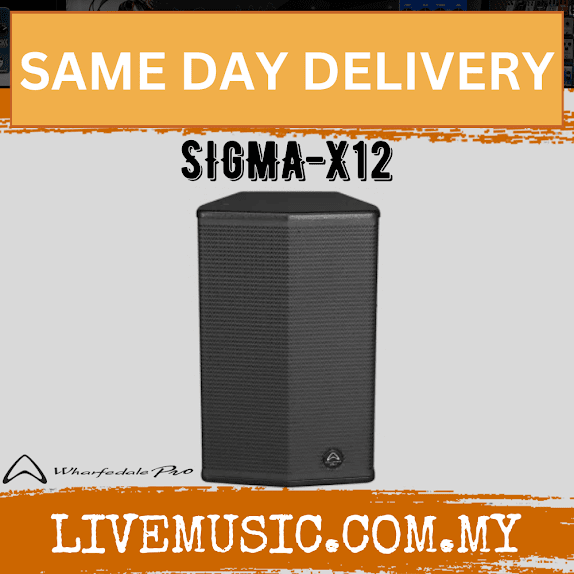

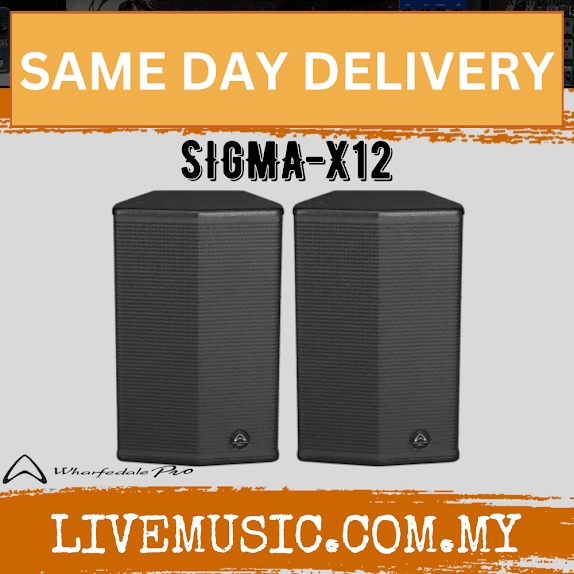

WHARFEDALE PRO SIGMA-X12 1200W PEAK 12" 2-WAY INSTALLATION LOUDSPEAKER, Each / Pair - BLACK (SIGMA X12/SIGMAX12)

Description

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON and barrier strip inputs.  It is another small step that makes the installation easy.



Key Features

●300 W AES (Continuous)

  • 600 W Programme

  • 1200 W Peak

  • 129 dB Max SPL @ 1 m



SPECIFICATIONS





Model Name

SIGMA-X12

System Type

Passive

Configuration

Two-Way

Frequency Response (+/-3 dB)

60 Hz – 18 KHz

Frequency Range (-10 dB)

55 Hz – 20 KHz

Sensitivity 2.83 V / 1 m

98 dB

Calculated Maximum SPL @1 m

129 dB

System Rated Impedance

8 Ω

Low Frequency Transducer



Size (mm / inches)

305 mm / 12”

Voice Coil Size (mm / inches)

64 mm / 2.5”

Rated Impedance

8 Ω

LF Power re:AES2-2012

300 W

High Frequency Transducer



HF Driver Type

Compression Driver

Coil Size (mm / inches)

44 mm / 1.75”

Exit Size (mm / inches)

1″

Diaphragm Material

Titanium

Rated Impedance

8 Ω

HF Power re:AES2-2012

40 W

Waveguide Type

Constant Directivity /

Rotatable

Nominal Coverage (H x V)

90˚ x 60˚

LF Driver

1 x 12″

HF Driver

1 x 1.75″ Titanium Compression Driver

Power



System Continuous Power

300 W

System Programme Power

600 W

System Peak Power

1200 W

Crossover frequency

2.2 KHz

Recommended HPF

= BW 18 dB/oct.

38 Hz

Input Connector

2 x speakON / 1x Barrier Strip

Hardware

Dual-angle (0° / 10°) 35 mm socket



M8 x 17



1 handle on back

Enclosure



Enclosure Material

15 mm MDF

Finish

Black Paint / White Paint

Grille Material & Finish

1.2 mm steel, painted

Dimensions – Unpacked



Height

551 mm / 21.7″

Width Front

354 mm / 14″

Width Rear

218 mm / 8″

Depth

359 mm / 14″

Dimensions – Packed



Height

616 mm / 24.3″

Width Front

468 mm / 18.4″

Width Rear

260 mm / 10.2″

Depth

404 mm / 15.9″

Weight



Net Weight

19.1 kg / 42.02 lbs

Gross Weight

20.74 kg / 48.2 lbs

Optional Wall-mount bracket

WPB-1 / WPB-2
