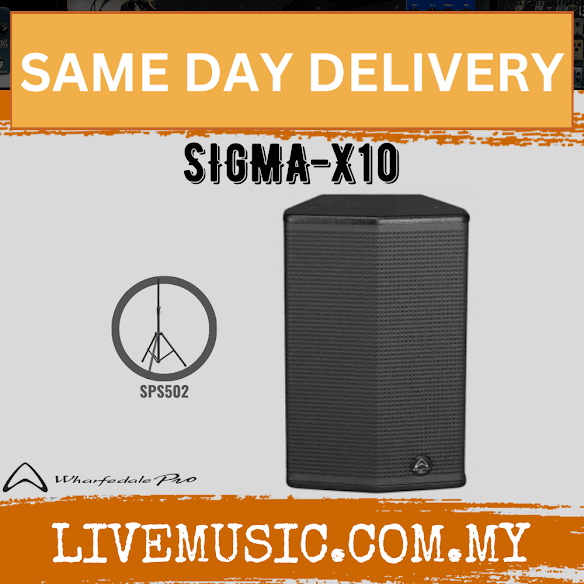

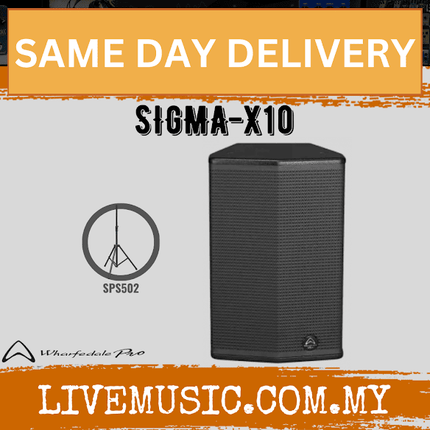

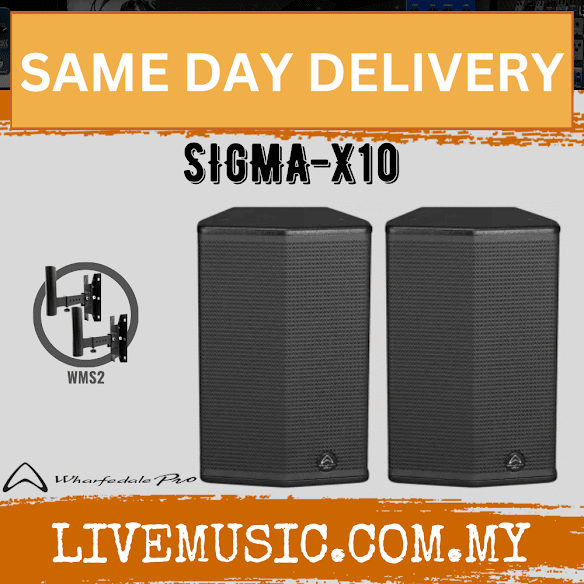

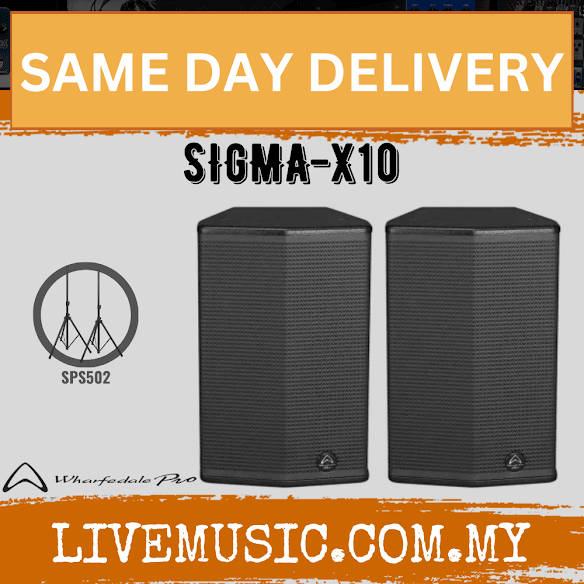

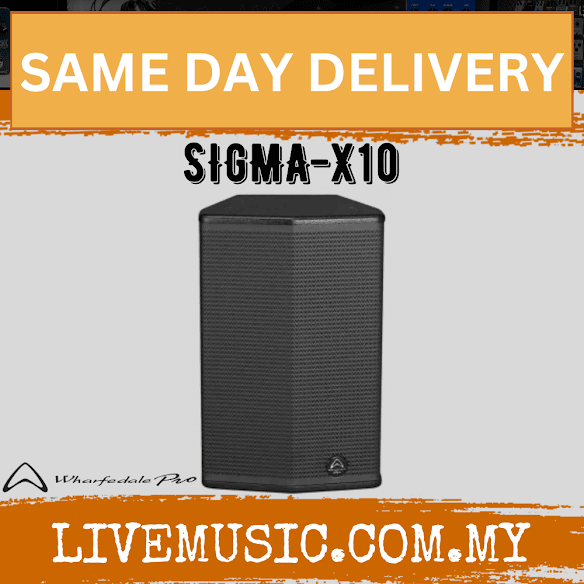

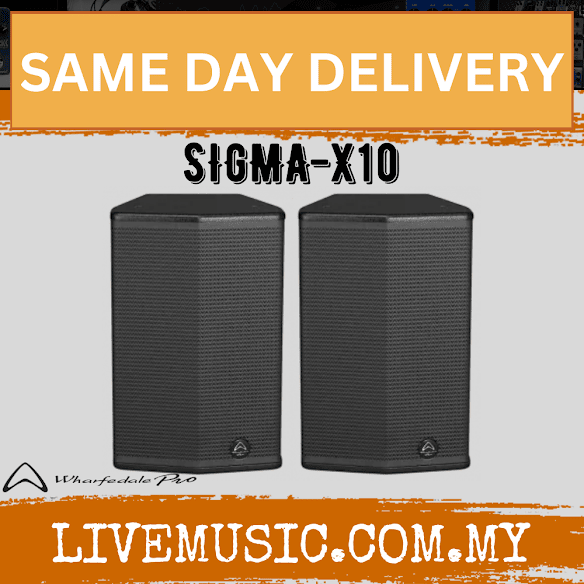

WHARFEDALE PRO SIGMA-X10 800W PEAK 10" 2-WAY INSTALLATION LOUDSPEAKER, Each / Pair - BLACK (SIGMA X10/SIGMAX10)

Description

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON and barrier strip inputs.  It is another small step that makes the installation easy.



Key Features

●200 W AES (Continuous)

  • 400 W Programme

  • 800 W Peak

  • 126 dB Max SPL @ 1 m



SPECIFICATIONS





Model Name

SIGMA-X10

System Type

Passive

Configuration

Two-Way

Frequency Response (+/-3 dB)

65 Hz – 18 KHz

Frequency Range (-10 dB)

60 Hz – 20 KHz

Sensitivity 2.83 V / 1 m

97 dB

Calculated Maximum SPL @1 m

126 dB

System Rated Impedance

8 Ω

Low Frequency Transducer



Size (mm / inches)

254 mm / 10”

Voice Coil Size (mm / inches)

38 mm / 1.5”

Rated Impedance

8 Ω

LF Power re:AES2-2012

200 W

High Frequency Transducer



HF Driver Type

Compression Driver

Coil Size (mm / inches)

44 mm / 1.75”

Exit Size (mm / inches)

1″

Diaphragm Material

Titanium

Rated Impedance

8 Ω

HF Power re:AES2-2012

40 W

Waveguide Type

Constant Directivity /

Rotatable

Nominal Coverage (H x V)

90˚ x 60˚

LF Driver

1 x 10″

HF Driver

1 x 1.75″ Titanium Compression Driver

Power



System Continuous Power

200 W

System Programme Power

400 W

System Peak Power

800 W

Crossover frequency

2.4 KHz

Recommended HPF

= BW 18 dB/oct.

45 Hz

Input Connector

2 x speakON / 1x Barrier Strip

Hardware

Dual-angle (0° /10°) 35 mm socket



M8 x 17



1 handle on back

Enclosure



Enclosure Material

15 mm MDF

Finish

Black Paint / White Paint

Grille Material & Finish

1.2 mm steel, painted

Dimensions – Unpacked



Height

520 mm / 20.5″

Width Front

338 mm / 13.3″

Width Rear

213 mm / 8.4″

Depth

338.3 mm / 13.3″

Dimensions – Packed



Height

585 mm / 23″

Width Front

441 mm / 17.3″

Width Rear

251 mm / 9.9″

Depth

389 mm / 15.3″

Weight



Net Weight

17.1 kg / 37.62 lbs

Gross Weight

18.8 kg / 41.4 lbs

Optional Wall-mount bracket

WPB-1 / WPB-2
