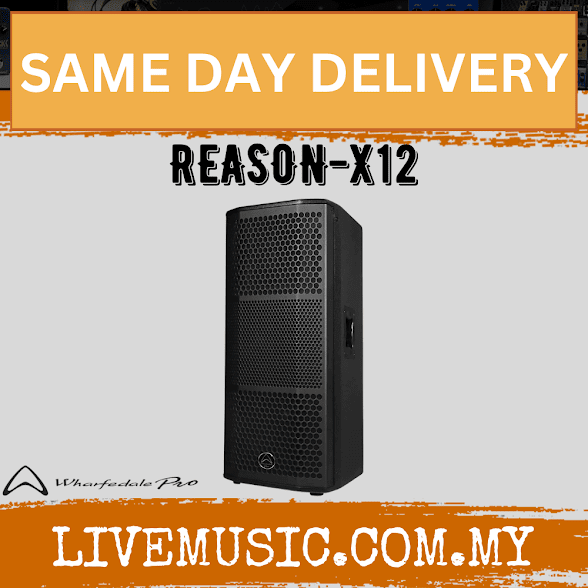

WHARFEDALE PRO REASON-X12 Series 500 Watts RMS 12" 3-Way Passive Loudspeaker (REASON X12/REASONX12)

Description

The full range models (X12 and X15) feature an all-new Polyethylene flat diaphragm neodymium HF. This highly engineered Z38 HF compression driver brings extreme HF clarity. Enormous cooling fins disperse the heat generated and the unique 1.5 inch ring-shaped polyethylene flat diaphragm delivers a precious feeling of space and air to high frequencies.



Key Features

●12″ 3-way passive loudspeaker

  • All new Z38 PE HF compression driver

  • 8.0″ mid range driver

  • 12″ LF driver with 3.0″ voice coil

  • 500 watts AES (RMS)

  • 1000 watts Programme

  • 2000 watts Peak

  • 131 dB Max SPL @ 1 meter



SPECIFICATIONS



SPECIFICATIONS







Model Name

Reason-X12

System Type

Passive

Configuration

Three-way

Frequency Response (+/-3 dB)

55-20 KHz

Frequency Range (-10 dB)

50-20 KHz

Sensitivity 2.83 V / 1 Meter

98

Calculated Maximum SPL @1 Meter

131 dB

System Rated Impedance

8 Ω

Low Frequency Transducer



Size

332 mm / 12”

Voice Coil Size

75 mm / 3.0”

LF Magnet Material

ferrite

LF Frame Material

Aluminium

Rated Impedance

8 Ω

LF Power re:AES2-2012

400 W

Mid Frequency Transducer



Size

203.8 mm / 8”

Voice Coil Size

50.8 mm / 2.0”

MF Magnet Material

ferrite

MF Frame Material

Aluminium

Rated Impedance

8 Ω

MF Power re:AES2-2012

100 W

High Frequency Transducer



HF Driver Type

Compression Driver

Coil Size (mm / inches)

38 mm / 1.5″

Exit Size (mm / inches)

25 mm / 1″

HF Magnet Material

NdFeB

Diaphragm Material

PEN

Rated Impedance

8 Ω

HF Power re:AES2-2012

40 W

Waveguide Type

square

Nominal Coverage (H x V)

100 x 70

Nominal Impedance

8 Ω

Power



System AES (RMS) Power (W)

500 W

System Programme Power (W)

1000 W

System Peak Power (W)

2000 W

Crossover Frequency

800 Hz / 2.7 KHz

Input Connector

2 x speakON compatible

Rigging

M8 x 12

Handles

2 on Sides

Enclosure

35 mm pole socket

Cabinet Type

Trapezoid

Enclosure Material and finish

15 mm plywood

Colour Options

Black paint

Grille Material & Finish

Steel

Dimensions – Unpacked (mm / inches):



Height

814 mm / 32.0″

Width Front

350 mm / 13.8″

Width Rear

231 mm / 9.1″

Depth

410 mm / 16.1″

Dimensions – Packed (mm / inches):



Height

909 mm /35.8″

Width Front

500 mm /19.7″

Width Rear

500 mm /19.7″

Depth

440 mm /17.3″

Weight



Net Weight

29.0 kg / 63.8 lbs

Gross Weight

33.7 kg / 74.2 lbs





WHARFEDALE PRO REASON-X12 Series 500 Watts RMS 12" 3-Way Passive Loudspeaker (REASON X12/REASONX12)

Product form

RM3,600.00  RM3,240.00 Sale 10%
