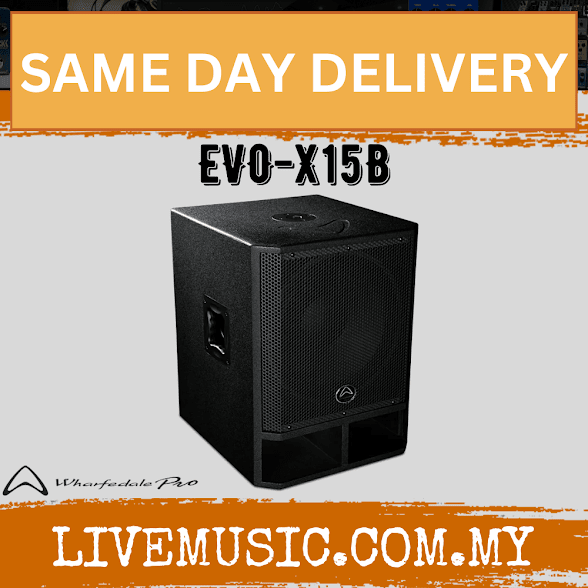

WHARFEDALE PRO EVO-X15B Series 400 Watts RMS 15" Passive Subwoofer (EVOX15B/EVO X15B)

Description

The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between the Impact-X Series and the Delta-X Series of passive loudspeakers, EVO-X is a multipurpose lineup of 8 models featuring many useful and practical design elements.



Features

  • 15″ passive subwoofer

  • 15″ LF driver with 2.5″ coil

  • 400 watts AES (RMS)

  • 800 watts Programme

  • 1600 watts Peak

  • 131 dB Max SPL @ 1 meter



SPECIFICATIONS







Model Name

EVO-X15B

System Type

Passive

Configuration

Subwoofer

Frequency Response (+/-3 dB)

40 Hz – 250 Hz

Frequency Range (-10 dB)

35 Hz – 250 Hz

Sensitivity (2.83 v / 1 m)

99 dB

Calculated Maximum SPL @1 m

131 dB

System Rated Impedance

4 Ω

Low Frequency Transducer



Size

381 mm / 15″

Voice Coil Size

64.26 mm / 2.5″

Rated Impedance

4 Ω

LF Power (re:AES2-2012)

400 w

High Frequency Transducer



HF Driver Type



Voice Coil Size



Exit Size



Diaphragm Material



Rated Impedance



HF Power (re:AES2-2012)



Nominal Coverage (H x V)



Power



System Continuous Power

400 w

System Programme Power

800 w

System Peak Power

1600 w

Crossover frequency

150 Hz

Input Connector

2 x NL4 (speakON Compatible)

+ 2 x 1/4″ Jacks

Hardware



Pole Mount

35 mm Pole Socket

Handles

2 on Sides

Enclosure



Enclosure Material

15mm MDF

Finish

Rhino rock black paint

Grille Material & Finish

1.2 mm Steel

Dimensions – Unpacked



Height

591 mm / 23.27″

Width Front

460 mm / 18.11″

Width Rear

460 mm / 18.11″

Depth

510 mm / 20.08″

Dimensions – Packed



Height

656 mm / 25.83″

Width Front

556 mm / 21.89″

Width Rear

556 mm / 21.89″

Depth

506 mm / 19.92″

Weight



Net Weight (kg / lbs)

28.5 kg / 62.7 lbs

Gross Weight (kg / lbs)

33.5 kg / 73.7 lbs
