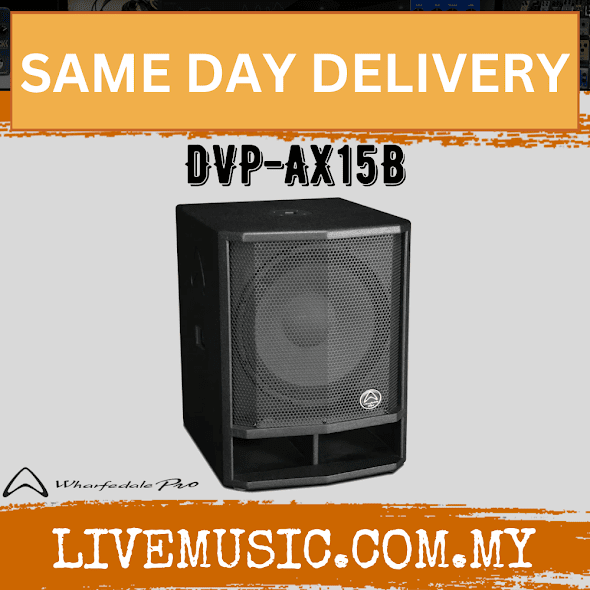

WHARFEDALE PRO DVP-AX15B Series 600 Watts RMS 15" Active Subwoofer (DVP AX15B/DVPAX15B)

Description

DVP-AX is a comprehensive lineup of versatile and road-ready active loudspeakers. Class D amplification housed in ultra hard wearing cabinets make DVP-AX a perfect choice for hardworking DJ’s and musicians on the road.



Features

  • 15″ active subwoofer

  • 600 watts Continuous power

  • 1200 watts Peak power

  • 2.5″ LF voice coil

  • Adjustable Low pass filter

  • 130 dB Max SPL @ 1 meter



SPECIFICATIONS





Model Name

DVP-AX15B

System Type

Active 15″ subwoofer

Frequency Response (+/-3 dB)

45-150 Hz

Frequency Range (-10 dB)

38-150 Hz

Maximum SPL @1 m

130 dB

Sensitivity @ 1 W / 1 m

98 dB

LF transducer Size (mm / inches)

381 mm / 15″

LF Coil Size (mm / inches)

Dual layer 2.5″

HF transducer : Type



HF Coil Size (mm / inches)



HF Exit Size (mm / inches)



HF Diaphragm Material



Nominal Coverage (H x V)



LF Power Amplifier -Class D,

600 W / 1200 W

RMS/Peak Watts

HF Power Amplifier -Class D,



RMS/Peak Watts

DSP

N/A

Controls—D-EQ

N/A

Amplifier Protection. Power On, Thermal, low voltage

Yes

Driver Protection,DC, Short, Clip indicator

Yes

Limiter Indicator

Red LED

Power Indicator

Green LED (Red LED front)

INPUTS : Input Sensitivity : Balanced

775 mv

Maximum Input Level

6 v

Input Connector

XLR & 1/4″ (Line/MIC)

Input Impedance

Balanced:20 K

LPF control

80 Hz-120 Hz

Polarity Control

0°/180°

OUTPUTS : Line Output Connector

XLR THRU/HPF(OUT)

AC Power Options : SMPS

220-240 V 50/60 Hz



100-120 V 50/60 Hz

Pole socket

35 mm pole socket

Handles

2 carry handles (one on each side)

Enclosure Material and Finish

MDF / Black paint

Grille Material & Finish

steel

Dimensions – Unpacked (mm / inches): Height

591 mm / 23.3”

Width

454 mm / 17.9”

Width (rear)

454 mm / 17.9”

Depth

534 mm / 21.0”

Dimensions – Packed (mm / inches):Height

681 mm / 26.8”

Width

620 mm / 24.4”

Width (rear)

620 mm / 24.4”

Depth

540 mm / 21.3”

Net Weight (kg / lbs)

29.9 kg / 65.8 lbs

Gross Weight (kg / lbs)

34.9 kg / 76.8 lbs
