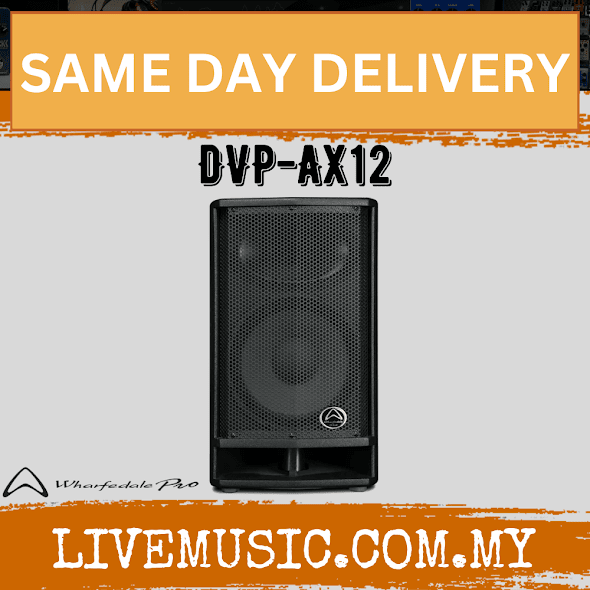

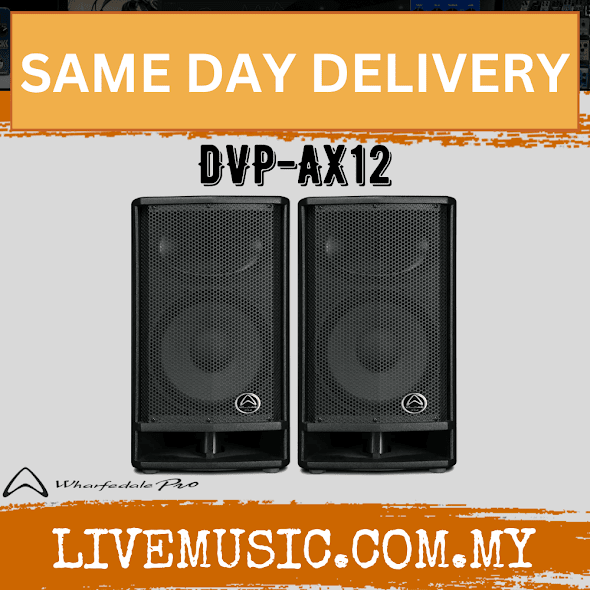

WHARFEDALE PRO DVP-AX12 Series 200 Watts RMS12" 2-Way Active Loudspeaker- Each/Pair (DVPAX12/DVP AX12)

Description

DVP-AX12 features advanced DSP processing with 6 presets tailored to overcome many real-life sonic challenges.  DVP-AX12 also features a practical 2-channel mic/line mixer to make life alot easier on-stage.



Key Features



●12″ two-way bi-amplified

  • 200 watts Continuous power

  • 400 watts Peak power

  • 90° x 60° dispersion

  • 1.75″ HF Compression driver

  • 2.5″ LF voice coil

  • 6 position DSP

  • 129 dB Max SPL @ 1 meter



Model Name

DVP-AX12

System Type

Active 12″ 2-way

Frequency Response (+/-3 dB)

60-18 KHz

Frequency Range (-10 dB)

55-20 KHz

Maximum SPL @1 m

129 dB

Sensitivity @ 1 W / 1 m

98 dB

LF transducer Size (mm / inches)

305 mm / 12″

LF Coil Size (mm / inches)

Dual layer 2.5″

HF transducer : Type

Compression Driver

HF Coil Size (mm / inches)

44 mm / 1.75″

HF Exit Size (mm / inches)

25 mm / 1″

HF Diaphragm Material

Titanium

Nominal Coverage (H x V)

90° x 60°

LF Power Amplifier -Class D,

150 W / 300 W

RMS/Peak Watts

HF Power Amplifier -Class D,

50 W / 100 W

RMS/Peak Watts

DSP

Yes

Controls—D-EQ

1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE

Amplifier Protection. Power On, Thermal, low voltage

Yes

Driver Protection,DC, Short, Clip indicator

Yes

Limiter Indicator

Red LED

Power Indicator

Green LED (Red LED front)

INPUTS : Input Sensitivity : Balanced

775 mv

Maximum Input Level

4 v

Input Connector

2*XLR & 2*1/4″ (Line/MIC)

Input Impedance

Balanced:20 K

LPF control

N/A

Polarity Control

N/A

OUTPUTS : Line Output Connector

XLR

AC Power Options : SMPS

220-240 V 50/60 Hz



100-120 V 50/60 Hz

Pole socket

Dual-angle (0°/10°) 35 mm socket

Handles

2 carry handles (one on each side)

Enclosure Material and Finish

MDF / Black paint

Grille Material & Finish

steel

Dimensions – Unpacked (mm / inches): Height

617 mm / 24.3”

Width

361.2 mm / 14.2”

Width (rear)

207.6 mm / 8.2”

Depth

342.4 mm / 13.5”

Dimensions – Packed (mm / inches):Height

680 mm / 26.8”

Width

438 mm / 17.3”

Width (rear)

236 mm / 9.3”

Depth

428 mm / 16.9”

Net Weight (kg / lbs)

18.7 kg / 41.1 lbs

Gross Weight (kg / lbs)

21.4 kg / 47.1 lbs

WHARFEDALE PRO DVP-AX12 Series 200 Watts RMS12" 2-Way Active Loudspeaker- Each/Pair (DVPAX12/DVP AX12)

Product form

RM2,510.00  RM2,259.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: DVP-AX12-Each

Free Shipping · West Malaysia You make the music. We deliver the gear. Free delivery on this item, straight to your door.
