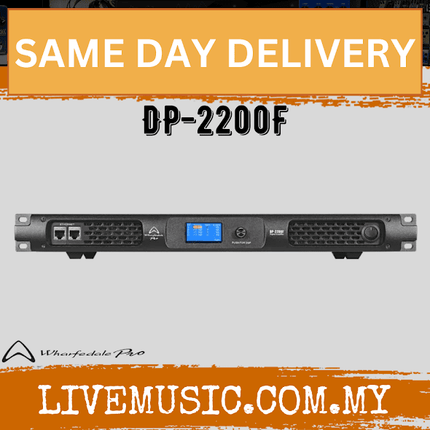

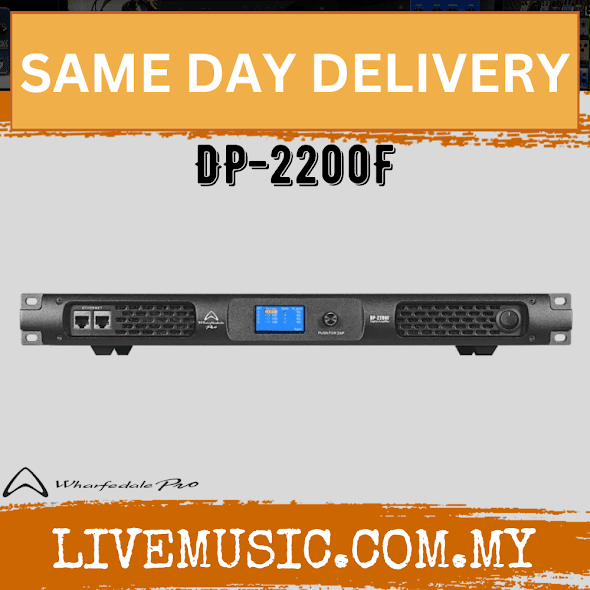

WHARFEDALE PRO DP 2200F Series Dual Channel 2000 Watts @ 8 Ohms Amplifier with Ethernet (DP-2200F/DP2200F)

Description

DP-F Amplifiers
-Multi-channel amps
-Ethernet control inputs
-FIR Filters
-Software control


FEATURES

  • 2 channels
  • 8 Ohm 2 x 2000 W
  • 4 Ohm 2 x 3400 W
  • 2 Ohm 2 x 4760 W
  • 16 Ohm Bridged 1 x 4000 W
  • 8 Ohm Bridged 1 x 6800 W
  • 4 Ohm Bridged 1 x 9520 W
  • 100 V Hi-Z 2 x 3400 W
  • 70 V Hi-Z 2 x 2400 W

FIR Filtering gives

  • Independent control of magnitude and phase.

  • More detailed equalisation.

  • Optimization of frequency and power response.



SPECIFICATIONS



Model   DP-2200F
Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz) 8 Ω / Stereo 2 x 2000 W
  4 Ω / Stereo 2 x 3400 W
  2 Ω / Stereo 2 x 4760 W
  16 Ω / Bridge 1 x 4000 W
  8 Ω / Bridge 1 x 6800 W
  4 Ω / Bridge 1 x 9520 W
  100 V Hi-Z 2 x 3400 W
  70 V Hi-Z 2 x 2400 W
Output RMS voltage   126.5 V
Maximum Input Level   8.7 Vrms(+21 dBu)(Default Gain)
Default Gain (Rated Power,1 KHz)   24 dB
Gain(Rated Power,1 KHz)   24 dB~42 dB
THD+N   Typical value:0.05%(10% Rated Power,8 Ω)
Cross-Talk   ≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω)
Frequency Response   Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance   20 kΩ(Balance),10 kΩ(Unbalance)
Damping Factor   ≥1000(20 Hz-200 Hz,8 Ω)
SNR   ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power   90~260 VAC,50/60 Hz
Protection   Power under-voltage protection、Amplifier output DC protection、Thermal Protection、 Temperature Power Control、Overload Power Control
Size(W×H×D)   483 x 45 x 376 mm
Net Weight   9.3 kg

WHARFEDALE PRO DP 2200F Series Dual Channel 2000 Watts @ 8 Ohms Amplifier with Ethernet (DP-2200F/DP2200F)

Product form

RM13,090.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: DP2200F

    Same Day Delivery via Lalamove

    Description

    DP-F Amplifiers
    -Multi-channel amps
    -Ethernet control inputs
    -FIR Filters
    -Software control


    FEATURES

    • 2 channels
    • 8 Ohm 2 x 2000 W
    • 4 Ohm 2 x 3400 W
    • 2 Ohm 2 x 4760 W
    • 16 Ohm Bridged 1 x 4000 W
    • 8 Ohm Bridged 1 x 6800 W
    • 4 Ohm Bridged 1 x 9520 W
    • 100 V Hi-Z 2 x 3400 W
    • 70 V Hi-Z 2 x 2400 W

    FIR Filtering gives

    • Independent control of magnitude and phase.

    • More detailed equalisation.

    • Optimization of frequency and power response.



    SPECIFICATIONS



    Model   DP-2200F
    Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz) 8 Ω / Stereo 2 x 2000 W
      4 Ω / Stereo 2 x 3400 W
      2 Ω / Stereo 2 x 4760 W
      16 Ω / Bridge 1 x 4000 W
      8 Ω / Bridge 1 x 6800 W
      4 Ω / Bridge 1 x 9520 W
      100 V Hi-Z 2 x 3400 W
      70 V Hi-Z 2 x 2400 W
    Output RMS voltage   126.5 V
    Maximum Input Level   8.7 Vrms(+21 dBu)(Default Gain)
    Default Gain (Rated Power,1 KHz)   24 dB
    Gain(Rated Power,1 KHz)   24 dB~42 dB
    THD+N   Typical value:0.05%(10% Rated Power,8 Ω)
    Cross-Talk   ≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω)
    Frequency Response   Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω)
    Input Impedance   20 kΩ(Balance),10 kΩ(Unbalance)
    Damping Factor   ≥1000(20 Hz-200 Hz,8 Ω)
    SNR   ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
    Main Power   90~260 VAC,50/60 Hz
    Protection   Power under-voltage protection、Amplifier output DC protection、Thermal Protection、 Temperature Power Control、Overload Power Control
    Size(W×H×D)   483 x 45 x 376 mm
    Net Weight   9.3 kg
