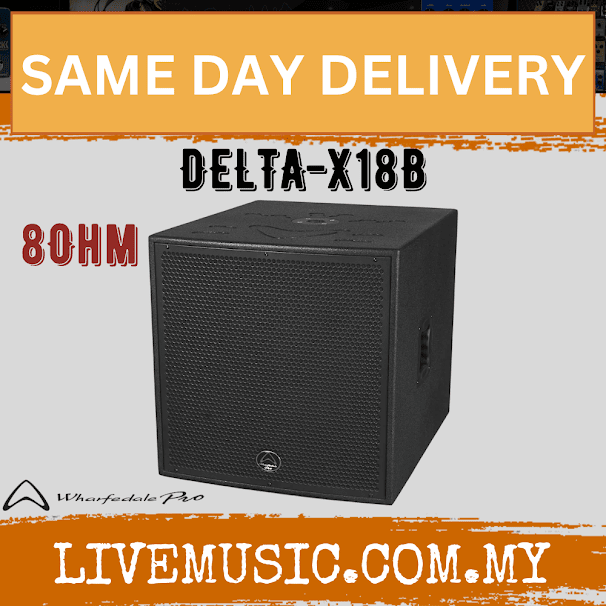

WHARFEDALE PRO DELTA-X18B Series 800 Watts RMS 18" Passive Subwoofer 8 OHM (DELTAX18B/DELTA X18B)

Description

Solid and superior. Reinforce your low-end with rich, defined bass and phenomenal reliability. The Wharfedale Pro Delta X18B gives you everything you need for powerful bass with plenty of impact, even in the most unforgiving environments.



The Delta X series has been built to withstand the demanding nature of performances and life on the road. Plus, with a custom transducer and a high-performance design, it’s easy to hear how Wharfedale have achieved their reputation for exceptional sound.



A solid 15mm Russian Birch plywood cabinet with an ultra-durable Rhino Rock finish and a newly designed crossover keeps your sub

safe from harm. Plus, two ergonomic handles mean that manoeuvring your subwoofer is quick and easy. And with exceptional long-term reliability, you can rely on the Delta X18B night after night, year after year.



Features



  • Birch plywood construction

  • Re-engineered robust crossover design

  • Suitable for touring, rental and installation

  • Bi-amp and Passive mode switching

  • Extremely durable Rhino Rock finished cabinets

  • Multiple M6, M8 & M10 rigging points and integral tripod stand adapter

  • Dual spider technology on 18″ woofers

  • Rubberised 4-way handles

  • 18″ Subwoofer

  • 4.0″ voice coil

  • 800 watts AES (RMS)

  • 1600 watts Programme

  • 3200 watts Peak

  • 134 dB Max SPL @ 1 meter



SPECIFICATIONS





Model Name

Delta X18B

System Type

Passive

Configuration

Subwoofer

Frequency Response (+/-3 dB)

38 Hz-1.5 KHz(BI-AMP)

Frequency Range (-10 dB)

30 Hz-1.5 KHz

Sensitivity (2.83 v / 1 m)

99 dB

Calculated Maximum SPL @1 m

134 dB

System Rated Impedance

8 Ω

Low Frequency Transducer



Size

470 mm / 18″

Voice Coil Size

102 mm / 4″

Rated Impedance

8 Ω or 4 Ω

LF Power (re:AES2-2012)

800 w

High Frequency Transducer



HF Driver Type



Voice Coil Size



Exit Size



Diaphragm Material



Rated Impedance



HF Power (re:AES2-2012)



Nominal Coverage (H x V)



Power



System Continuous Power

800 w

System Programme Power

1600 w

System Peak Power

3200 w

Crossover frequency



Input Connector

2 x NL4 (speakON Compatible)

Hardware



Pole Mount

35 mm

Handles

2 on Sides

Enclosure



Enclosure Material

15 mm Plywood

Finish

Tough-Tone

Grille Material & Finish

1.5 mm Steel Black

Dimensions – Unpacked



Height

539 mm / 21.2”

Width Front

539 mm / 21.2”

Width Rear

539 mm / 21.2”

Depth

650 mm / 25.6”

Dimensions – Packed



Height

624 mm / 24.6″

Width Front

611 mm / 24.1″

Width Rear

611 mm / 24.1″

Depth

722 mm / 28.4″

Weight



Net Weight (kg / lbs)

37.3 kg / 82.06 lbs

Gross Weight (kg / lbs)

43.2 kg / 95.04 lbs



WHARFEDALE PRO DELTA-X18B Series 800 Watts RMS 18" Passive Subwoofer 8 OHM (DELTAX18B/DELTA X18B)

Product form

RM3,020.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: DELTAX18B-8OHM
