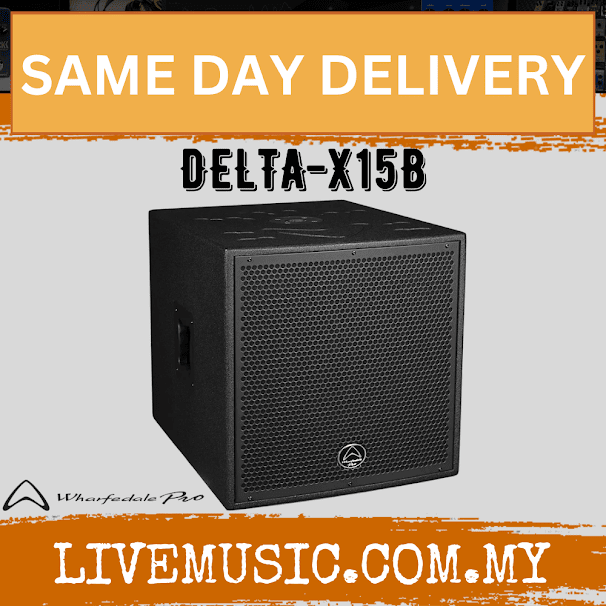

WHARFEDALE DELTA X15B 15" 2800W Passive Subwoofer Speaker (DELTAX15B DELTA-X15B)

  • Sale -100%

WHARFEDALE DELTA X15B 15" 2800W Passive Subwoofer Speaker (DELTAX15B DELTA-X15B)

Product form

RM2,370.00  RM0.00

  The WHARFEDALE's DELTA X15B is a 15" 2800W passive subwoofer features 90° x 45° waveguides ensure long-throw projection, Bi-Amp and passive modes on the back panel, perfect for fixed installation and touring applications.   Features 15" LF driver 4" voice coil 132dB Max SPL Birch plywood construction Premium Rhino Rock paint 8Ω impedance 700w continuous 1400w programme 2800w peak 2 carry handles Bi-amp and Passive modes   SPECIFICATIONS    Model Name Delta X15B... Read more

SKU: DELTAX15B

    Description



    The WHARFEDALE's DELTA X15B is a 15" 2800W passive subwoofer features 90° x 45° waveguides ensure long-throw projection, Bi-Amp and passive modes on the back panel, perfect for fixed installation and touring applications.



    Features

    • 15" LF driver

    • 4" voice coil

    • 132dB Max SPL

    • Birch plywood construction

    • Premium Rhino Rock paint

    • 8Ω impedance

    • 700w continuous

    • 1400w programme

    • 2800w peak

    • 2 carry handles

    • Bi-amp and Passive modes



    SPECIFICATIONS





    Model Name

    Delta X15B

    System Type

    Passive

    Configuration

    Subwoofer

    Frequency Response (+/-3 dB)

    42 Hz -2 KHz(BI-AMP)

    Frequency Range (-10 dB)

    38 Hz-150 Hz

    Sensitivity (2.83 v / 1 m)

    98 dB

    Calculated Maximum SPL @1 m

    132 dB

    System Rated Impedance

    8 Ω

    Low Frequency Transducer



    Size

    404 mm / 15″

    Voice Coil Size

    102 mm / 4″

    Rated Impedance

    8 Ω or 4 Ω

    LF Power (re:AES2-2012)

    700 w

    High Frequency Transducer



    HF Driver Type



    Voice Coil Size



    Exit Size



    Diaphragm Material



    Rated Impedance



    HF Power (re:AES2-2012)



    Nominal Coverage (H x V)



    Power



    System Continuous Power

    700 w

    System Programme Power

    1400 w

    System Peak Power

    2800 w

    Crossover frequency



    Input Connector

    2 x NL4 (speakON Compatible)

    Hardware



    Pole Mount

    35 mm

    Handles

    2 on Sides

    Enclosure



    Enclosure Material

    15 mm Plywood

    Finish

    Tough-Tone

    Grille Material & Finish

    1.5 mm Steel Black

    Dimensions – Unpacked



    Height

    471 mm / 18.5”

    Width Front

    471 mm / 18.5”

    Width Rear

    471 mm / 18.5”

    Depth

    600 mm / 23.6”

    Dimensions – Packed



    Height

    556 mm / 21.9″

    Width Front

    543 mm / 21.4″

    Width Rear

    543 mm / 21.4″

    Depth

    672 mm / 26.5″

    Weight



    Net Weight (kg / lbs)

    31.5 kg / 69.4 lbs

    Gross Weight (kg / lbs)

    35.12 kg / 77.4 lbs
