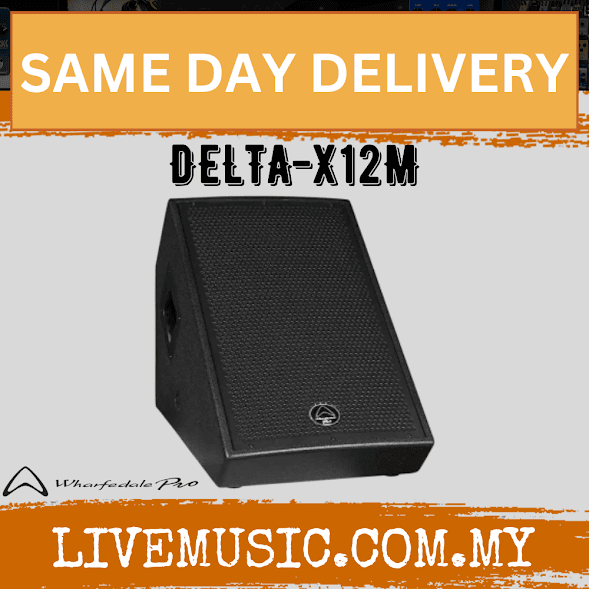

WHARFEDALE DELTA X12M 12" 1600W Passive Loudspeaker Floor Monitor (DELTAX12M DELTA-X12M)

Description

The WHARFEDALE's DELTA X12M passive floor monitor is the newest addition to the Delta line, and it offers the same quality and longevity as its larger competitors, as well as comparable power and SPL handling. The delicate crossover electronics have been re-engineered with improved component location and bracing to improve long-term performance and reliability, even at the greatest volumes. This passive speaker provides 400 watts RMS of power with a 2.0" voice coil and a 12" low distortion cast frame woofer, while the 90° x 45° waveguides ensure long-throw projection. It also may be switched between Bi-Amp and Passive modes on the back panel. Delta X systems may be fine-tuned with various amplifiers and external crossovers with this routing flexibility.



Features

  • 400W RMS

  • 60Hz – 20kHz Frequency Response

  • 129dB Max SPL

  • 12” low distortion cast frame woofer

  • 2” titanium compression drive

  • 2 x Parallel Speakon Inputs

  • Rhino Rock textured black paint finish

  • Plywood construction



SPECIFICATIONS





Model Name

Delta X12M

System Type

Passive

Configuration

Two-way

Frequency Response (+/-3 dB)

60 Hz-20 KHz

Frequency Range (-10 dB)

55 Hz-20 KHz

Sensitivity (2.83 v / 1 m)

97 dB

Calculated Maximum SPL @1 m

129 dB

System Rated Impedance

8 Ω

Low Frequency Transducer



Size

332 mm / 12″

Voice Coil Size

77.1 mm / 3″

Rated Impedance

8 Ω

LF Power (re:AES2-2012)

400 w

High Frequency Transducer



HF Driver Type

Compression Driver

Voice Coil Size

50.8 mm / 2″ Titanium

Exit Size

35.6 mm / 1.4″

Diaphragm Material

Titanium

Rated Impedance

8 Ω

HF Power (re:AES2-2012)



Nominal Coverage (H x V)



Power



System Continuous Power

400 w

System Programme Power

800 w

System Peak Power

1600 w

Crossover frequency

1.8 KHz

Input Connector

2 x NL4 (speakON Compatible)

Hardware



Pole Mount



Handles

2 on Sides

Enclosure



Enclosure Material

15 mm Plywood

Finish

Tough-Tone

Grille Material & Finish

1.5 mm Steel Black

Dimensions – Unpacked



Height

449 (SITU)mm / 17.7”

Width Front

390 mm / 15.4”

Width Rear

390 mm / 15.4”

Depth

618 mm / 24.3”

Dimensions – Packed



Height

462 mm / 18.2″

Width Front

690 mm / 27.2″

Width Rear

690 mm / 27.2″

Depth

522 mm / 20.6″

Weight



Net Weight (kg / lbs)

23.18 kg / 50.9 lbs

Gross Weight (kg / lbs)

28.5 kg / 62.7 lbs
