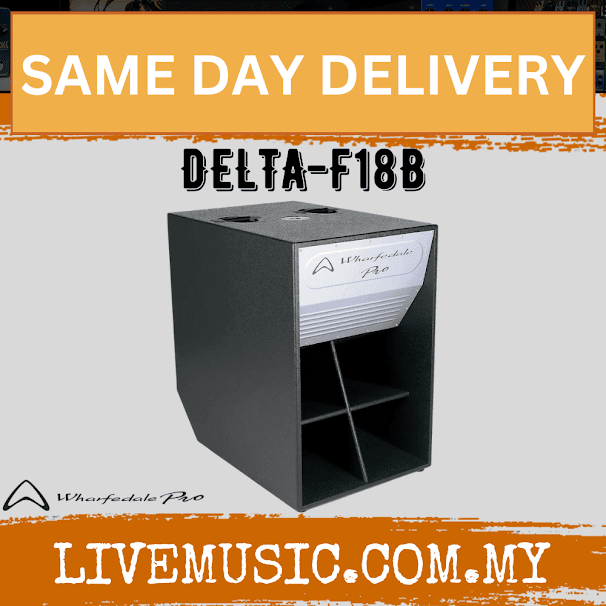

WHARFEDALE DELTA F18B 18" 3200W Folded Horn Subwoofer (DELTA-F18B/DELTAF18B)

Description

The WHARFEDALE's DELTA F18B single 18-inch folding horn subwoofer is passive and delivers a whopping 141dB (max SPL). This passive speaker comes with castors, making it a surprisingly portable and manoeuvrable enclosure. When a sound system's low frequency output needs to be extended over medium-long distances, one or more Delta F18B subwoofers will provide high output low frequency improvement to the overall sound system. The Delta F18B's folded horn design allows it to produce ground-shaking low frequencies across extended distances.



Features

  • 3200w Peak, 1600w Programme, 800w RMS

  • 141dB Max SPL

  • 8Ω Impedance

  • Folded horn design for long throw low end

  • 30Hz - 300Hz Frequency response

  • 2 x Parallel speakON compatible Inputs

  • Rhino Rock textured black paint finish

  • 18mm Plywood construction

  • 4 x 4-way high impact plastic handles

  • Supplied with 4 robust castors

  • Integral 35mm pole socket







Model Name

Delta F18B

System Type

Passive

Configuration

Folded horn subwoofer

Frequency Response (+/-3 dB)

30 Hz – 300 Hz

Frequency Range (-10 dB)



Sensitivity (2.83 v / 1 m)

106 dB

Calculated Maximum SPL @1 m

141 dB

System Rated Impedance

8 Ω

Low Frequency Transducer



Size

470 mm / 18″

Voice Coil Size

102 mm / 4″

Rated Impedance

8 Ω

LF Power (re:AES2-2012)

800 w

High Frequency Transducer



HF Driver Type



Voice Coil Size



Exit Size



Diaphragm Material



Rated Impedance



HF Power (re:AES2-2012)



Nominal Coverage (H x V)



Power



System Continuous Power

800 w

System Programme Power

1600 w

System Peak Power

3200 w

Crossover frequency



Input Connector

2 x NL4 (speakON Compatible)

Hardware



Pole Mount

35 mm

Handles

4 on Sides

Enclosure



Enclosure Material

18 mm Plywood

Finish

Tough-Tone

Grille Material & Finish



Dimensions – Unpacked



Height

914 mm / 36.0”

Width Front

609.6 mm / 24.0”

Width Rear

609.6 mm / 24.0”

Depth

914 mm / 36.0”

Dimensions – Packed



Height

1009 mm / 39.72”

Width Front

689 mm / 27.12”

Width Rear

689 mm / 27.12”

Depth

994 mm / 39.13”

Weight



Net Weight (kg / lbs)

80.5 kg / 177.1 lbs

Gross Weight (kg / lbs)

85.2 kg / 187.44 lbs
