Description
- AD/DA: 24bit/48kHz
- Maximum project saving: 99
- Maximum recording storage: about 7 hours
- Recording format: WAVE(24bit, 48kHz, stereo)
- Drum rhythm: 100 or more
- Playback modes：SERIAL or FREE
- MIDI(IN/OUT): 1/8" TRS MIDI connectors
- INPUT(L/R): 2x1/4" Unbalanced (TS)
- Input Impedance: 1MΩ
- OUTPUT(L/R): 2x1/4" Unbalanced (TS)
- Output Impedance: 4.7kΩ
- USB Port: USB 2.0 Type-C Port
- Dimensions: 81mm(W)x162mm(D)x61mm(H)
- Unit Weight: 606g
- Power Requirements: DC 9V, 500mA, Center negative
Key Features
Features

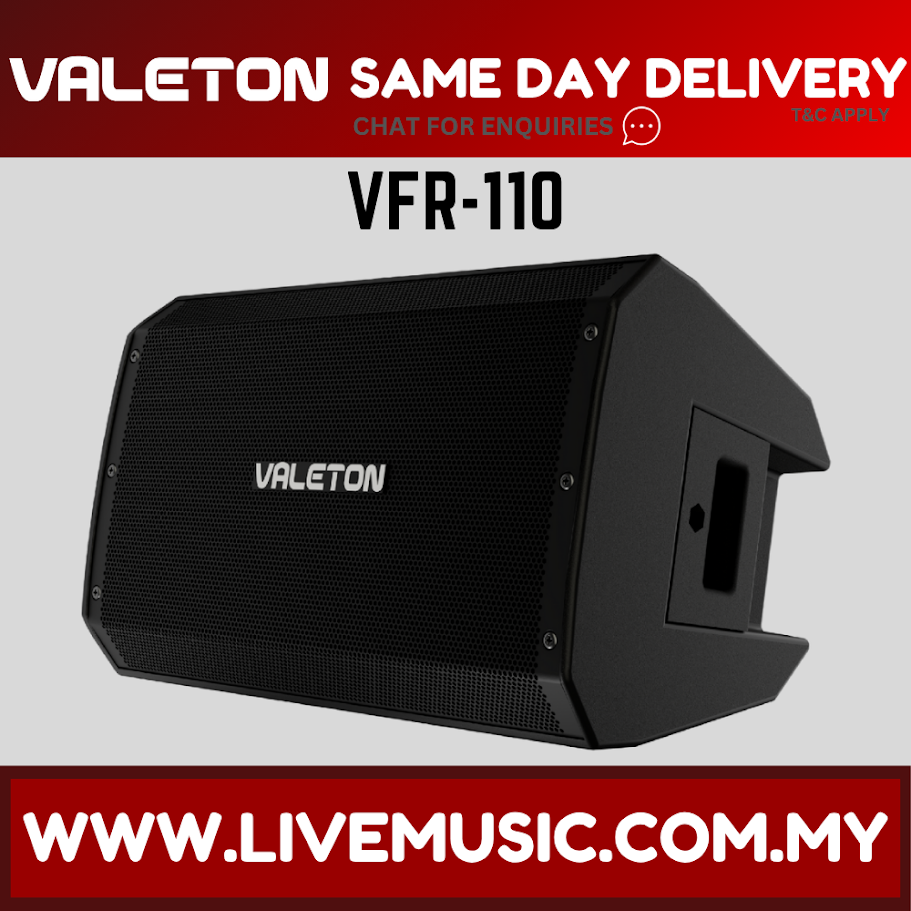

● FRFR speaker designed for amp modelers (like GP-200), multi-effects, and more
● Fine-tuned 1 " tweeter and 10 " woofer delivering professional instrument sound
● Also works well as an active FOH/monitor speaker
● Class D powered, 1300W max output
● Two XLR/TRS combo inputs and one XLR link output for different usage scenarios
● CONTOUR and BASS switches for detailed EQ shaping
● Ultra-light, rugged casing
● Speaker stand mountable
Specifications
Output Power: 1300W (Peak)/650W (Program)/325W (Rated)
Drivers: 1 × 1 " custom HF tweeter + 1× 10 " custom LF woofer
Crossover Frequency: 2.6kHz
Max. SPL: 124dB
Frequency Range: 55Hz-20kHz
Bass Switch: -8.5dB@65Hz
Contour Switch: -3dB@1kHz
I/O: 2 × XLR+TRS combo inputs, 1 × XLR link output
Input Impedance: 44kΩ (balanced)/22kΩ (unbalanced)
Output Impedance: 200Ω
Power Requirement: 100-240V AC, 50-60Hz
Power Consumption: 375W
Dimensions: 285mm (W) × 510mm (D) × 300mm (H)
Weight: 10.6kg
