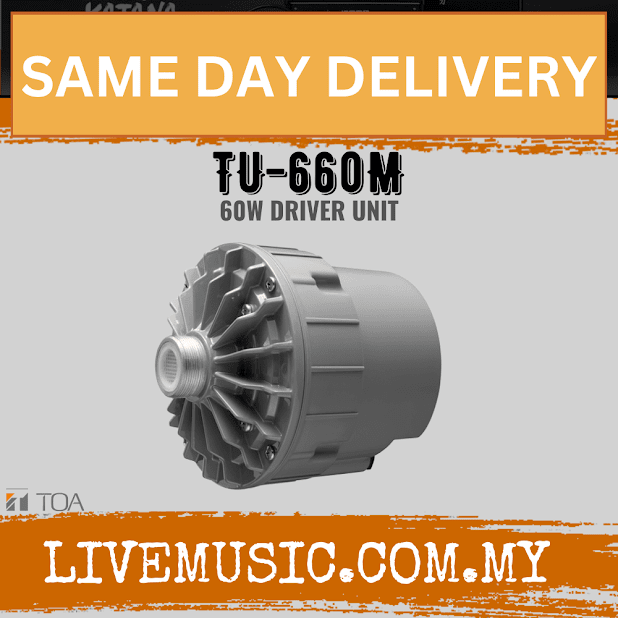

TOA TU-660M Driver Unit ( TU660M / TU 660M )

Description

SPECIFICATIONS
  • Applicable Horns
  • TH-650, TH-660
  • Rated Input
  • 60 W
  • Line Voltage
  • 100 V line or 70 V line
  • Rated Impedance
  • 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W)
  • 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)
  • Sensitivity
  • 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
  • Frequency Response
  • 150 Hz - 8 kHz (When operated with JIS C 5504 standard horn.)
  • Dust/Water Protection
  • IP65 (When a driver is operated with a horn.)
  • Horn Coupling
  • 1 - 3/8 18 threads (inch screw)
  • Polarity
  • Hot: Black, Com: White
  • Operating Temperature
  • -20 ℃ to +55 ℃ (-4 ゜F to +131 ゜F) (no condensation)
  • Finish
  • Flange: Aluminum, gray, powder coating
  • Rear cover: ABS resin, gray
  • Screws: Stainless steel
  • Speaker cable: Polyvinyl chloride insulated cabtyre cable
  • (6 mm (0.24") in diameter, 600 mm (23.62") in length)
Dimension Packaging Weight : 1.5 kg

TOA TU-660M Driver Unit ( TU660M / TU 660M )

Product form

RM470.00
