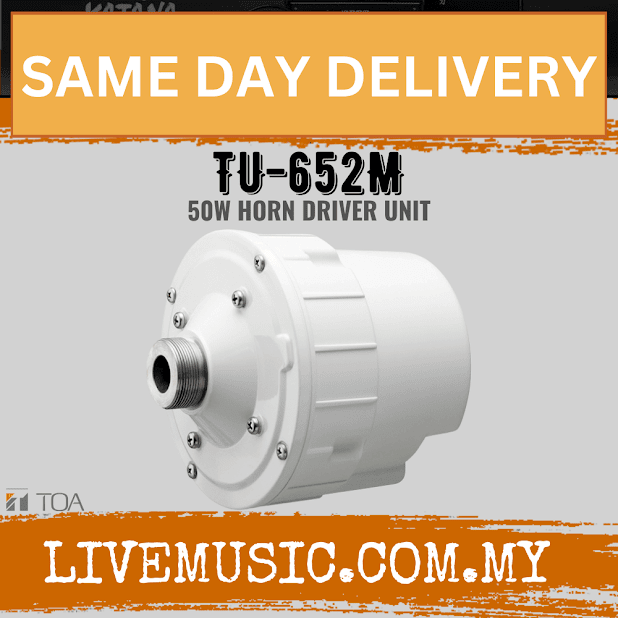

TOA TU-652M 50W Horn Driver Unit with Matching Transfomer ( TU652M / TU 652M )

Description

SPECIFICATIONS
  • Applicable Horns
  • TH-652
  • Rated Input
  • 50 W
  • Line Voltage
  • 100 V line or 70 V line
  • Rated Impedance
  • 100 V line: 200 Ω (50 W), 330 Ω (30 W), 670 Ω (15 W)
  • 70 V line: 100 Ω (50 W), 200 Ω (25 W), 330 Ω (15 W), 670 Ω (7.5 W)
  • Output Sound Pressure Level
  • 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
  • Frequency Response
  • 150 Hz - 6,000 Hz (When operated with JIS C 5504 standard horn.)
  • IP Code
  • IP65 (When a driver is operated with a horn.)
  • Horn Coupling
  • 1 - 3/8 18 threads (inch screw)
  • Polarity
  • Hot: Black, Com: White
  • Operating Temperature
  • -20°C to +55°C (-4°F to +131°F) (must be free from dew condensation)
  • Finish
  • Upper Cover: Aluminum, White, powder coating
  • Unit Case: HIPS. White
  • Screws: Stainless steel
  • Speaker cable: Polyvinyl chloride insulated cabtyre cable
  • (6 mm (0.24") in diameter, 450 mm (17.72") in length), White
  • Dimensions
  • Φ139 × 149 (D) mm (Φ5.47" × 5.87")
  • Weight
  • 7 kg (5.95 lb)

Dimension Packaging Weight : 3.24 kg
