SPECIFICATIONS

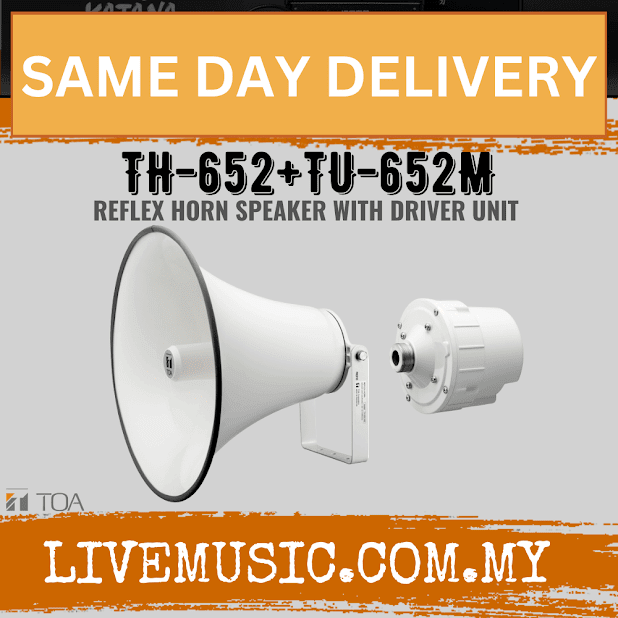

TOA TH-652 Reflex Horn Speaker :

• Applicable Drivers : TU-632, TU-632M, TU-652, TU-652M
• Sound Pressure Level : 110 dB (1 W, 1 m) (When operated with a driver.)
• Frequency Response : 200 Hz - 6,000 Hz (When operated with a driver.)
• Dust/Water Protection : IP65 (When operated with a driver.)
• Driver Coupling : 1 - 3/8 18 threads (inch screw)
• Operating Temperature : -20 °C to +55 °C (must be free from dew condensation)
• Finish : Horn flare and flange: Aluminum, White, powder coating
• Reflector horn: HIPS, White
• Bracket: Steel, White, powder coating
• Screws and bolts: Stainless steel
• Dimensions : F500 × 357 (D) mm

TOA TU-652M 50W Horn Driver Unit @ 70/100V :

• Applicable Horns
• TH-652
• Rated Input
• 50 W
• Line Voltage
• 100 V line or 70 V line
• Rated Impedance
• 100 V line: 200 O (50 W), 330 O (30 W), 670 O (15 W)
• 70 V line: 100 O (50 W), 200 O (25 W), 330 O (15 W), 670 O (7.5 W)
• Output Sound Pressure Level
• 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
• Frequency Response
• 150 Hz - 6,000 Hz (When operated with JIS C 5504 standard horn.)
• IP Code
• IP65 (When a driver is operated with a horn.)
• Horn Coupling
• 1 - 3/8 18 threads (inch screw)
• Polarity
• Hot: Black, Com: White
• Operating Temperature
• -20°C to +55°C (-4°F to +131°F) (must be free from dew condensation)
• Finish
• Upper Cover: Aluminum, White, powder coating
• Unit Case: HIPS. White
• Screws: Stainless steel
• Speaker cable: Polyvinyl chloride insulated cabtyre cable
• (6 mm (0.24") in diameter, 450 mm (17.72") in length), White
• Dimensions
• F139 × 149 (D) mm (F5.47" × 5.87")

Dimension Packaging Weight : 7.2 kg
