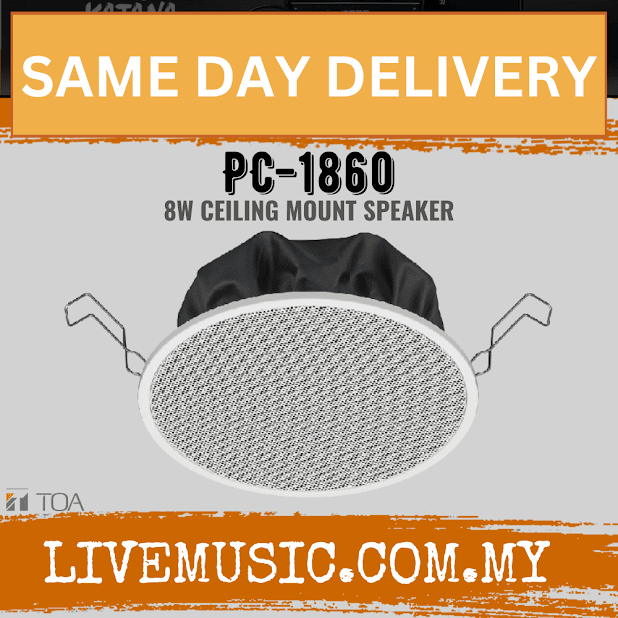

TOA PC-1860 Ceiling Mount Speaker ( PC1860 / PC 1860 )

Description

SPECIFICATIONS
  • Rated Input : 6 W (100 V line), 3 W (70 V line)
  • Speaker Component : 12 cm (5") cone-type
  • Speaker Mounting Method : Spring clamp
  • Weight : 560 g (1.23 lb)
  • Accessory : Paper pattern …1
  • Dimensions : φ180 × 70 (D) mm (φ7.09" × 2.76")
  • Frequency Response : 80 Hz - 20 kHz (peak -20 dB)
  • Applicable Cable : Solid wire: 0.5 - 3 mm² (AWG 20 - 12)
  • Sensitivity : 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
  • Operating Temperature : -10 °C to + 50 °C (14 °F to 122 °F)
  • Connection : Push wire connection (bridging terminal-2 branch type)
  • Finish : Frame : Steel plate, white (RAL 9016 equivalent), paint | Grille: Steel net, white (RAL 9016 equivalent), paint
  • Dimensions for Fixing Hole : Mounting hole: φ150±3 mm (φ5.91"±0.12") | Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
  • Rated Impedance : 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) | 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)

Dimension Packaging Weight : 2.4 kg

TOA PC-1860 Ceiling Mount Speaker ( PC1860 / PC 1860 )

Product form

RM105.00
