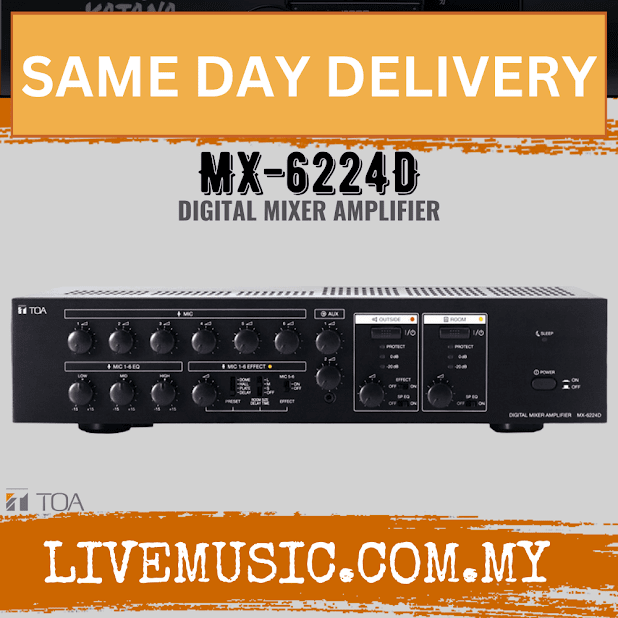

TOA MX-6224D Digital Mixer Amplifier ( MX6224D / MX 6224D )

Description

SPECIFICATIONS
  • Power Source
  • 220 V - 240 V AC, 50/60 Hz
  • Power Output
  • 240 W × 2 channels (100 V, 42 Ω, rated output)
  • Power Consumption
  • 100 W (according to IEC60065), 570 W (at rated output, both channels)
  • Amplification System
  • Class D, Output transformerless galvanic isolated output
  • Frequency Response
  • 50 Hz - 20 kHz, ±3 dB (at 1/3 rated output, rated load, from power amplifier input)
  • Distortion
  • 1 % or less (at 1 kHz, 1/3 rated output power)
  • Input
  • MIC 1: -50 dB (*1) (24 V phantom powered)/-60 dB (*1) (phantom power OFF)
  • 600 Ω, electronically-balanced, φ6.3 mm phone jack (3P:balance)
  • MIC 2 - 4: -66 dB (*1), 200 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable)
  • MIC 5 - 6: -60 dB (*1), 600 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable)
  • AUX 1: -10 dB (*1), 10 kΩ mixed monaural, unbalanced, RCA pin jacks (1 pair)
  • AUX 2: -20 dB (*1), 10 kΩ mixed monaural, unbalanced, φ3.5 mm mini jack (3P:stereo)
  • Power amplifier input: 0 dB (*1), 10 kΩ, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)
  • Output
  • Speaker output: 2 zones, 100 V (42 Ω), galvanic isolated balanced, M4 screw terminal
  • Recording output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair)
  • Effect bus output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair)
  • Preamplifier output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)
  • Phantom Power
  • ON/OFF switchable for MIC 1 and XLR-3-31 type connectors of MIC 2 - 6
  • Signal to Noise Ratio
  • 60 dB or more (All volume controls: min.)
  • Controls
  • 6 Microphone volume controls, 2 AUX volume controls, 1 ROOM output switch, 1 ROOM volume control, 1 OUTSIDE output switch, 1 OUTSIDE volume control, 1 Effect control (0 % to 100 %) of Effect bus, 1 Effect preset type selection switch (DOME/HALL/PLATE/DELAY), 1 Effect Room size/Delay time selection switch (L/M/S/OFF), 1 Effect output selection switch (OFF/ON), 1 MIC 5-6 effect switch, 1 Low EQ control (±15 dB, 80 Hz) for MIC 1 - 6, 1 Mid EQ control (±15 dB, 2.5 kHz) for MIC 1 - 6, 1 High EQ control (±15 dB, 12 kHz) for MIC 1 - 6, 1 Speaker EQ (TC-631M, TC-651M) switch for OUTSIDE output, 1 Speaker EQ (BS-1030B, BS-1030W) switch for ROOM output, 1 Power switch, 1 Phantom switch for MIC 1, 1 Phantom switch for MIC 2 - 6 (XLR-3-31)
  • Indicators
  • SLEEP indicator
  • Output Level meters (2 points, -20 dB and 0 dB) for ROOM and OUTSIDE
  • Protection indicators for ROOM and OUTSIDE amplifiers
  • Output indicators for ROOM and OUTSIDE
  • EFFECT indicator for MIC 1 - 6
  • Ventilation
  • Natural air cooling
  • Operating Temperature
  • 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)"
  • Operating Humidity
  • 35 % to 80 %RH (no condensation)
  • Dimensions
  • 420 (W) × 99.8 (H) × 360.6 (D) mm (16.54 × 3.93" × 14.2")

Dimension Packaging Weight : 6.0 kg

TOA MX-6224D Digital Mixer Amplifier ( MX6224D / MX 6224D )

Product form

RM4,560.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: MX6224D
