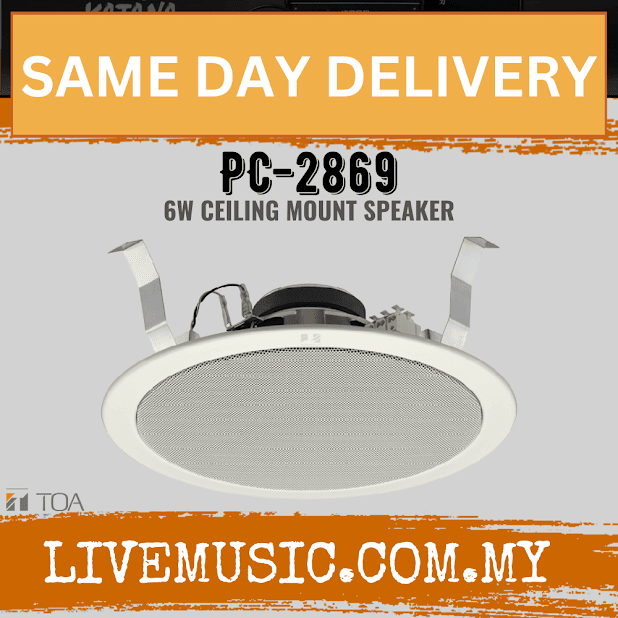

TOA Ceiling Speaker PC-2869 6W Ceiling Mount Speaker ( PC2869 / PC 2869 )

Description

SPECIFICATIONS
  • Rated Input : 6 W (100 V line), 3 W (70 V line)
  • Rated Impedance : 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
  • 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
  • Sensitivity : 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
  • Frequency Response : 40 Hz - 20 kHz (peak -20 dB)
  • Speaker Component : 20 cm (8") double cone-type
  • Dimensions for Fixing Hole : Mounting hole: φ250±3 mm (φ9.84"±0.12")
  • Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
  • Speaker Mounting Method : Spring clamp
  • Applicable Cable : 600 V vinyl-insulated cable (IV wire or HIV wire)
  • Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14)
  • 7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)
  • Connection : Push-in connector (bridging terminal-2 branch type)
  • Finish : Baffle: Steel plate, white (RAL 9016 equivalent), paint
  • Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
  • Dimensions : φ280 × 92 (D) mm (φ11.02" × 3.62")
  • Weight : 1.4 kg (3.09 lb)
Dimension Packaging Weight : 1.2 kg

TOA Ceiling Speaker PC-2869 6W Ceiling Mount Speaker ( PC2869 / PC 2869 )

Product form

RM220.00
