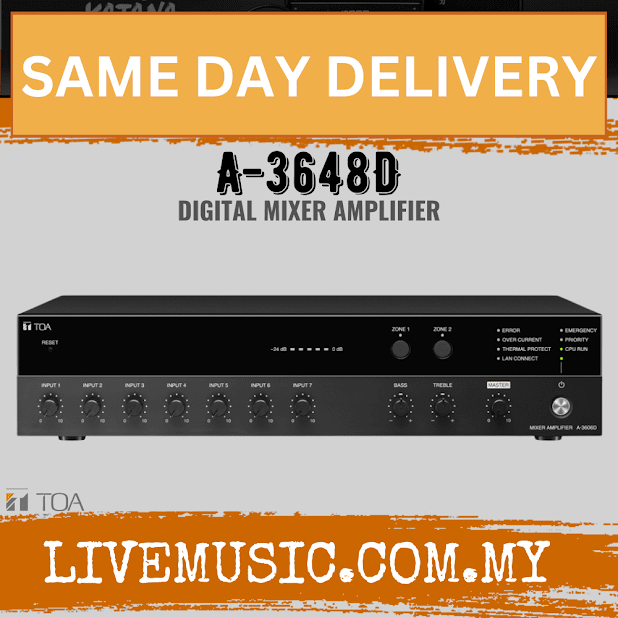

Description

SPECIFICATIONS
  • Power Source
  • 100 - 240 V AC, 50/60Hz
  • Rated Output
  • 480 W
  • Power/Current Consumption
  • 601 W (Rated output), 113 W (based on EN62368),
  • 200 mA or less (when power switch is OFF)
  • Frequency Response
  • 50 Hz - 20 kHz ±3 dB (1/8 rated output)
  • Distortion
  • 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025))
  • Tone Control
  • Bass: ±10 dB at 100 Hz
  • Treble: ±10 dB at 10 kHz
  • S/N Ratio
  • 88 dB or more (Master volume: min.)
  • 76 dB or more (Master volume: max.)
  • 55 dB or more (INPUT 1 - 6)
  • 72 dB or more (INPUT 7)
  • (A-weighted)
  • Audio Input
  • INPUT 1, 2: -60 dB(*1)(MIC) / -20 dB (*1) (LINE) selectable, 600 O, electronically-balanced, removable terminal block (3 pins)
  • Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable)
  • INPUT 3, 4: -60 dB(*1), 600 O, electronically-balanced, removable terminal block (3 pins)
  • Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable)
  • INPUT 5, 6: MIC (BUS 1) / LINE (BUS 2) selectable
  • MIC : -60 dB(*1), 600 O, electronically-balanced, removable terminal block (3 pins)
  • LINE: -20 dB (*1), 10 kO, unbalanced, RCA pin jack x 2
  • INPUT 7: -20 dB(*1), 10 kO, unbalanced, RCA pin jack x 2
  • PWR AMP IN: 0 dB (*1), 600 O, unbalanced, RCA pin jack
  • Input Bus
  • INPUT 1 - 4: BUS 1
  • INPUT 5 - 6: BUS 1/BUS 2 selectable
  • INPUT 7: BUS 2
  • Audio Output
  • Speaker out: Low impedance (4 - 16 O) /
  • High impedance (DIRECT, ZONE 1, ZONE 2: 100 V / total 21 O), removable terminal block (6 pins)
  • (ZONE 1 / ZONE 2 is selectable, max. 480 W per output)
  • Rec out: 0 dB(*1), 600 O, unbalanced, RCA pin jack
  • Line out 1, 2: 0 dB (*1) , 600 O, unbalanced, RCA pin jack (Interlock with zone selection is possible)
  • Control Input
  • 4 channels. no-voltage make contact input, open voltage: 35 V DC or less,
  • Short circuit current: 10 mA or less, removable terminal block (4 pins)
  • REMOTE VOLUME: Removable terminal block (4 pins)
  • ZONE CONTROL IN: No-voltage make contact input, even voltage: 35 V DC or less,
  • short-circuit current: 10 mA or less, removable terminal block (4 pins)
  • Control Output
  • POWER REMOTE OUT: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins)
  • EMERGENCY OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins)
  • ZONE CONROL OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins)
  • Chime
  • 1-note, 2-note, or ascending, 4-note chime, or None selectable with switch setting
  • Indicator
  • 5-point LED output level meter, Power LED, LAN connect LED, Priority LED, Emergency LED, Thermal protection LED, Over current protection indicator LED, CPU RUN LED, Error LED, Zone 1 LED, Zone 2 LED
  • Operating Temperature
  • -10°C to +40°C
  • Operating Humidity
  • 85 %RH or less (no condensation)
  • Finish
  • Panel: ABS resin, black
  • Case: Surface-treated steel plate, black, paint
Dimension Packaging Weight : 5.0 kg
