Description

FEATURES

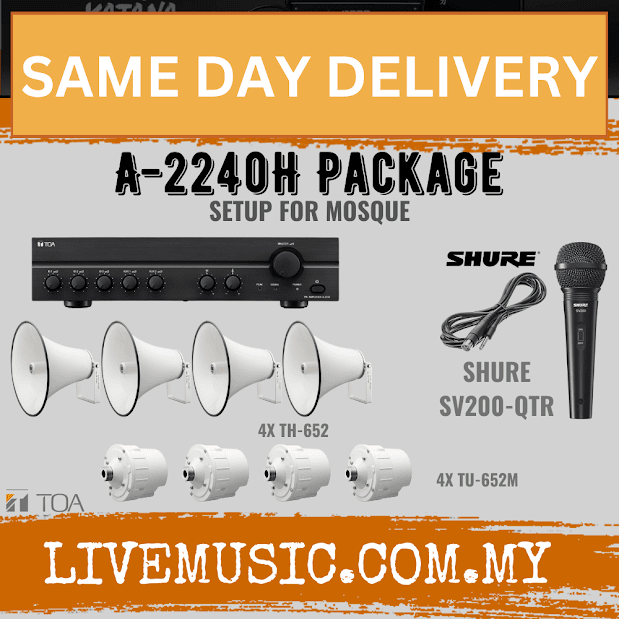

  • 1 x TOA A-2240 Mixer Power Amplifier (A2240) - H version
  • 4 x TOA Horn Speaker TH-652 (TH652)
  • 4 x TOA TU-652M 50W Driver Unit
  • 1 x Shure SV200 Dynamic Vocal Microphone with XLR to QTR Cable (6.3 mm)
SPECIFICATIONS

TOA A-2240 Mixer Power Amplifier (A2240) - H version :

  • Power Source : 220 - 240 V AC, or 24 - 30 V DC
  • Rated Output : 240 W
  • Power Consumption : 238 W (EN60065), 520 W (AC operation at rated output),
  • 15 A (DC operation at rated output)
  • Frequency Response : 50 - 20,000 Hz (±3 dB)
  • Distortion : Under 1% at 1 kHz, 1/3 rated power
  • Input : MIC 1 - 3: -60 dB*, 600 O, balanced, phone jack
  • AUX 1,2: -20 dB*, 10 kO, unbalanced, RCA pin jack
  • Output : Speaker out: Balanced (floating)
  • High impedance: 42 O (100 V), 21 O (70 V)
  • Low impedance: 4 O (31 V)
  • Rec out: 0 dB*, 600 O, unbalanced, RCA pin jack
  • Phantom Power : DC +21 V (MIC 1)
  • S/N Ratio : Over 60 dB
  • Tone Control : Bass: ±10 dB at 100 Hz
  • Treble: ±10 dB at 10 kHz
  • Muting : MIC 1: Mutes other input signals by 0 - 30 dB attenuation
  • Indicator : Power, signal, peak
  • Finish : Panel: ABS resin, black
  • Case: Steel plate, black
  • Dimensions : 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54" × 3.97" × 14.19")
  • Weight : 13.2 kg (29.1 lb)

TOA Horn Speaker TH-652 (TH652) :

  • Applicable Drivers : TU-632, TU-632M, TU-652, TU-652M
  • Sound Pressure Level : 110 dB (1 W, 1 m) (When operated with a driver.)
  • Frequency Response : 200 Hz - 6,000 Hz (When operated with a driver.)
  • Dust/Water Protection : IP65 (When operated with a driver.)
  • Driver Coupling : 1 - 3/8 18 threads (inch screw)
  • Operating Temperature : -20 °C to +55 °C (must be free from dew condensation)
  • Finish : Horn flare and flange: Aluminum, White, powder coating
  • Reflector horn: HIPS, White
  • Bracket: Steel, White, powder coating
  • Screws and bolts: Stainless steel
  • Dimensions : F500 × 357 (D) mm
  • Weight : 2.7

TOA TU-652M 50W Driver Unit :

  • Applicable Horns : TH-652
  • Rated Input : 50 W
  • Line Voltage : 100 V line or 70 V line
  • Rated Impedance : 100 V line: 200 O (50 W), 330 O (30 W), 670 O (15 W)
  • 70 V line: 100 O (50 W), 200 O (25 W), 330 O (15 W), 670 O (7.5 W)
  • Output Sound Pressure Level : 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
  • Frequency Response : 150 Hz - 6,000 Hz (When operated with JIS C 5504 standard horn.)
  • IP Code : IP65 (When a driver is operated with a horn.)
  • Horn Coupling : 1 - 3/8 18 threads (inch screw)
  • Polarity : Hot: Black, Com: White
  • Operating Temperature : -20°C to +55°C (-4°F to +131°F) (must be free from dew condensation)
  • Finish : Upper Cover: Aluminum, White, powder coating
  • Unit Case: HIPS. White
  • Screws: Stainless steel
  • Speaker cable: Polyvinyl chloride insulated cabtyre cable
  • (6 mm (0.24") in diameter, 450 mm (17.72") in length), White
  • Dimensions : F139 נ149 (D) mm (F5.47" נ5.87")
  • Weight : 2.7 kg (5.95 lb)

Shure SV200 Dynamic Vocal Microphone :

  • Cardioid Polar Pattern
  • On/Off Switch
  • Includes 15ft XLR to QTR Cable
Dimension Packaging Weight : 31.2 kg
