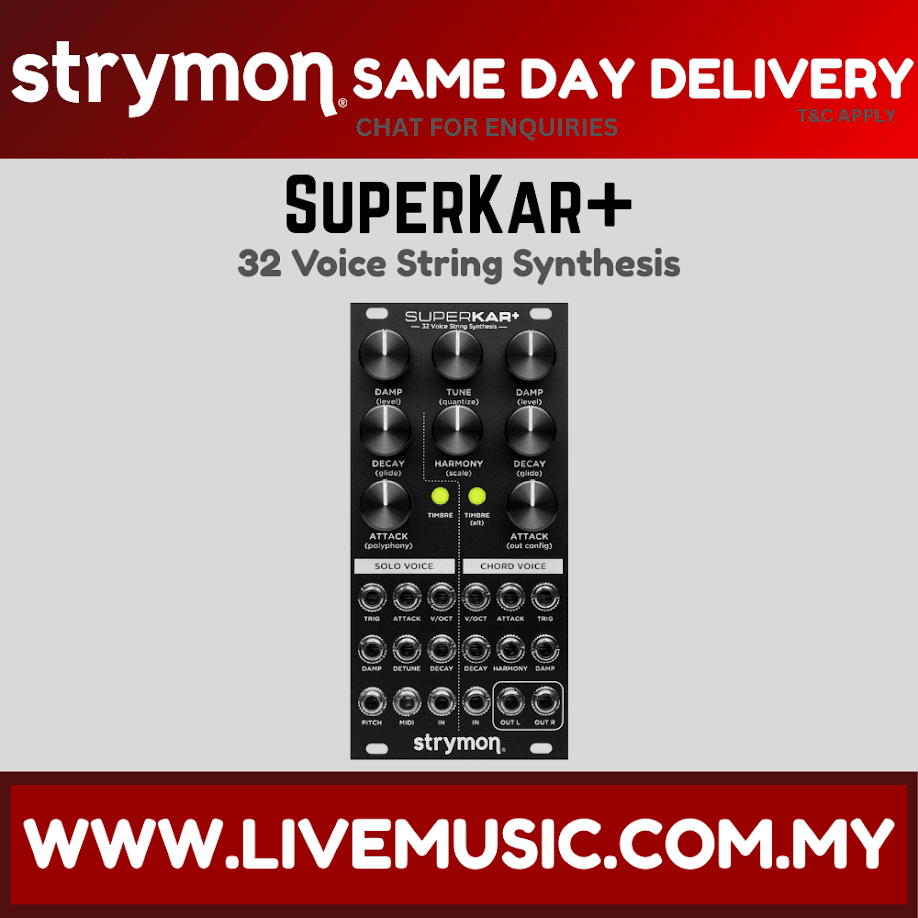

SuperKar+ is a Eurorack voice module that uses Karplus-Strong synthesis to create the sound of plucked or bowed strings, struck or blown pipes or tubes, or a suite of other sounds from percussive textures to legato melodies and chords with smart harmonies. This is Karplus-Strong synthesis at its most intuitive and captivating. Karplus-Strong is a form of delay feedback synthesis, where every tone and texture is constantly in a state of varying tension. SuperKar+ is an engagingly responsive instrument, as tiny changes in attack/decay time and damping create an infinite variety of subtle or dramatic timbral shifts, and variable random per-note detuning can create lifelike realism.
FEATURES:
• Karplus-Strong based voice module
• Two independent Voice channels – Solo Voice and Chord Voice
• Each Voice is polyphonic up to 16 notes
• Solo Voice plays single notes capable of sustaining simultaneously
• Chord Voice plays chord structures based on the root from the received V/Oct (Volt per Octave) CV
• Chord Voice includes fixed intervals with smart harmonies available
• Selectable Wide & Narrow Stereo, Split Voice, and Mono output options
• MIDI input controls the Solo Voice for a 16-part polyphonic experience with velocity sensitivity (when using MIDI, unplug the Solo Voice TRIG and Solo Voice V/Oct CVs)
• Solo Voice tuning stable to six octaves via CV and eight octaves via MIDI
• Chord Voice tuning stable to five octaves
• Stereo inputs and outputs
• Extensive CV control of parameters
• USB jack (located on the rear) for performing firmware updates
• 3.5 mm TRS MIDI Type A
• 520 MHz ARM Superscalar processor
• 32-bit floating point processing
• Designed and built in the USA
SPECIFICATIONS:
• Signal-to-Noise Ratio (Input to Output): 108 dB (A-Weighted)
• DAC Signal-to-Noise Ratio: 111 dB (A-Weighted)
• Rack Width: 12 HP
• Rack Depth: 1.5" (38 mm)
• Power Requirements: +12V rail: 120 mA, -12V rail: 120 mA, +5V rail: 0 mA
