FEATURES

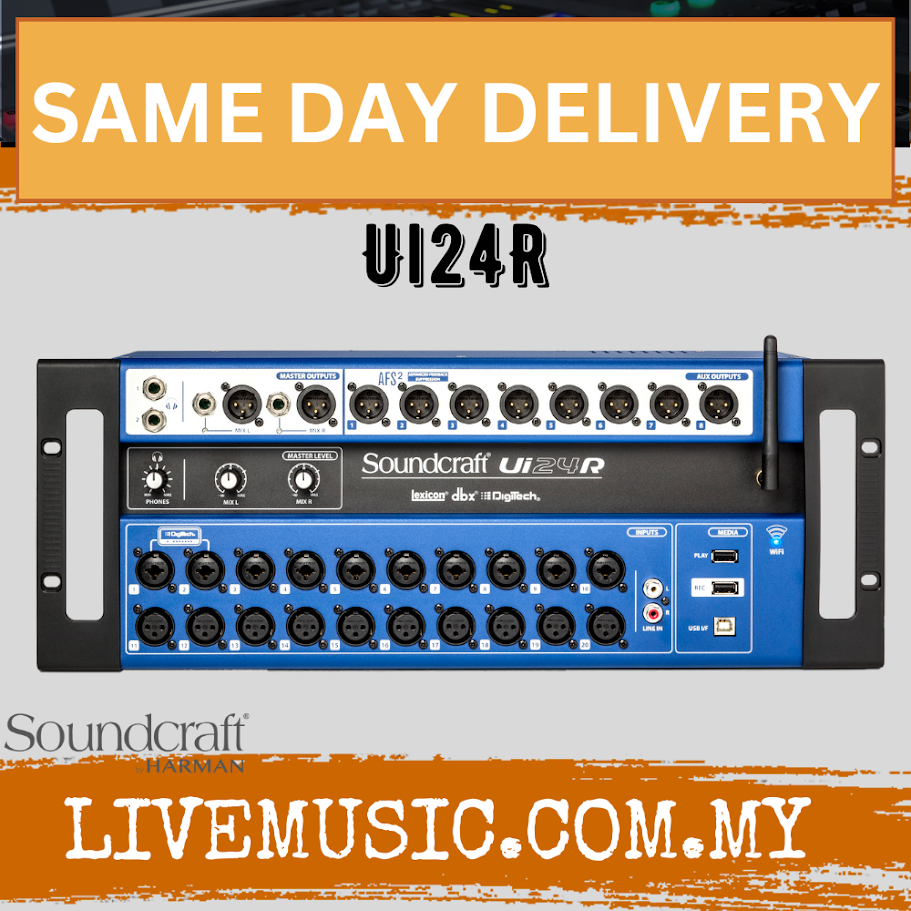

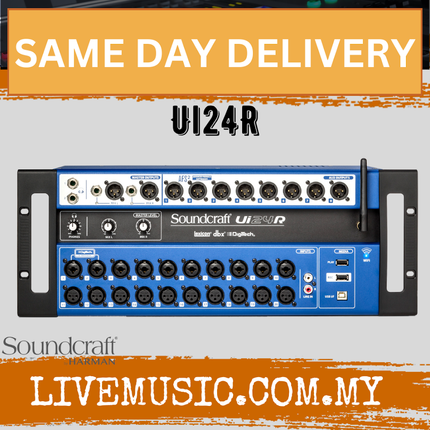

Space-saving 24-channel digital mixer
Built-in dual-band Wi-Fi enables control with any HTML5-capable browser
20 Studer-designed microphone preamps deliver top-notch recordings
Polish your mix with effects processing from Lexicon, dbx, and DigiTech
The dbx AFS2 feedback system eliminates unwanted feedback
Capture your performance to a USB drive or your DAW via built-in multitrack recorder
Built-in audio interface integrates easily into your recording rig
SPECIFICATIONS
Type:Digital Remote-controlled Mixer
Channels:24
Inputs - Mic Preamps:10 x XLR-1/4" combo, 10 x XLR
Phantom Power:Yes
Inputs - Line:1 x stereo RCA
Outputs - Main:2 x XLR, 2 x 1/4"
Busses/Groups:8 x XLR (aux outs)
Data I/O:2 x Ethernet, 1 x HDMI
USB:4 x Type A, 1 x Type B
Computer Connectivity:USB (24 x 24), Ethernet, Wi-Fi
Headphones:2 x 1/4"
EQ Bands:4-band parametric EQ, 31-band graphic EQ
Effects:Lexicon Reverb, Lexicon Delay, DigitTech guitar amp modeling
Signal Processing:dbx compression, dbx AFS2 auto feedback suppression, noise gate, de-esser
Features:Built-in dual-band Wi-Fi, real time frequency analyzer, 24 track recording to USB
Software:Remote control with iOS, Android, Windows, OS X and Linux
Rackmountable:Yes (4U)
Depth:6.8"
Width:19"
Weight:22 lbs.
Dimension Packaging Weight : 7.8 kg
