FEATURES

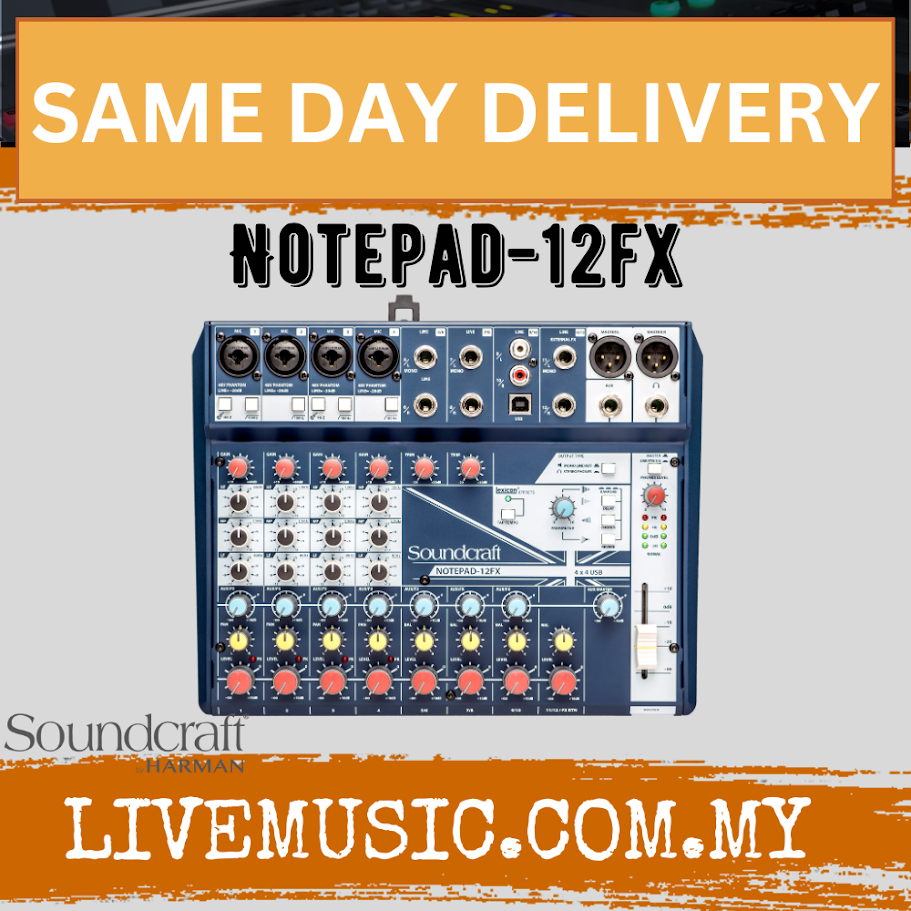

• A compact 12-channel mixer that's great for mixing onstage or recording in your home studio
• Includes 4 microphone preamplifiers with phantom power, 100Hz highpass filters, and 3-band EQs
• Channels 1 and 3 include a hi-Z instrument-level input for running guitar or bass direct
• Line-level inputs on 4 additional channels accommodate keyboards, playback devices, and consumer music gear
• Onboard Lexicon digital effects include delay, chorus, and reverb
• Tap tempo and a parameter adjustment knob let you dial in each effect to your material
• USB provides 4-in/4-out connectivity for recording and audio streaming
• Outputs include flexible monitoring options and balanced XLR main outs

SPECIFICATIONS

• Type:Analog Mixer with USB interface
• Channels:12
• Computer Connectivity:USB (4 x 4)
• Faders:1 x master fader
• Inputs - Mic Preamps:4 x XLR-1/4" combo (mic/line, 2 x Hi-Z)
• Phantom Power:Yes
• Inputs - Line:4 x 1/4" (2 x stereo), 2 x RCA
• Inputs - Other:2 x 1/4" (line/FX return)
• Outputs - Main:2 x XLR (master)
• Aux Sends:1 x 1/4" (Aux/FX)
• Headphones:1 x 1/4"
• USB:1 x Type B
• EQ Bands:3-band EQ
• Effects:Lexicon Delay, Chorus, Reverb
• OS Requirements - Mac:OS X 10.10 or later
• OS Requirements - PC:Windows 7 SP1 or later (with Soundcraft driver)
• Power Source:External power supply
• Height:3"
• Width:10"
• Depth:9"
• Weight:3.5 lbs.

Dimension Packaging Weight : 2.4 kg
