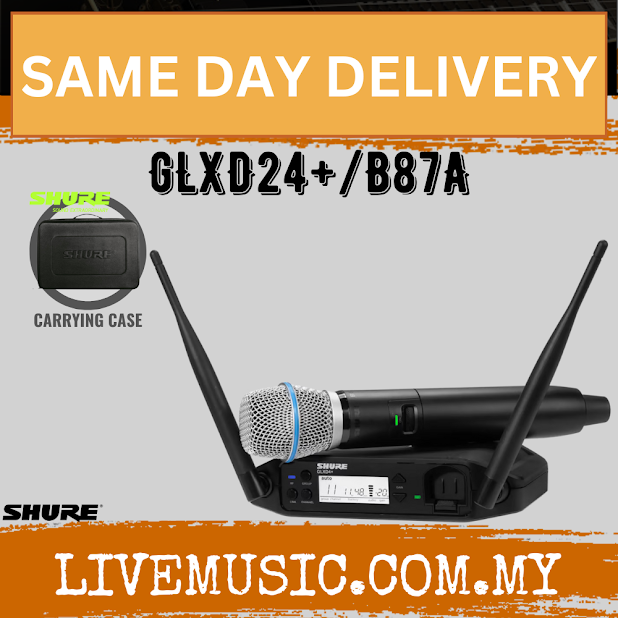

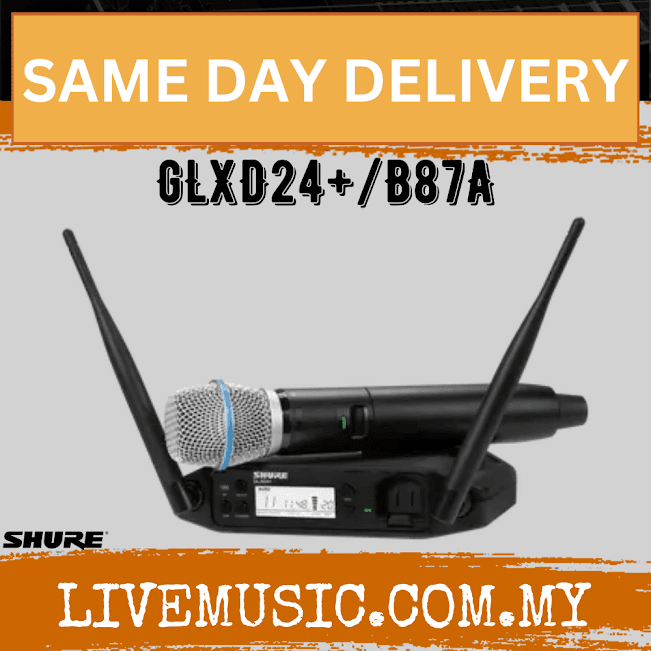

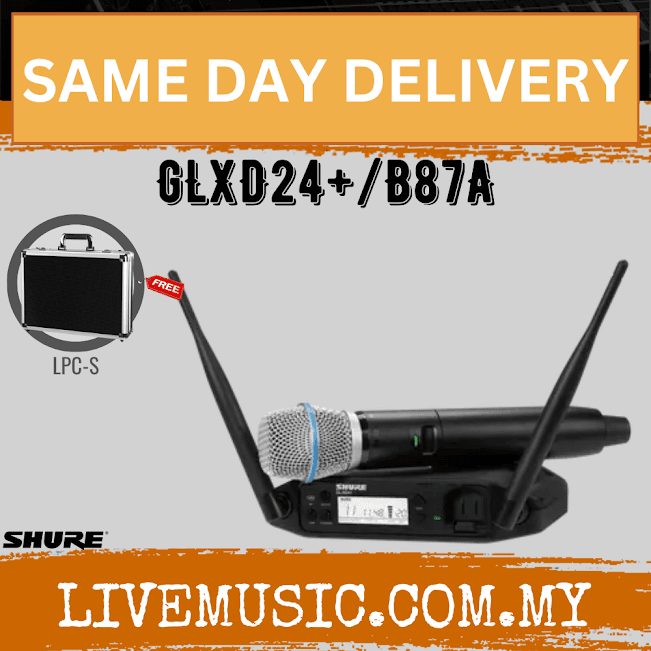

FEATURES
- For Presenters & Performers
- Handheld Microphone Transmitter
- Supercardioid Condenser Mic Capsule
- Portable Tabletop Receiver
- Auto Scans 2.4 and 5.8 GHz Frequencies
- Easy Setup with Auto Pairing
- 208.5 MHz Total Bandwidth
- Fixed Front-Panel Antennas
- Front Panel Charges 12-Hr SB904 Battery
- Expandable to 4 Mic Channels/100' Range
SPECIFICATIONS
SYSTEM
- Wireless Technology
- Digital 2.4 GHz/5.8 GHz
- Included Transmitters
- 1 x Handheld
- Diversity
- True Digital Diversity
- RF Frequency Band
- Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
- RF Bandwidth
- 208.5 MHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 100' / 30.5 m (Line of Sight)
- Max Transmitters per Band
- 8
- Built-In Recorder
- No
- Timecode Support
- No
- Mobile App Compatible
- No
- *As of February, 2023: Check with manufacturer for the most up-to-date compatibility
- Latency
- 4.5 to 8 ms
- Dynamic Range
- 120 dBA
- Encryption
- None
- Modulation
- Proprietary
RECEIVER
- Receiver Type
- Tabletop
- Antenna
- 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
- Number of Audio Channels
- 1
- Audio I/O
- 1 x XLR 3-Pin Male Balanced Mic/Line Output
- 1 x 1/4" TRS Female Balanced Output
- Audio Output Level
- XLR Output:
- +1 dBV
- 1/4" Output:
- +8.5 dBV
- Phantom Power Protection
- On 1/4", XLR Outputs
- Frequency Response
- 20 Hz to 20 kHz (Dependent on Mic)
- Network I/O
- None
- Word Clock I/O
- None
- USB/Lightning Connectivity
- 1 x USB-C Female (Firmware Update)
- Impedance
- XLR Output:
- 100 Ohms (Balanced)
- 1/4" Output:
- 100 Ohms (Balanced)
- 50 Ohms (Unbalanced)
- RF Output Power
- 10 mW (EIRP, Max)
- Spurious
- Rejection: >35 dB
- Power Requirements
- AC/DC Power Adapter
- AC/DC Power Adapter
- 14.5 to 17 VDC at 600 mA (Included)
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz
- Display & Indicators
- 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
- Housing
- ABS
- Operating Temperature
- 32 to 113°F / 0 to 45°C
- Dimensions
- 7.2 x 1.6 x 4.8" / 183 x 40 x 122 mm
- Weight
- 10.9 oz / 310 g
TRANSMITTER
- Transmitter Type
- Handheld
- RF Output Power
- 10 mW (EIRP)
- Audio I/O
- None
- Pad
- None
- Muting
- Off/On Switch
- Auto-Level Control
- No
- Gain Range
- -20 to +40 dB (1 dB Steps)
- Sync Method
- Proprietary
- Antenna
- 1 x External, Fixed (Handheld)
- Power Requirements
- Battery
- Battery Type
- 1 x Shure SB904 (Included, Replaceable)
- Internal Battery Capacity
- 2420 mAh
- Battery Charging Time
- .25 to 3 Hours
- Approx. Battery Life
- 12 Hours (Lithium Rechargeable)
- USB/Lightning I/O
- 1 x USB-C (Charging)
- Display & Indicators
- 1 x LED (Battery Status, Sync)
- Housing
- Metal, Plastic
- Dimensions
- 2 x 9.7 x 1.5" / 51 x 246 x 37 mm
- Weight
- 9.3 oz / 265 g (without Batteries)
MICROPHONE
- Microphone Type
- Handheld
- Color
- Black
- Sound Field
- Mono
- Capsule
- Electret Condenser
- Polar Pattern
- Supercardioid
- Frequency Range
- 50 Hz to 20 kHz
- SNR
- 70.5 dB
- Maximum SPL
- 140 dB SPL
- Impedance
- 100 Ohms
- Sensitivity
- -52.5 dBV/Pa
- Dynamic Range
- 117 dB
